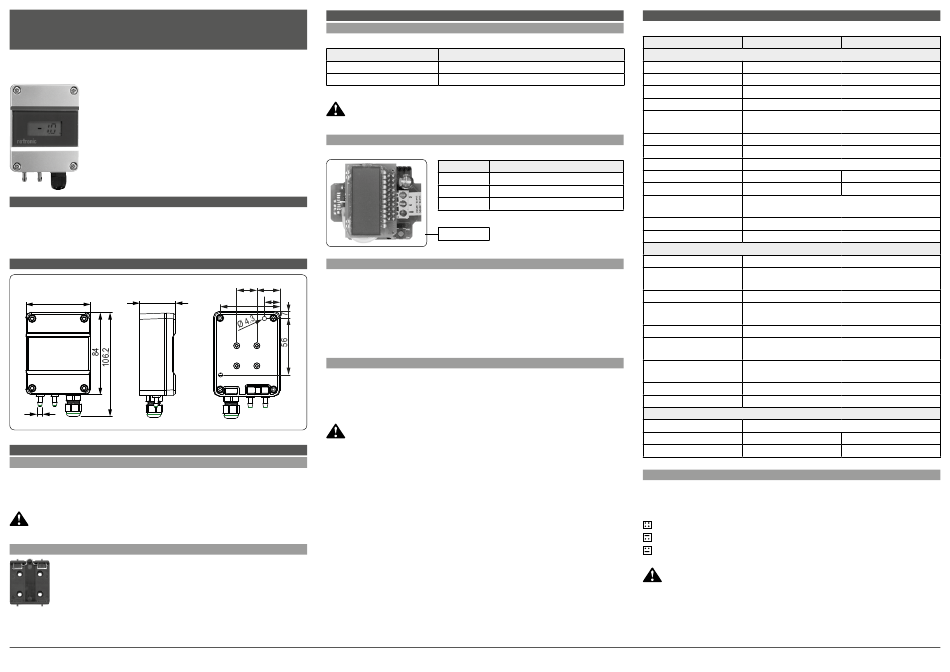

Short Instruction Manual
PF1 differential pressure transmitter
Congratulations on your new state-of-the-art PF1 differential pres-
sure transmitter. Please read these short instructions carefully be-
fore installing the device.
1 GENERAL DESCRIPTION
The PF1 is a transmitter for monitoring and control of differential pressures. These short in-
structions are limited to a description of the main functions and installation of the device. The
detailed instruction manual can be found on the Internet at: www.rotronic.com
2 DIMENSIONS / CONNECTIONS
36.10
66
5
3 MECHANICAL INSTALLATION
3.1 DIFFERENTIAL PRESSURE MEASUREMENT
Tubes with an internal diameter of 4 mm (e.g. AC6001/XX) can be connected. The tubes must
be fastened securely so that they do not move, vibrate or fall off during operation.
Select a suitable installation site where the humidity, temperature and pressure con-
ditions do not influence the differential pressure measurement.
3.2 MOUNTING ON DIN TOP-HAT RAIL
The transmitter can be mounted directly on a TS35 DIN top-hat rail with
the AC5002 mounting kit (order separately). For this, the DIN holders are
screwed directly on to the pre-drilled holes in the transmitter.
English
4 ELECTRICAL INSTALLATION
4.1 SUPPLY VOLTAGE / CURRENT CONSUMPTION
Power supply
12...32 VDC
12..24 VAC 50/60 Hz
Wrong supply voltages and excessively high loading of the outputs can damage the
transmitter.
4.2 TERMINAL ASSIGNMENT
4.3 COMMISSIONING
To attain the highest possible measuring accuracy, proceed as follows:
20 23
1. Install the device as described in the section "Mechanical installation".
15.5
43.5
2. Connect the cables for the power supply as described in the section
"Electrical installation".
3. Switch on the supply voltage.
4. Press the button "ZERO" after 15 seconds after the device is supplied with power.
4.4 PERIODIC CALIBRATION OF THE TRANSMITTER
Both the differential-pressure sensor and the corresponding electronics are very stable and
do not normally need to be changed or calibrated after factory calibration. For maximum ac-
curacy we recommend regular calibration of the device.
When carrying out calibration or adjustment work, make sure you do not touch either
the sensor or the compressed air tubes.
Current consumption
<300 mA
<300 mA
Terminal Description
1-Uv Power supply +
2-Out Analog output
3-GND Power supply / Signal ground
Zero
5 TECHNICAL DATA
Version PF135 analog 3-wire
General
Parameter Differential pressure
Housing material ABS
IP protection IP65
Mounting position Wall mounting, any mounting position
Dimensions 84 x 66 x 36 mm
Incl. steel conduit screw fitting: 105 x 66 x 36 mm
Weight 100 g
Display LCD, 4 digits (optional)
Electrical connections Screw terminals inside, M12 cable gland
Power supply 13...32 VDC
Current consumption > 10 mA (RL>4.7 kΩ)
Range of application / -10...+50 °C / 0...90 %RH
Storage conditions -20...+70 °C / 0...90 %RH
CE / EMC compatibility EMC Directive 2014/30/EU
Fire protection class Corresponds to UL94-HB
Differential pressure measurement
Measurement principle MEMS diaphragm sensor
Measurement ranges -25...+25 Pa / -50...+50 Pa / -100...+100 Pa /
-250...+250 Pa / -500...+500 Pa
Medium Air and dry non-aggressive gases
±1.5 % full scale measurement range ≤ 50 Pa
Accuracy * at 23 °C ±3 K
±1.0 % full scale measurement range > 50 Pa
Long-term stability 0.1 %FS/y
≤ ±100 Pa => 1 kPa
Pressure resistance
≤ ±500 Pa => 15 kPa
≤ ±100 Pa => 15 kPa
Burst pressure
≤ ±500 Pa => 20 kPa
Zero adjustment By button
Pressure connections Tubing connector Ø 5.0 mm x 10 mm
Outputs
Analog outputs 1
Analog output type 0...10 V
Permissible load > 4.7 kΩ
5.1 SCALING OF THE MEASUREMENT RANGE
* The accuracy can only be guaranteed with the basic setting, not with changes made by
the jumper.
Measurement range = Range on delivery (e.g. -100...+100 Pa)
Measurement range = Range on delivery / 2 (e.g. -100...+100 Pa / 2 = -50...+50 Pa)
Measurement range = Range on delivery x 2 (e.g. -100...+100 Pa x 2 = -200...+200 Pa)
Only applies to measurement ranges above 100 Pa.
Detailed documentation can be found on the Internet at: www.rotronic.com.
PF120 analog 2-wire
10...32 VDC
0...20 mA
4...20 mA
< 500 Ω
