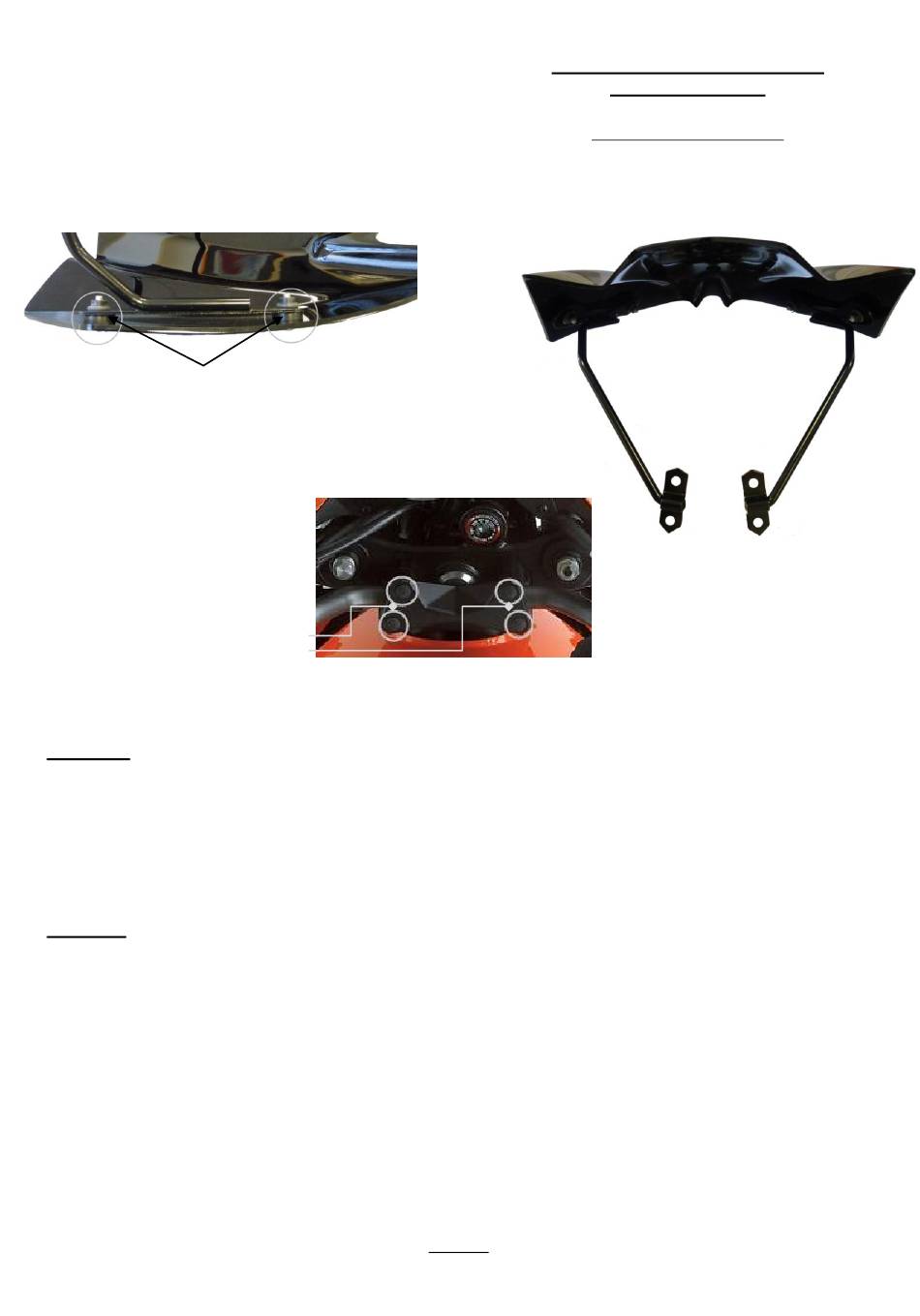

Rubber spacers location
Photo 2
Screws to remove and replace
Fitting kit
- 4 rubber inserts
- 4 BHC 5×20 screws (small head)
- 2 fitting brackets
- 4 steel spacers Ø8 L: 10mm
Assembly
- Place the rubber inserts on the fitting brackets.
- Fit them on the nose screen thanks to the BHC 5x20 screws and plastic washers, by inserting the rubber
spacers between the nose screen and the fitting bracket (see photo 1).
- Remove the 4 screws of the handlebar holder. Place the 4 steel spacers into the holes of the original screw
heads (see picture 2).
- Place the whole nose screen / fitting brackets on the handlebar holder and fit the unit by using the
provided BHc 8x40 screws.
* Accessories gone up on the motorbike will not be any more considered as new and will be neither retaken nor exchanged.
* Ermax accessories are foreseen for original equipments. They will not be guaranteed if they are used in others conditions.
* Due to vehicles made tolerances, beyond our control, some Ermax products might need adjustings to fit.
Z 750 N LOOK Z 1000 2007 → ∞
- 4 Ø5 plastic washers
- 4 plastic spacers Ø5 L: 5mm
- 4 BHC 8×40 screws
« CAUTION »
FITTING INSTRUCTIONS
"NOSE SCREEN"
Estimated fitting time : 15 mn
