OPERATION
LED lights
Red LED -ON- when lit, it indicates that the station
is plugged in the mains.
Green LED -READY- when lit, it indicates that the
system is ready and correctly set for working.
The green led light is on after a few seconds, is the
time needed to carry on the self-checking system.
The green light is pulsing when the tool is in sleep
mode.
If the green led is not lit, the reason why, will be one
of the following:
1. The tool is not plugged in.
2. The maximum available power has been
exceeded for too long - e.g. in a very thick
soldering or desoldering at the high repetition
rates.
3. The heating element has a short circuit or an
open circuit.
4. When an AC 2600 console is connected to
the station.
5. Any other trouble preventing the system from
working properly.
If any of the above mentioned causes is corrected,
the station will start working automatically, except
if there is an excess in an energy supply. In this
case, the station has to be switched off and
restarted.
When pressing the button of the desoldering iron
handle, one of the two leds in the area marked
SUCTION will light up:
Green light -SUCTION- indicates the correct
functioning of the desoldering iron.
Red light -SUCTION- indicates a blockade
within the vacuum circuit.
This can be caused by the following:
- The tip of the desoldering iron is blocked.
- The solder tin deposit is full.
- The filter of the desoldering iron is dirty.
- The station's external desoldering air filter is
dirty.
Only for users of AC 2600 console ref. 2600000.
If you lock the working temperature thanks to the
console, the green LED -READY- will remain on
while the dial is set at the locked temperature.
If the dial is not set at the locked temperature,
the green LED -READY- will be blinking. The
farther the dial will be set from the locked
temperature the slower the blinking pace will
be.

SLEEP FUNCTION

Tool in sleep mode
One of the Series Advanced features is that
when the tool is placed in the holder, the
temperature at the tip drops automatically to
the sleep temperature (sleep). This function
i s o n l y p o s s i b l e b e c a u s e o f t h e q u i c k
response time which does not make the user
realise the temperature rise to reach the
s e l e c t e d t e m p e r a t u r e . I n t h i s w a y , t h e
o x i d a t i o n o f t h e t i n n i n g o f t h e t i p i s
considerably reduced and tip life is extended
2 or even 3 times.
To indicate that the tool is in sleep-mode, the
green led starts pulsing.
These parameters can be modified using the
AC 2600 console Ref. 2600000.
In order to take full advantage of the sleep
function and as a security measure, it is
necessary to place the tool in the stand
when it is not being used.
When connecting an old version solder stand, it
may happen that the sleep function does not work.
To resolve this problem, you should make a bridge
between pins number 3 and 5 from the aerial
connector of the cable of the stand, that plugs in
the station.

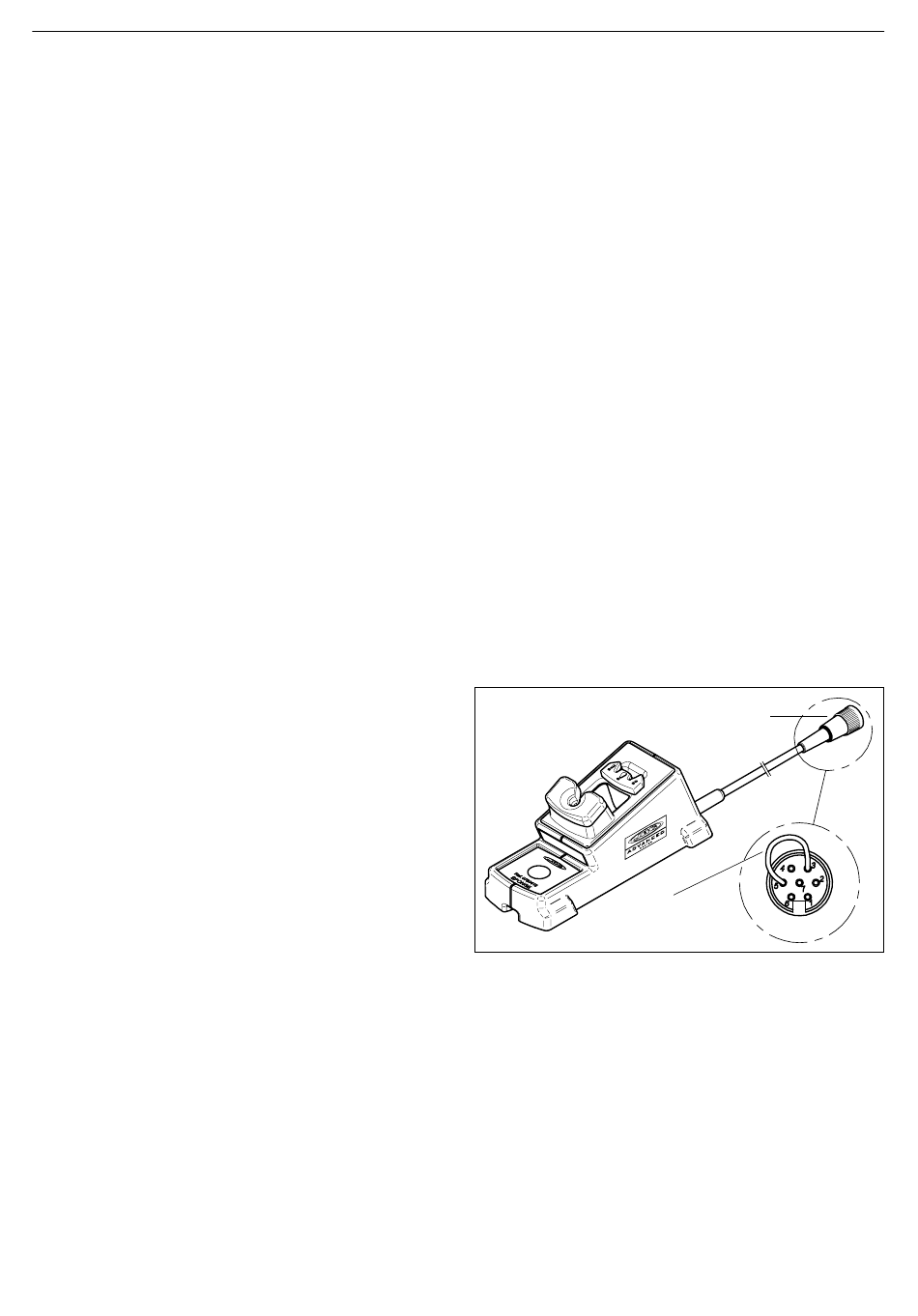

Bridge between
pin number 3 & 5
3
ENGLISH
Aerial connector
