1.3 Replacement Parts
See Figures 1.1 and 1.2 below.
1.3.1 Additional Components Required
•
Sheet metal screws to match number of joints
•
Variable speed control, switch, electrical wire, electrical boxes,
wall plate as required. See Section 3.1 Electrical Requirements on
page 12 for speed control or switch requirements.
•
Optional 3.25" x 10" x 6" diameter right angle boot (for adapting
to wall stack)
•
Optional 3.25" x 10" rectangular wall stack and S drive cleats
when required
FAN ASSEMBLY
#HTK-INT-101
REPLACEMENT PARTS (not shown)
6" Insulated Flex Pipe
Band Clamp

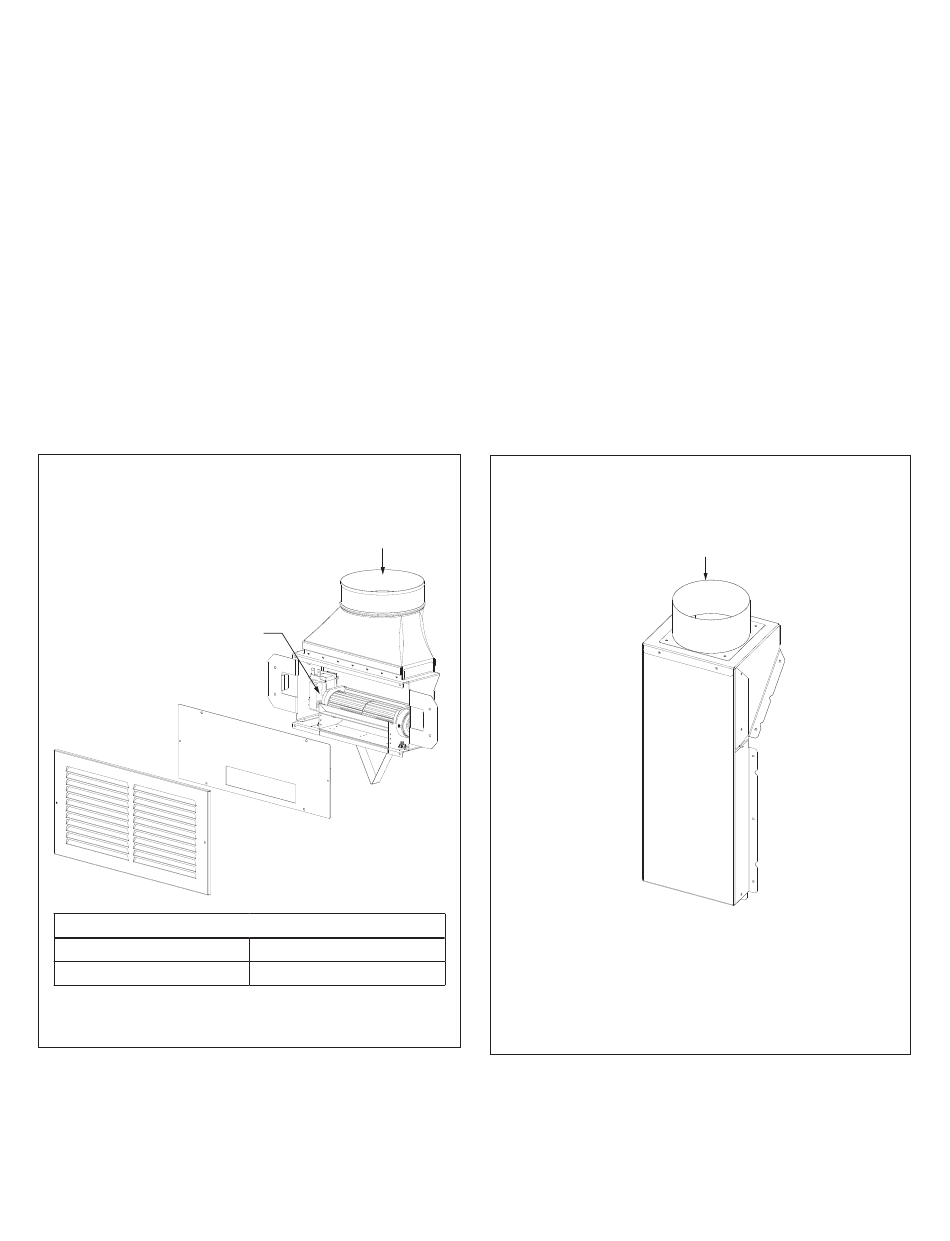

Figure 1.1, Kit Components
4
3.25" x 10" x 6" BOOT
#HTK-INT-104
FAN COVER PLATE
#HTK-INT-102
AIR GRILLE
#HTK-INT-103
#HTK-INT-105
#HTK-INT-106
Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces
1.3.2 Heat Transfer Kit Air Chute
•
The HTK air chute is required when installing a #HTK-INT.
•
(1) air chute is needed per heat transfer kit.
•
Order model specific air chute. Yours may look different than
what is shown in Figure 1.2.
HTK 6" COLLAR
HTK AIR CHUTE (required for #HTK-INT)
Figure 1.2, HTK Air Chute and 6" Collar
#HTK-INT-107
Heat Transfer Kit #HTK-INT R.7
