ASROCK AM2NF4G-SATA2 Guide D'installation Rapide page 2

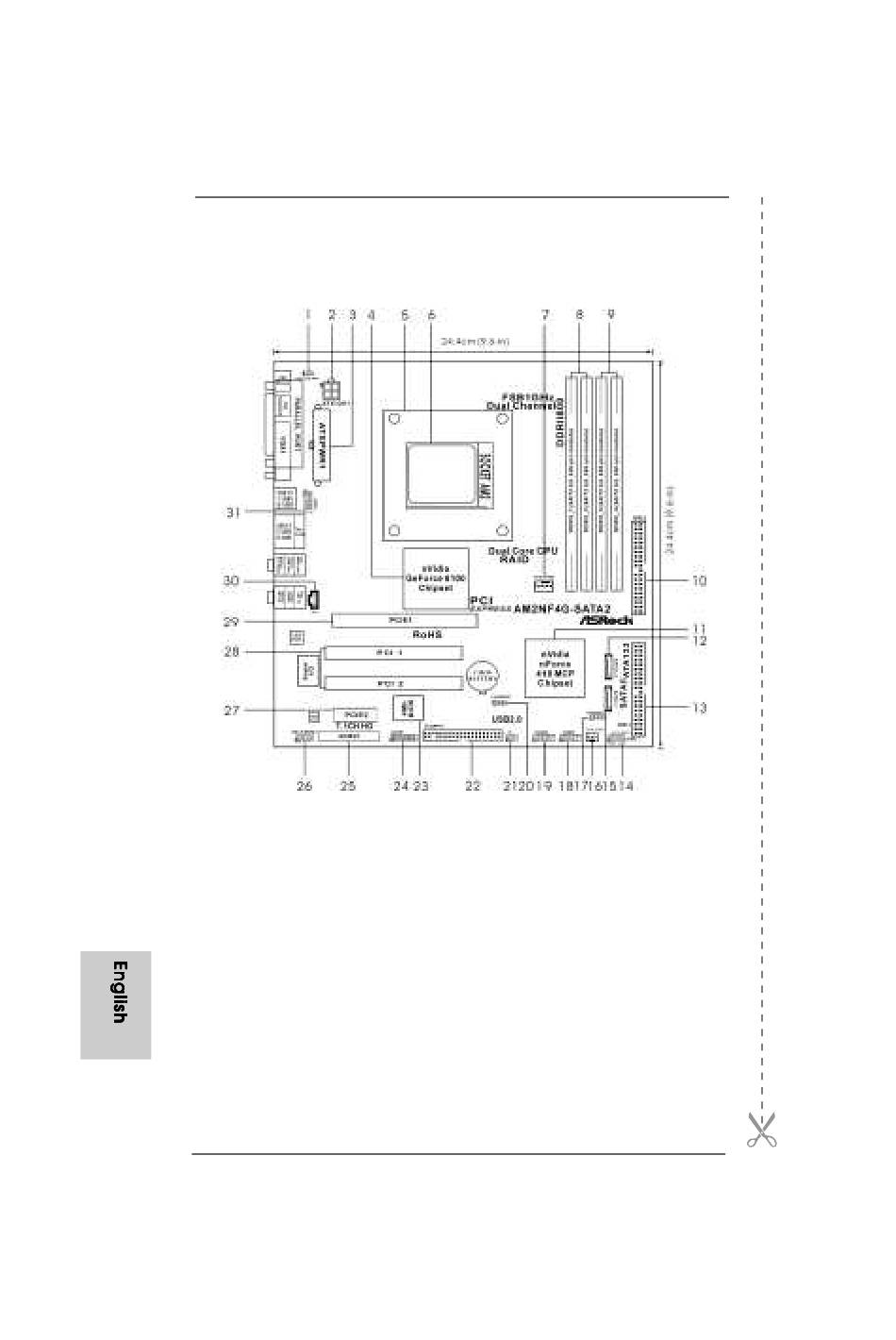

Motherboard L Motherboard Layout Motherboard L
Motherboard L Motherboard L
1 PS2_USB_PW1 Jumper
2 ATX 12V Power Connector (ATX12V1)
3 ATX Power Connector (ATXPWR1)
4 North Bridge Controller
5 CPU Heatsink Retention Module
6 AM2 940-Pin CPU Socket
7 CPU Fan Connector (CPU_FAN2)
8 2 x 240-pin DDRII DIMM Slots
(Dual Channel A: DDRII_1, DDRII_2; Yellow)
9 2 x 240-pin DDRII DIMM Slots
(Dual Channel B: DDRII_3, DDRII_4; Orange)
10 Secondary IDE Connector (IDE2, Black)
11 South Bridge Controller
12 Secondary Serial ATAII Connector (SATAII_2, red) 29
13 Primary IDE Connector (IDE1, Blue)
14 System Panel Header (PANEL1)
15 Primary Serial ATAII Connector (SATAII_1, red)
2 2 2 2 2
ASRock AM2NF4G-SATA2 Motherboard
ayout ayout ayout
ayout
16 Chassis Fan Connector (CHA_FAN1)
17 Chassis Speaker Header (SPEAKER 1)
18 USB 2.0 Header (USB67, Blue)
19 USB 2.0 Header (USB45, Blue)
20 Clear CMOS Jumper (CLRCMOS1)
21 Infrared Module Header (IR1)
22 Floppy Connector (FLOPPY1)
23 Flash Memory
24 Game Port Header (GAME1)
25 HDMR Slot (HDMR1)
26 Front Panel Audio Header (HD_AUDIO1)
27 PCI Express x 1 Slot (PCIE2)
28 2 x PCI Slots (PCI1- 2)
PCI Express x 16 Slot (PCIE1)
30 Internal Audio Connector: CD1 (Black)
31 Serial Port Connector (COM1)
