200MICROP01
ENGLISH
DESCRIPTION
200MICROP01 is a magnetic door switch
compatible with all Pego electronics and
electronic panels with low voltage digital
input. The simplicity of installation and its
technology make it the ideal accessory for
cold room management.
MAIN FEATURES
• Contact closed when the magnet is near the
sensor (door closed).
• No calibration required.
• The cable exit side can be established during
installation, by turning the bottom by 180°.
MODELS
PEGO CODE
DESCRIPTION
Magnetic door switch with
200MICROP01
N.O. contact
TECHNICAL DATA
Electrical characteristics
Switched power
10W
200 VDC
Switched voltage
140 VAC RMS
500mA DC
Switched current
500mA AC RMS
Number of cycles
1.000.000.000 (1V, 10mA)
Environment conditions
-20T90 °C
Operating
humidity < 90% Rel. Hum. not
temperature
condensing
-20T90 °C
Storage temperature
humidity < 90% Rel. Hum. not
condensing
Environments with strong vibrations
or impacts; aggressive, polluted or
Unsuitable operating
corrosive atmospheres, exposure to
environments
direct solar radiation, explosive
atmospheres or flammable gas.
General characteristics
PG7, max cable diameter = 7mm
Cable entry
Right or left side entry, rotating the
bottom.
Fixed screw terminals for cables with
Electrical connection
cross-sections from 0.2 to 1.5mm
Type of contact
N.O.
Dimensional, insulation and mechanical characteristics
74x48x40mm (sensor)
Dimensions
44x15x8mm (magnet)
Front protection
IP65
rating
Installation
With supplied screws
Casing
Plastic body in PC + ABS UL94 V-0
Rév.01-19
ASSEMBLY INSTRUCTIONS
Open the door switch by unscrewing the two
screws on the back of the sensor to access the
board. Pass the cable through the PG and
connect the two wires to the terminal.
Close the sensor taking care to position the
bottom so as to have the cable outlet on the
desired side and tighten the two screws on the
back.
The door switch can be fixed to the wall using
the long screws provided. The magnet is
equipped with a double-sided adhesive, but it is
advisable to fix it to the door using also screws. It
is important that the door switch and the
magnet do not come into direct contact when
the door is closed; this to avoid shocks that could
damage them over time.
NB: The distance (D) between the magnet and
the sensor must be between 4mm and 7mm.
It is advisable to mount the door switch as high
as possible; follow the examples below.
PROBLEMS AND SOLUTIONS
PROBLEM
• The contact is closed when the
magnet is near the sensor (door
Operation
closed). Invert the operating logic
is reversed
of the electronic control input to
which it is connected.
When the door
• Excessive distance between the
is closed the
sensor and the magnet.
plant does not
• Check the electrical connections.
restart
1 = door side
2 = above the door
GENERAL INFORMATION
2
PEGO S.r.l. does not accept responsibility for any loss of data or information, costs of goods or substitute services,
damages to objects, persons or animals, lost sales or profits, interruption of activities, any direct, indirect, accidental,
property, insured, punitive, special or consequential damage caused in any way, be it contractual, extra-contractual
or due to negligence or other responsibility resulting from the use of the product or its installation. The guarantee
automatically becomes invalid in the case of poor functioning due to tampering, impact or inadequate installation. It
is mandatory to observe all instructions in this manual and the operating conditions of the device. PEGO S.r.l. does
not accept responsibility for any inaccuracies which may be present in this manual in the case that these are due to
printing or transcription errors and reserves the right to make modifications to its products which it deems
necessary or appropriate, without prejudicing the products essential characteristics.

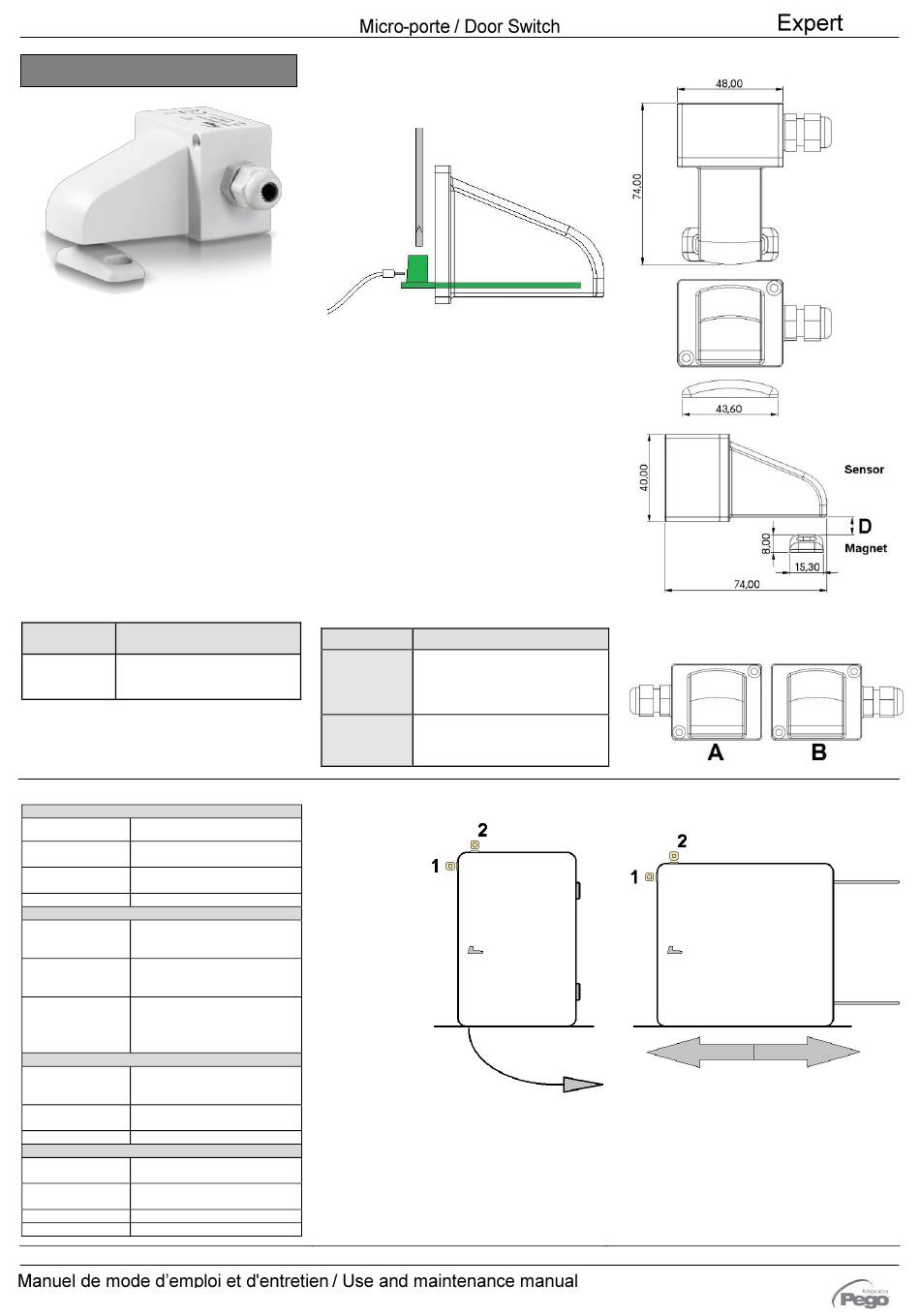

DIMENSIONS
MOUNTING VARIATIONS
SOLUTIONS
INSTALLATION EXAMPLES
LINE
