Adjust the
3 clips
2.2 DOSING
89
89 litres
For Maintenance and Regulations, refer to page 6
03/2016
Align with
the hinge
fig.3
fig.4
fig.6
fig.7
fig.8
fig.9

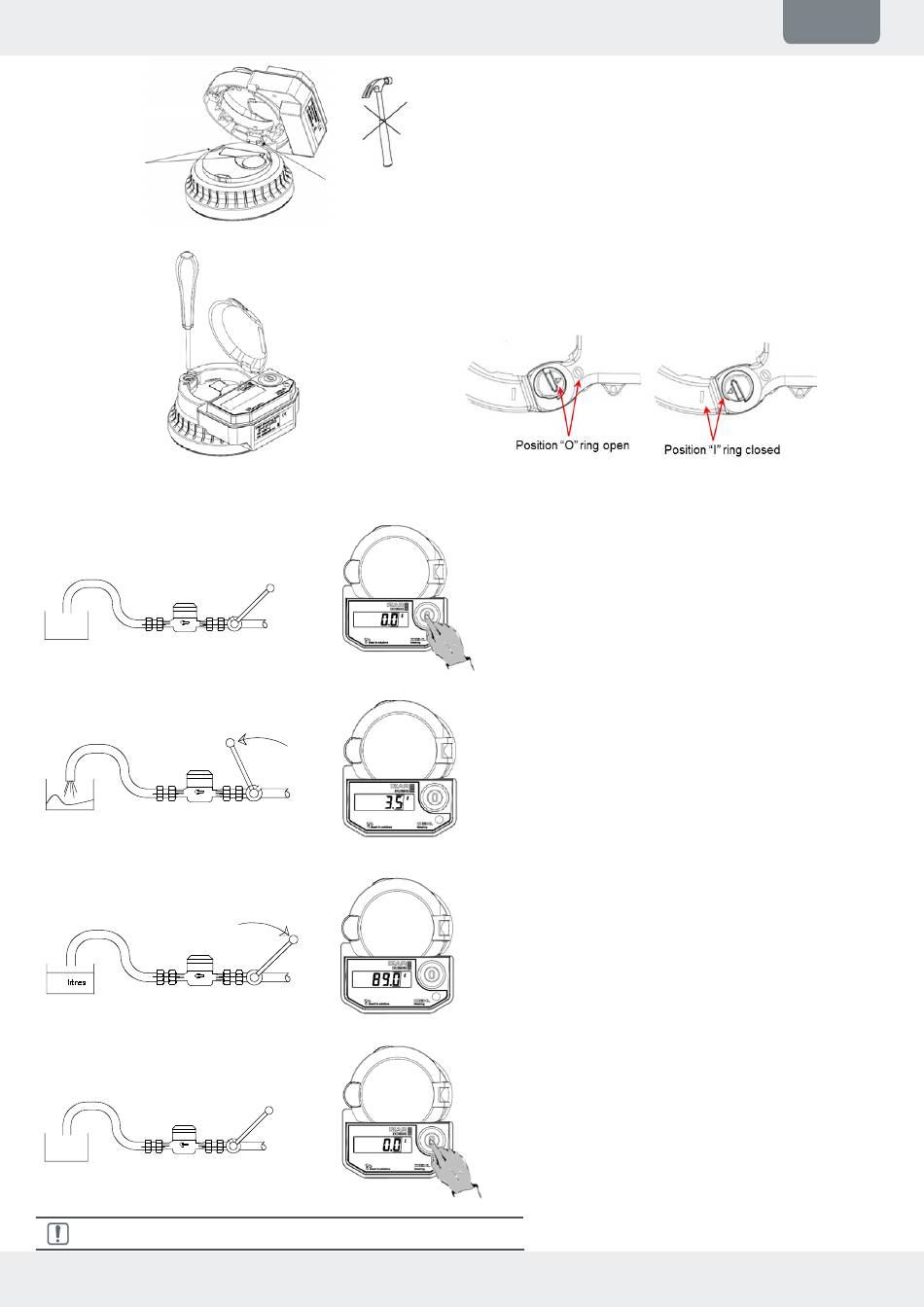

3) Press the ring onto the register with both hands
until it clicks into place. This is an electronic com-
ponent and should be handled with care.
If the above clipping operation is done properly, the
display starts working. If not, check the clipping.
4) Lock IZAR DOSING by tightening the cam a
quarter tour into position « I ».
The installation is done.
1) Press the button to reset the index.
2) Open the valve slowly to avoid water
hammer effects: IZAR DOSING register
begins metering.
3) When the desired volume is reached,
close the valve.
4) Do not forget to reset the register
before carrying out a new dosing.
English
fig.5
IZAR DOSING | 3
