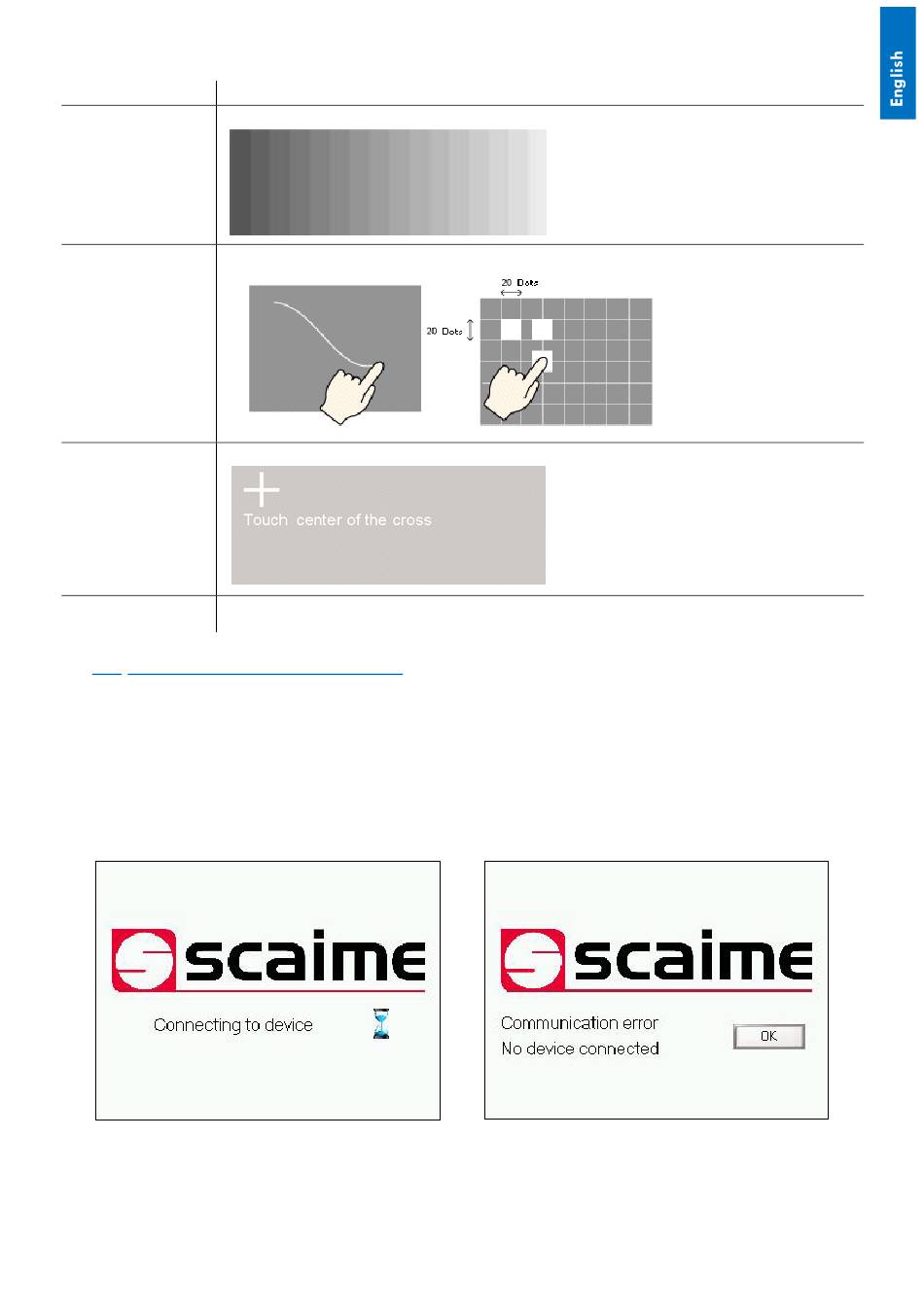

8.2.6 Maintenance menu

Menu Input Action
Check the drawing function. Confirms whether the liquid crystal display (LCD) displays correctly
Check Pattern
Touch panel check. Checks that the touched area lights up correctly.
Check Touch Panel
Correct an analog touch panel. Continue touching until the crosshatch moves or disappears.
Calibration
Check com Check the send and receive lines of network communication
8.3 Start-up screen (Online mode)
•
At first Power-On, eNodTouch is set to manage one eNod4 at the address 1, the connection screen is displayed while
eNodTouch try to communicate with connected eNod4 device.
•
Then a redirection screen appears during 3 seconds for a redirection to a main screen if the communication is established
between eNodTouch and eNod4 communication or an error screen if eNodTouch does not manage to connect to the
eNod.
•
If there is no eNod4 connected or if the display unit cannot communicate with eNod4 device, a communication error
screen appears. In this case, check the wiring between eNodTouch and eNod4 (§ Electrical Powering) and check that the
communication parameters of eNodTouch and eNod4 are correct (§Peripheral – Device PLC Settings).
Connection screen
Quick Start Guide SCAIME:
Communication error screen
