HOW TO ASSEMBLE THE FAN GRILL
• To assemble the safety grill and blade assembly, remove the
spinner(2) (by turning it clockwise), then locking nut(4) (by
turning it anticlockwise) from the motor spindle.
• Place the back safety grill(5) into position. Ensure the safety grill
fits onto the locating lugs(Fig.1). If this is done correctly, the safety
grill's handle will be at the top.
• Fix the safety grill(5) into position by replacing the locking nut(4)
tightly by hand(Fig.1). Do not force the locking nut.
• The groove in the centre of the fan blade aligns with a T-bar on
the motor spindle to ensure correct positioning.
• Fix the blade in to place by gently hand tightening the spineer(2)
(Fig.2) anticlockwise onto the end of the motor spindle. The
spinner is self-tightening do not force it.
• Lift out all locking clips on the front safety grill(1)(Fig 3).
• Place the safety grill(1) into position and secure it by fastening
the clips over the outer rim. The screw and nut at the bottom of
the grill must be fitted(Fig.4).

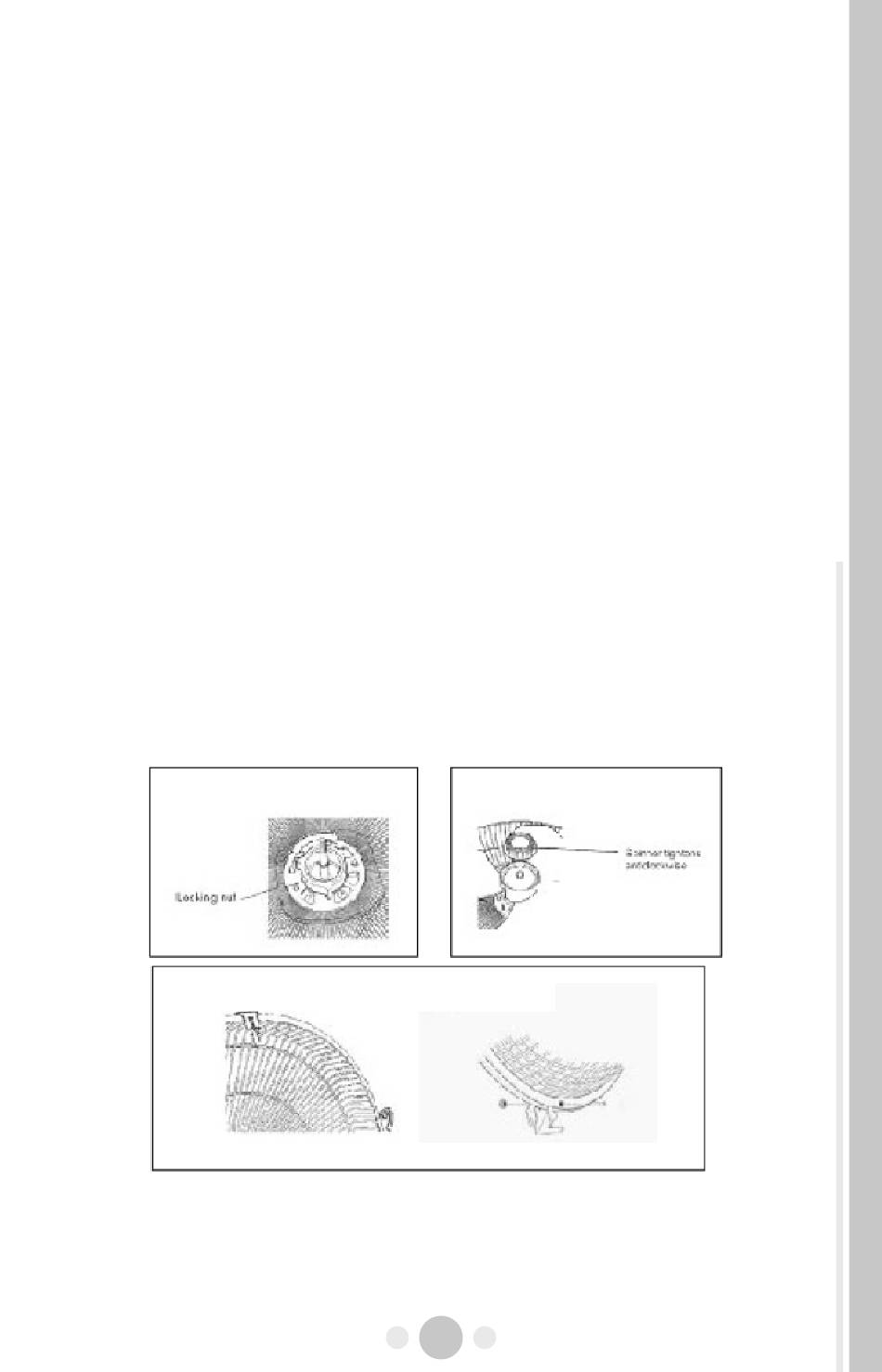

Fig.1
Fig.3
Fig.2
Fig.4
