NOTE:
The following instructions explain the mounting procedures for the CBE-1000 external blower. Refer to your hood's
installation manual for instructions on preparing the hood for use with the external blower.
The mounting location of your external blower will impact the noise levels. Plan your installation accordingly.

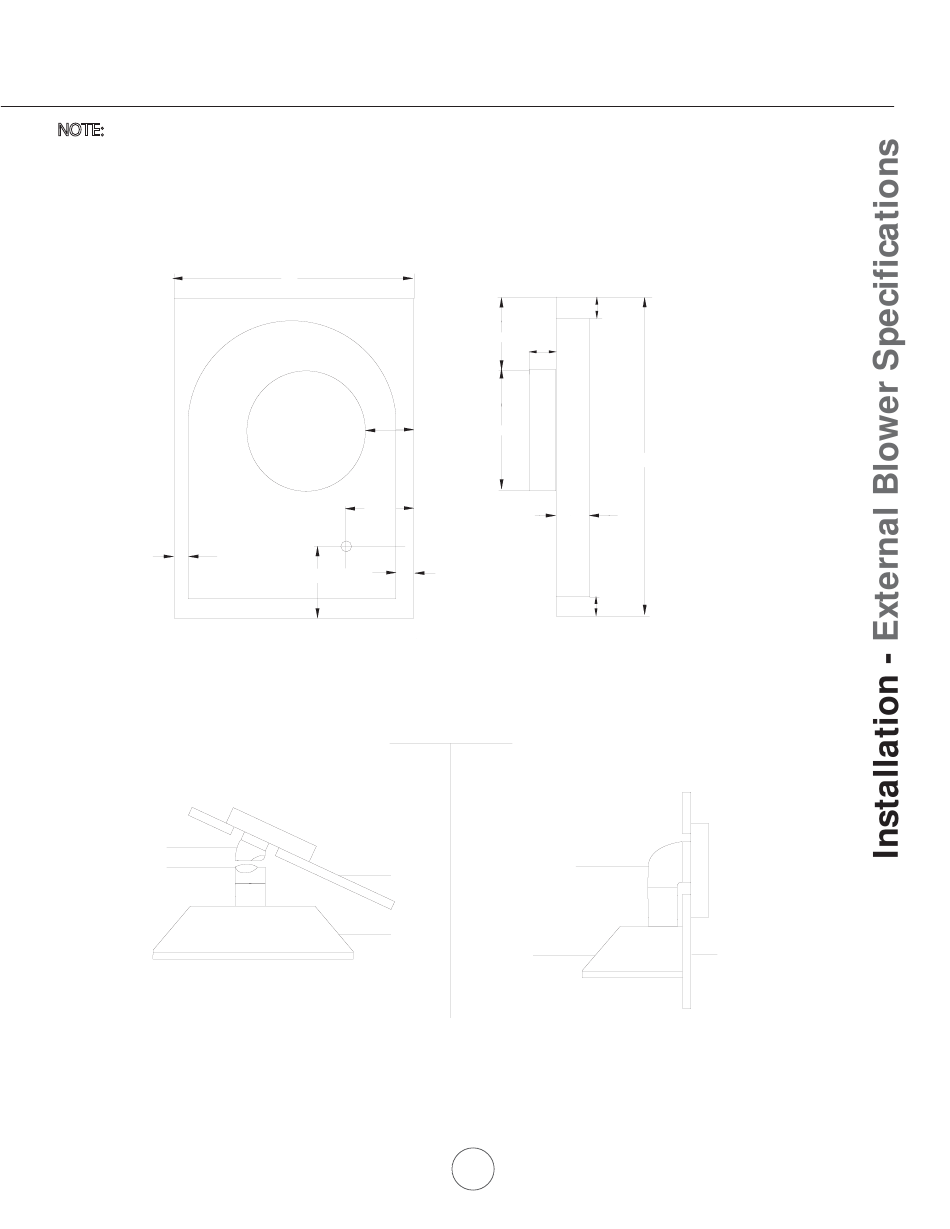

Fig-5
24"
3"
8"
4"
5 5/8"
10 1/4"
30"
7 1/2"
7 1/8"
2"
1 5/8"
8"
2 3/4"
Fig-1
TYPICAL INSTALLATION
ROOF MOUNT
OUTSIDE WALL MOUN T
10" Elbow
10" Duct
10" Elbow
Roof
Hood
Hood
Out s ide Wall
Recommended for use only over conventional domestic gas and electric ranges.
2
