MOUNTING

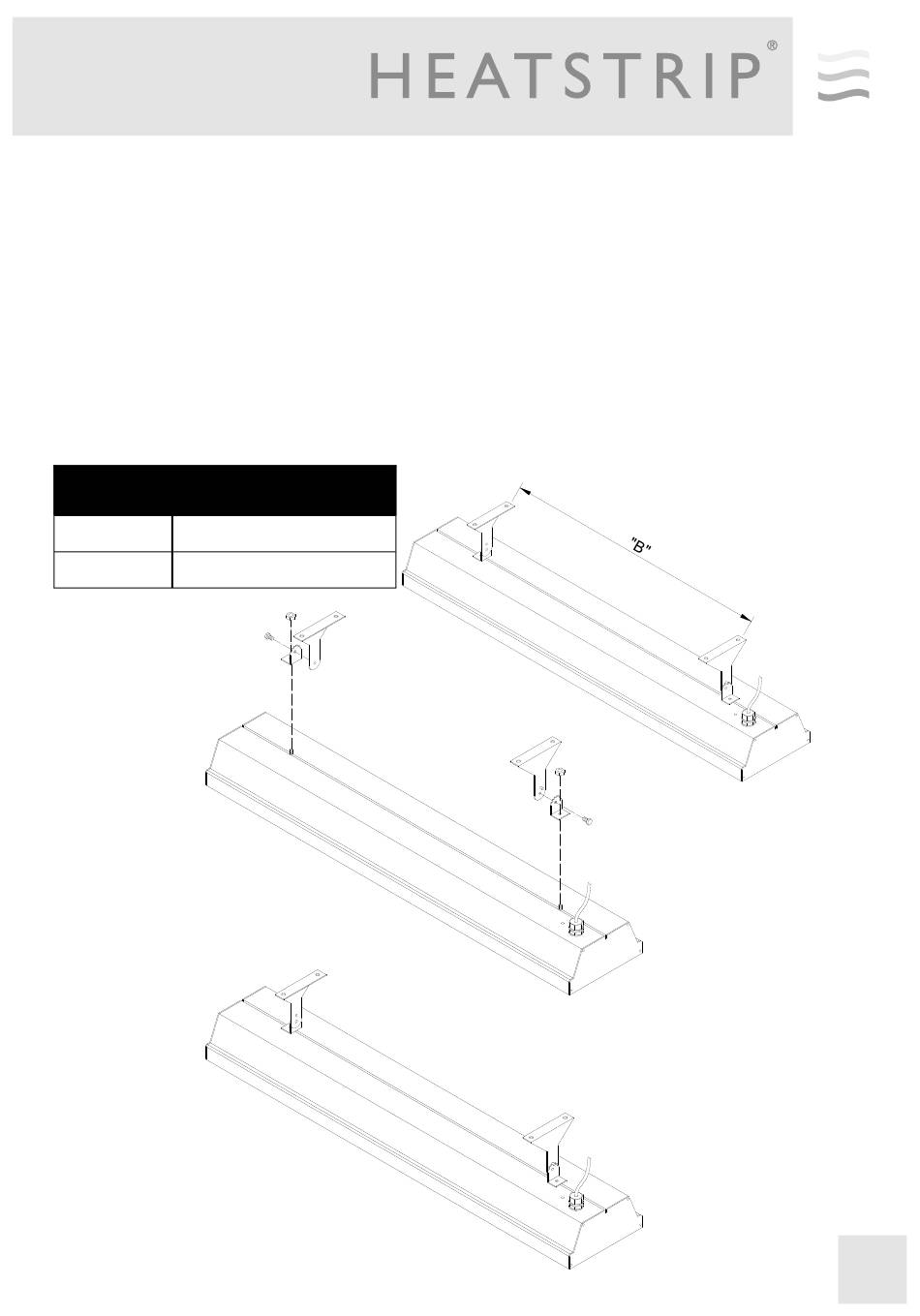

Fix the two mounting brackets to the ceiling or wall in the desired location (refer minimum bracket centre chart).
Make sure the method of fixing (bolts or screws) will be more than strong enough to support weight of heater
allowing for strong winds and other conditions.
Fix the L brackets to the threaded connectors in the required locations on rear of heater to match the centres of
the mounting brackets.
Lift heater into position and secure the mounting brackets to the L brackets using the screws provided.
Locate the C cutout on the L bracket onto the stud in the mounting bracket so you achieve either horizontal or
angle mounting position as required.
Tighten all screws/bolts/nuts.
NOTE: the standard bracket allows for normal or angle mounting of the heater and is suitable for ceiling or wall
mounting.
MODEL
MINIMUM DISTANCE (mm)
THX2400
THX3600
"B"
400
600
