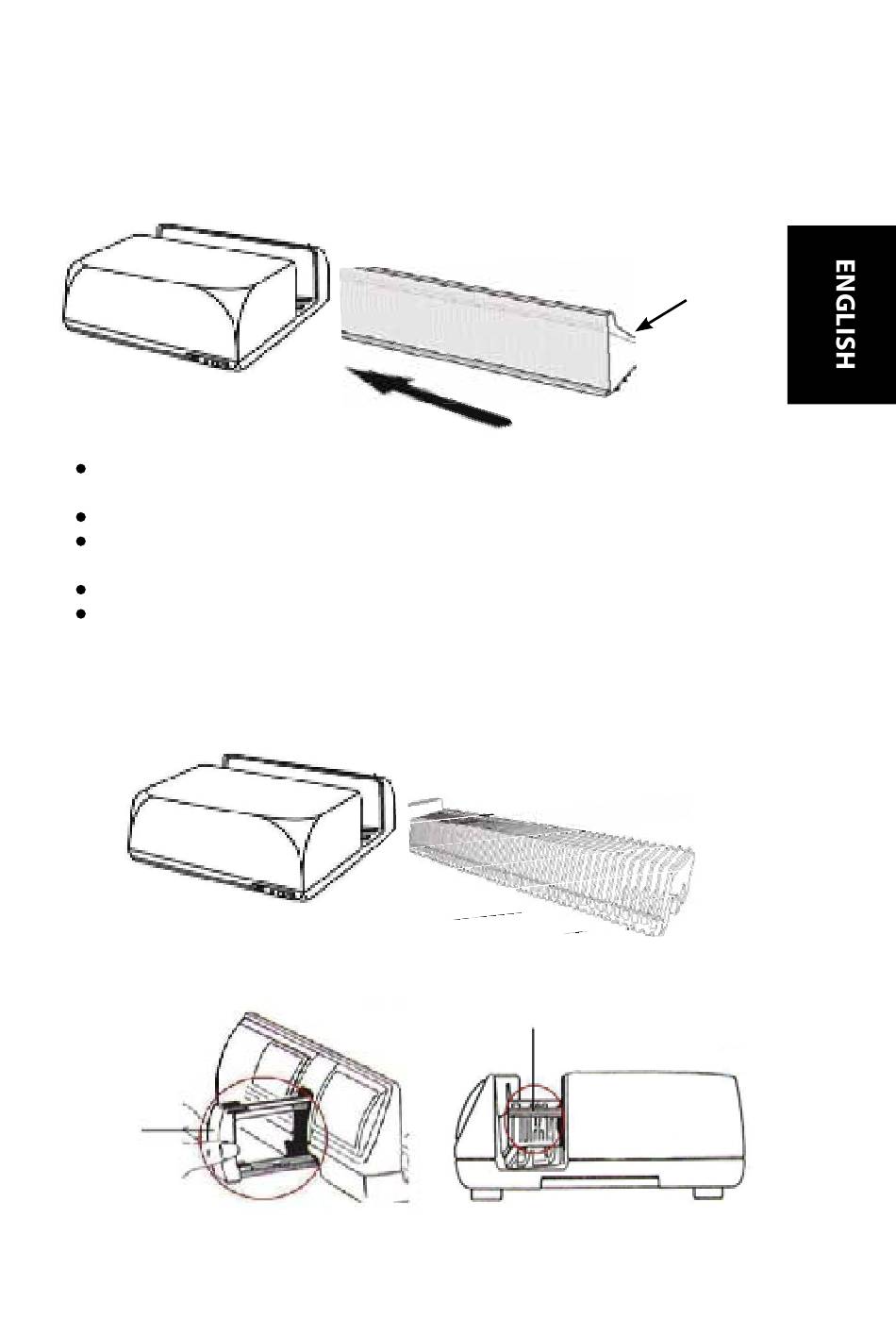

Turn the slide tray around so the numbers face the front of the device, before inserting
Universal Magazine
NOTE:
Use only Universal Magazines with the DIN 108 label. Other magazines may
•
result in problems and VOIDing the warranty.
Pull out the slide transport arm fully.
•
Gently press the orange adapter on the slide transport arm. Move the
•
adapter on the slide transport arm to the front until it snaps in.
Push the slide transport arm back into the scanner.
•
Load the magazine from the back in the respective guiding rails of the maga-
•
zine tunnel until it hits the slide transport arm.
c. Place the slide magazine into the scanner from the left side until it touches
the slide transport arm and the magazine "clicks" into place.
Slide
Transport
Arm
Universal Magazine
Slide order numbers printed on top of magazine on the
right hand side of magazine towards the front of the
scanner when loading.
Numbering
Numbering
Slide Holder
