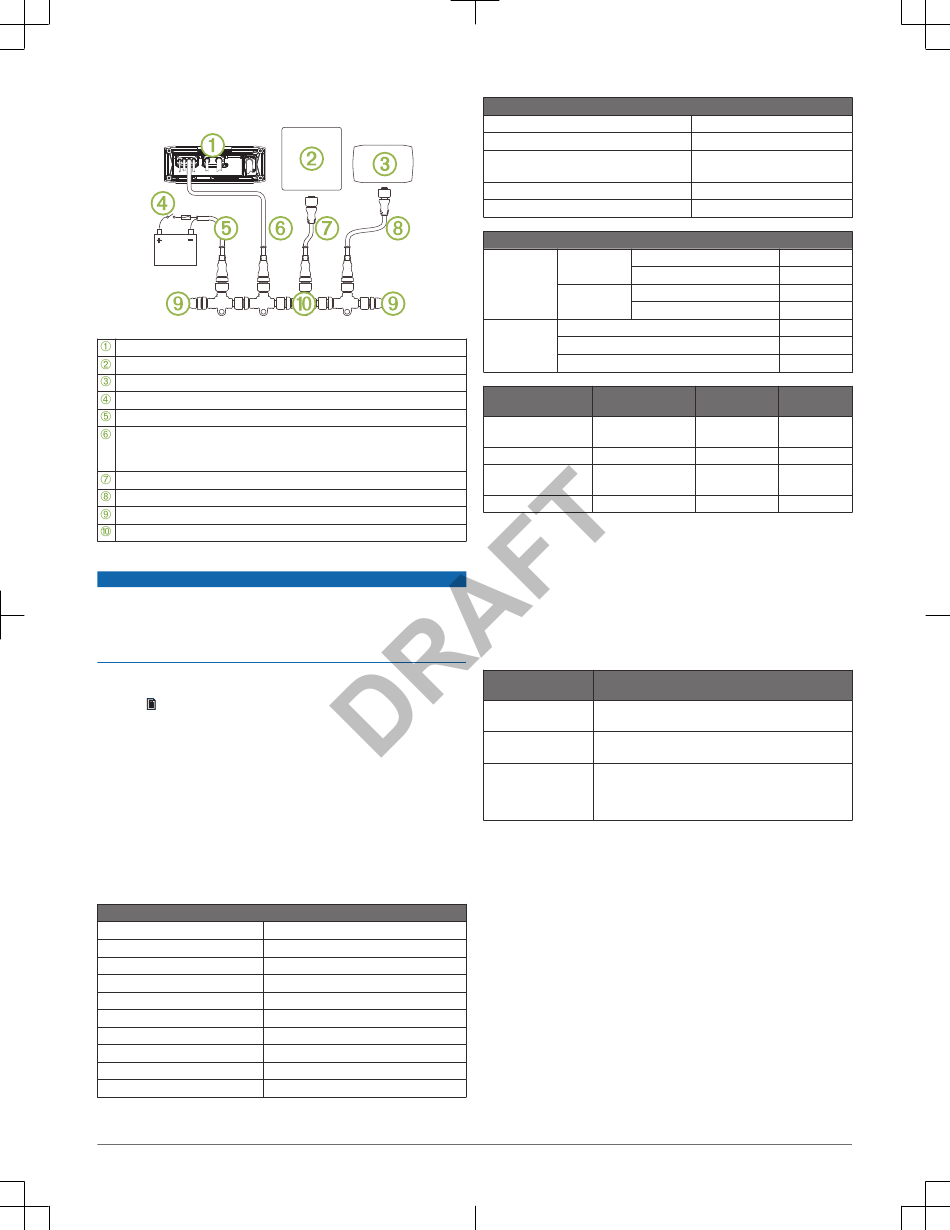

NMEA 2000 System Wiring Diagram
Stereo
Supported chartplotter MFD
FUSION NRX series wired remote
In-line switch
NMEA 2000 power cable
NMEA 2000 cable from the stereo
This can be extended to a maximum length of 6 m (20 ft.) using a NMEA 2000
cable.
NMEA 2000 drop cable from the MFD
NMEA 2000 drop cable from the wired remote
NMEA 2000 terminator or backbone cable
NMEA 2000 T-connector
Configuring an Optional Wired Remote
NOTICE
The stereo is configured by default to work with a NMEA 2000 network, and
the NRX Power option should be enabled only when an optional remote is
connected directly to the stereo. Enabling this option when the stereo is
connected to a NMEA 2000 network may damage other devices on the NMEA
2000 network.
If you connect an optional wired NRX remote directly to the stereo, and not
through a NMEA 2000 network , additional configuration is needed.
1
Select
> Settings.
2
Select an option:
• If you connected both your stereo and your optional wired remote to a
NMEA 2000 network, make sure the NRX Power option is not
selected. This enables the optional remote to receive power from the
NMEA 2000 network.
• If you connected the optional wired remote directly to the stereo
through the NMEA 2000 connector, select the NRX Power option. This
enables the stereo to supply power to the optional remote.
Stereo Information
Specifications
General
Weight
0.88 kg (1.96 lb.)
Water resistance
IEC 60529 IPX5
Operating temperature range
From -5 to 50°C (from 23 to 122°F)
Storage temperature range
From -20 to 70°C (from -4 to 158°F)
Compass-safe distance
15 cm (5.9 in.)
Input voltage
From 10.8 to 16 Vdc
NMEA 2000 LEN
1 (50 mA)
Bluetooth
®
Class 2
Bluetooth/ANT
frequency
From 2,400 to 2,483.5 MHz
®
Bluetooth/ANT power (max.)
8 dBm EIRP
Installation Instructions
On-board, Class D Amplifier
Output music power per channel
Total output music power
Output power per channel
(14.4 VDC at 10% THD+N)
Line output level (max.)
Aux input level (typical)
Current Consumption
Stereo is off
Ignition off
Standby Mode = Off
Standby Mode = On
Ignition on
Standby Mode = Off
Standby Mode = On
Stereo is on
Muted
Typical listening volume
Maximum current draw
Tuner
Europe and
Australasia
FM radio frequency
87.5 to 108 MHz
range
FM frequency step
50 kHz
AM radio frequency
522 to 1620 kHz
range
AM frequency step
9 kHz
Media Player Compatibility
If you have a UD model, you can use the included adapter cables to connect
popular media players to the internal docking station or the connector on the
back of the stereo. If you have an AV model, you can use the USB cables that
came with your media player to connect the player to the connector on the
back of the stereo.
Only media players with ports on the bottom, not on the sides, fit in the
docking station. Media players larger than 144 × 71 × 13 mm (5.67 × 2.80 ×
0.52 in.) do not fit in the docking station.
Cable Connector in
Devices
Dock
Micro-USB connector
Supported media players. See
www.fusionentertainment.com.
Apple 30-pin connector
Apple iPhone
4s.
®
iPod touch
(5th generation).
®
Apple Lightning
Apple iPhone 7 Plus, iPhone 7,iPhone 6s Plus, iPhone 6s,
connector
iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, and iPhone
5.
iPod touch (6th generation) and iPod nano
You also can connect a FAT32- or NTFS-formatted USB flash drive directly to
the USB port.
70 W max. x 4 at 2 ohms
280 W max.
43W RMS x 4 @ 2 ohms
26W RMS x 4 @ 4 ohms
6 V (peak to peak)
1 V RMS
< 3 mA
< 200 mA
< 20 mA
< 200 mA
<900 mA
2 A
15 A
USA
Japan
87.5 to 107.9 MHz 76 to 95 MHz
200 kHz
50 kHz
530 to 1710 kHz
522 to 1620 kHz
10 kHz
9 kHz
(7th generation).
®
5
