Checking the Contents

Getting Acquainted with
LaboForce-3
2
LaboForce-3
Instruction Manual

1. Getting Started

In the packing box you should find the following parts:
1 LaboForce-3
1 Allen-key 2.5 mm for securing the specimen mover plate
1 Allen-key 1.5 mm for the thrust pad screw
6 Extra screws M4 for securing the specimen mover plate
1 Nut, M16
3 Washers, 1 mm for levelling of column height
3 Washers, 3 mm for levelling of column height
1 Set of Instruction Manuals
Take a moment to familiarise yourself with the location and
names of the LaboForce-3 components.

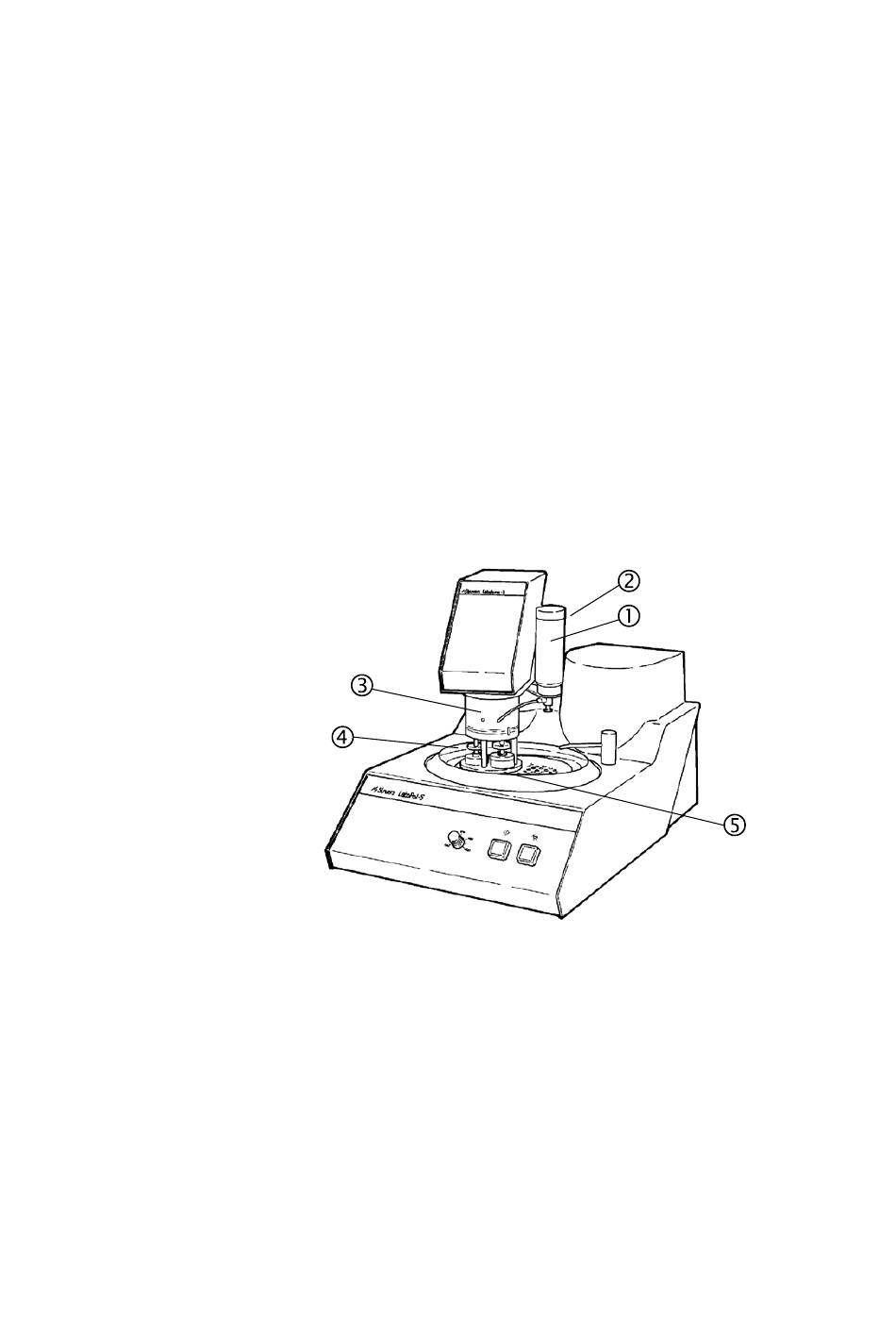

LaboForce-3 mounted on LaboPol-5 (accessory):
 Drip lubricator (accessory)
 Handle (Behind , not shown)
 Spring housing
 Adjustment screw
 Specimen mover plate
