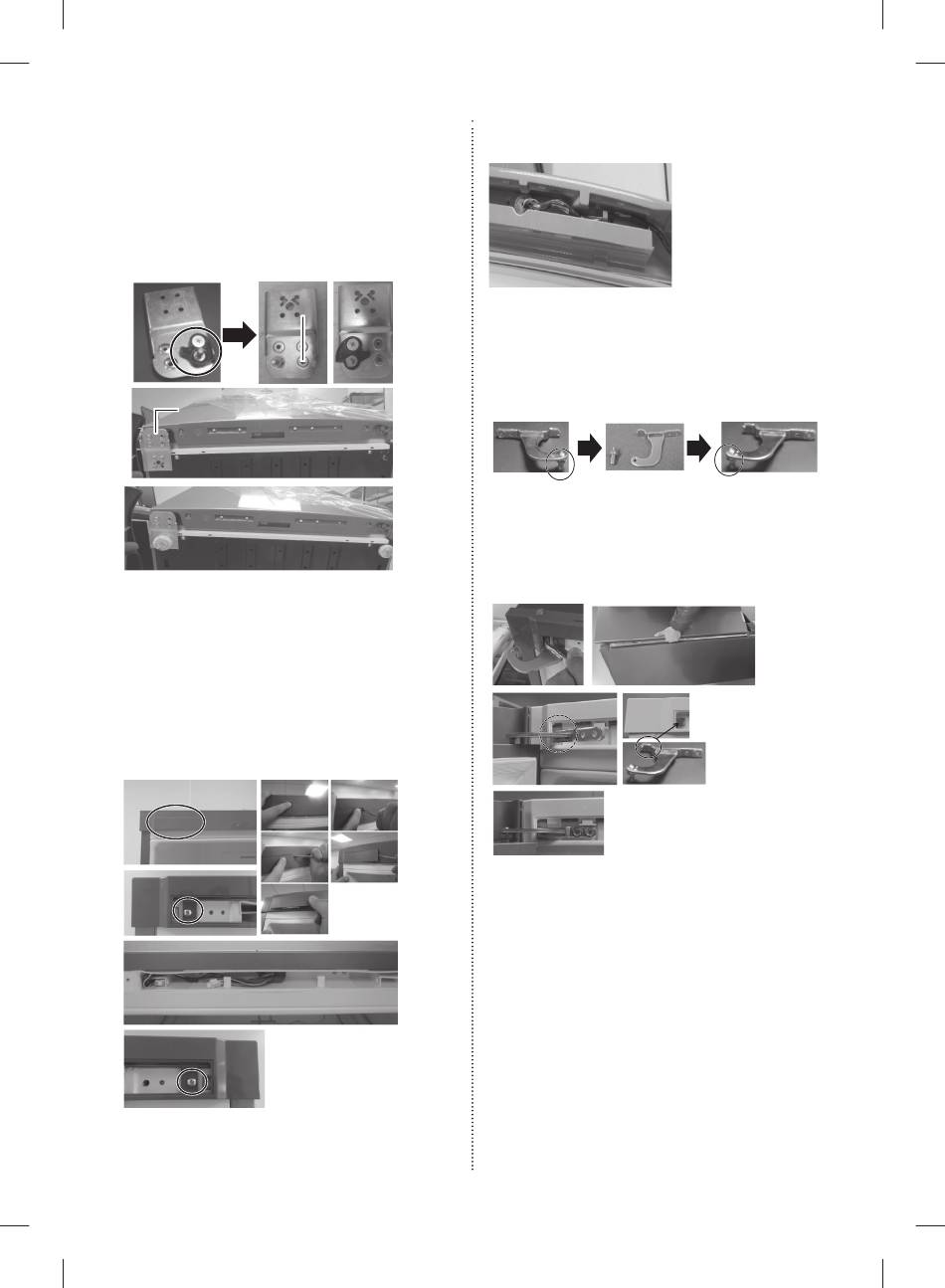

15. Switch the position of Bottom hinge and Leg.
(Right -> Left)
Assemble the Hinge Low after putting the
Freezer Door in the middle hinge.
• Disassemble the Guide auto close and the
Shaft-hinge.
• Assemble the Shaft-hinge and the the Guide
auto close like this on picture.
Hinge Leg Hinge Leg
16. Put the Cap-Control out from the Cover Control
like the picture (1).
Remove the Screw and disassemble the Cover
control (2), Switch the Wire door (3) direction
to opposite side on Fridge Door (Door Display
type only).
Assemble the Cover-Control with Screw like a
Picture (4).
(1) (1)
(2) (2)
(3) (3)
(4) (4)
28_ operating
DA68-02833Q-12.indb 28 DA68-02833Q-12.indb 28
Shaft-hinge Shaft-hinge
(1-1) (1-1) (1-2) (1-2)
(1-3) (1-3) (1-4) (1-4)
(1-5) (1-5)
17. Switch the Wire-Door Direction to opposite
side like the Picture.
18. Use 11 mm wrench to separate the Top hinge
shaft.
Flip the Top hinge and reattach the Top hinge
shaft.
19. Insert the Top hinge to make the hole a little
bigger and then put out the Top hinge to
assemble the Fridge door.
Assembly steps
1. Assemble the Top hinge on the Fridge door.
2. Assemble the Middle hinge on the Fridge door.
3. Insert the Top Hinge on the Cabinet.
4. Assemble the screw.
