REAR PANEL
Example : Wiring XLR (analogue)
2
3
1
To unbalance, connect pin 3 to ground (pin 1). Output level automatically increases
(6dB) to achieve the same level, as when balanced.
INFORMATION
Warning !!!
EXT410 mains connector has three wires (2 poles + earth). Earth should imperatively be connected to mains
earth.
Never use this equipement without proper grounding.
Check quality of grounding.
Should noise or hum occurs when connected to other equipments, never disconnect grounding, use
insulating transformer on mains.
Never open the case without disconnecting mains
Avoid high temperature exposure.
Never expose the equipment to rain, snow or moisture.
EXT 410 complies with :
EN60065, EN55013, EN55020, EN60555-2, and EN60555-3, according to 73/23/EEC, 89/336/EEC and
93/68/EEC.
Rami - EXT 410

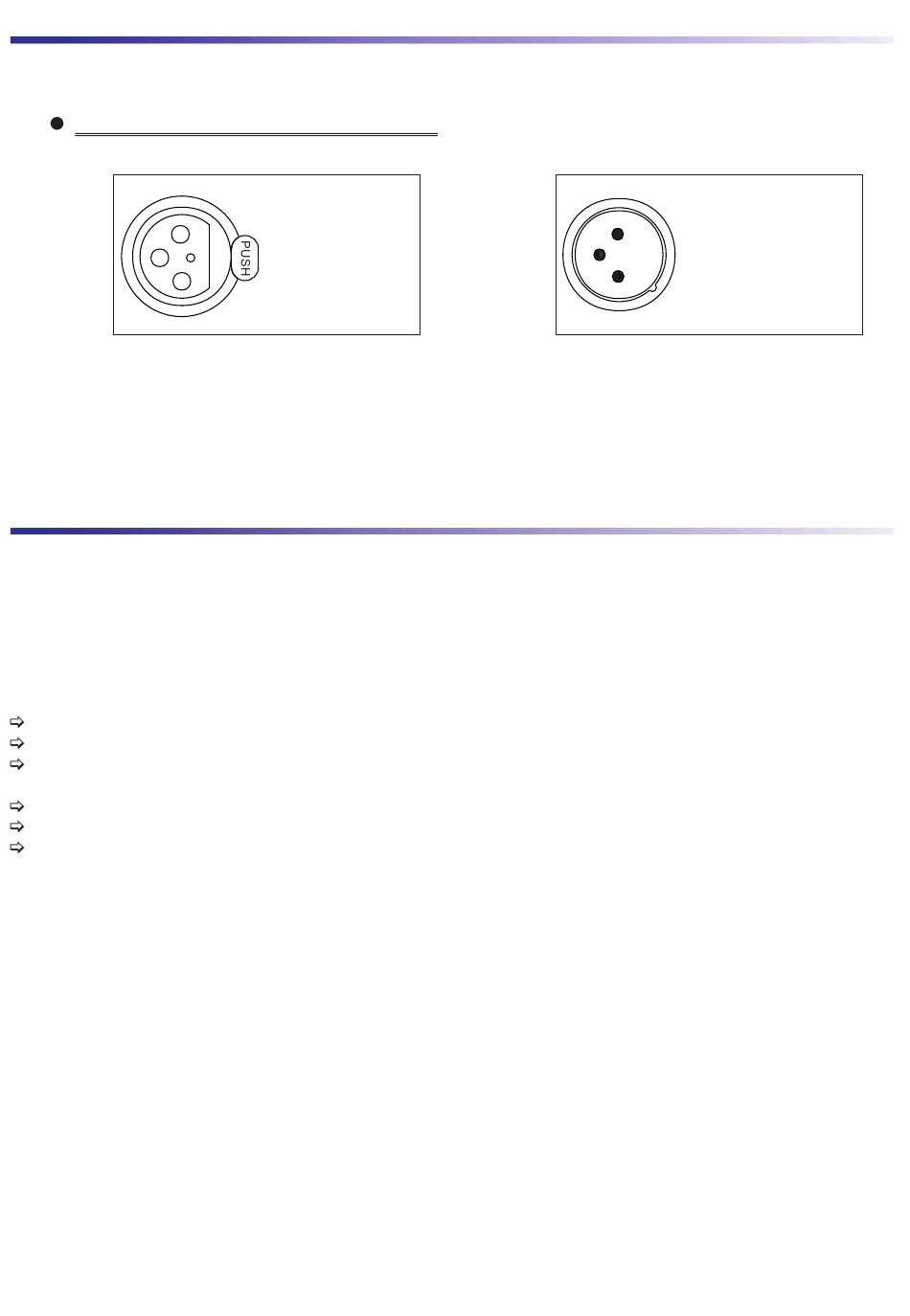

Female 3 pins XLR
1: earth
2: signal +
3: signal -
3
13
Male 3 pins XLR
1: earth
1
2: signal +
3: signal -
2
1
