Troubleshooting Guide - Ground Zero PLUTONIUM GZPA 1.6000D Mode D'emploi

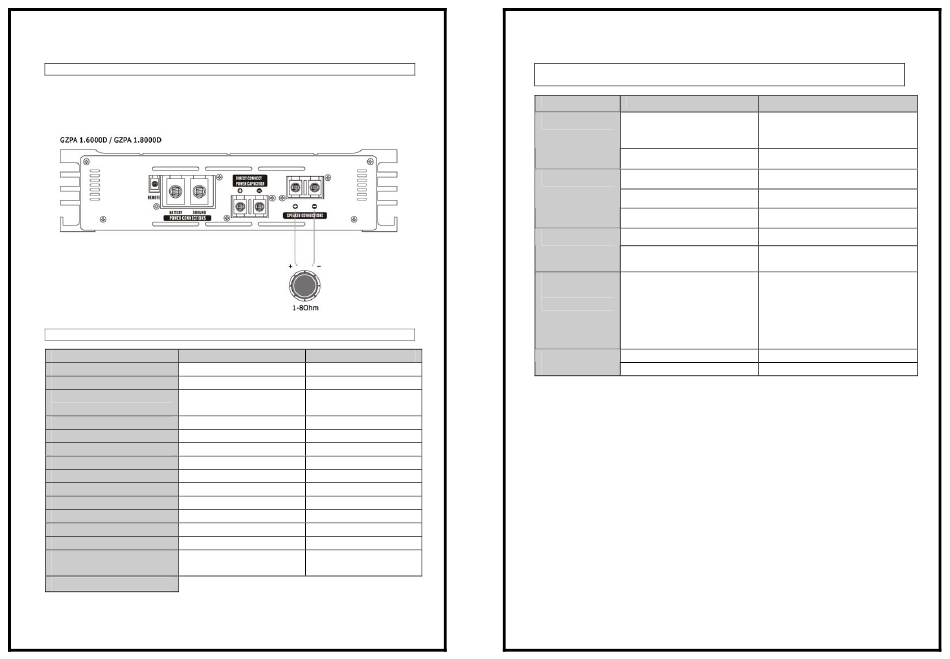

Speaker connection mode
One speaker mono mode
Specifications
Modell GZPA 1.6000D
2 Ω 14,4 V / 16 V / Peak Power 3500* / 4400* / 5500 Watt
1 Ω 14,4 V / 16 V / Peak Power 5000* / 6000* / 8000 Watt
Link mode
10.000* / 12.000* / 16.000 Watt
2 Ω 14,4 V / 16 V / Peak Power
Input level 200 mV - 8 Volt
Lowpass filter 50 Hz - 150 Hz
Operating voltage 10 -16 Volt
Subsonic filter 15 Hz - 60 Hz
Subsonic slew rate 24 dB/ octave
Phase Shift 0° -180°
Bass Boost Gain 0 dB - +12 dB
Signal to noise ratio >90 dB
Damping factor >200 @ 20 Hz 4Ω
T.H.D. 1W 4Ω
Dimensions (W x H x L) mm 286 x 69 x 595
inches 11.34 x 2.73 x 23.61
* Power ≥ 1% T.H.D.
9
GZPA 1.8000D
4200* / 5200* / 6400 Watt
6500* / 8000* / 10000 Watt
13000* / 16000* / 20000 Watt
200 mV - 8 Volt
50 Hz - 150 Hz
10 -16 Volt
15 Hz - 60 Hz
24 dB/ octave
0° -180°
0 dB - +12 dB
>90 dB
>200 @ 20 Hz 4Ω
0.1 % 0.1 %
287 x 69 x 700
11.30" x 2.72 x 27.56"
Trouble shooting guide
SYMPTOMS CHECK POINTS
NO SOUND Is the POWER LED illuminated?
Is the PROTECT LED illuminated?
AMP NOT No power to the amplifier
SWITCHING ON
No power to remote wire with receiver
on
Check fuse
NO SOUND IN ONE Check speaker leads
CHANNEL
Check audio leads
AMP TURING OFF Check speaker load impedance
MEDIUM/HIGH
VOLUME
PROTECTION LAMP Temperature shut down
ON Speaker wires short
10
CURE
Check fuses in amplifier. Make sure remote
lead is connected check signal leads. Check
gain control
Check Tuner/Deck volume level
Check for speaker short or amplifier
overheating
Check power wire or connections
Check connections to radio
Replace fuse if broken
Inspect for short circuit or an Open
connection.
Reverse left and right RCA inputs to determine
i fit is occurring before the amp
Make sure proper speaker load impedance
recommendations are observed.
(If you use an ohm meter to check speaker
resistance, please remember that DC
resistance and AC impedance may not be the
same)
Turn radio volume down
Separate speaker wires and isolate
