lamp head on the LED housing make sure the
seal and disc are seated properly. After assembly
no part of the seal should be visible through the
opening where the beam is emitted. If the LED
housing or lens has been damaged, the flashlight
should be sent to the manufacturer for repair.

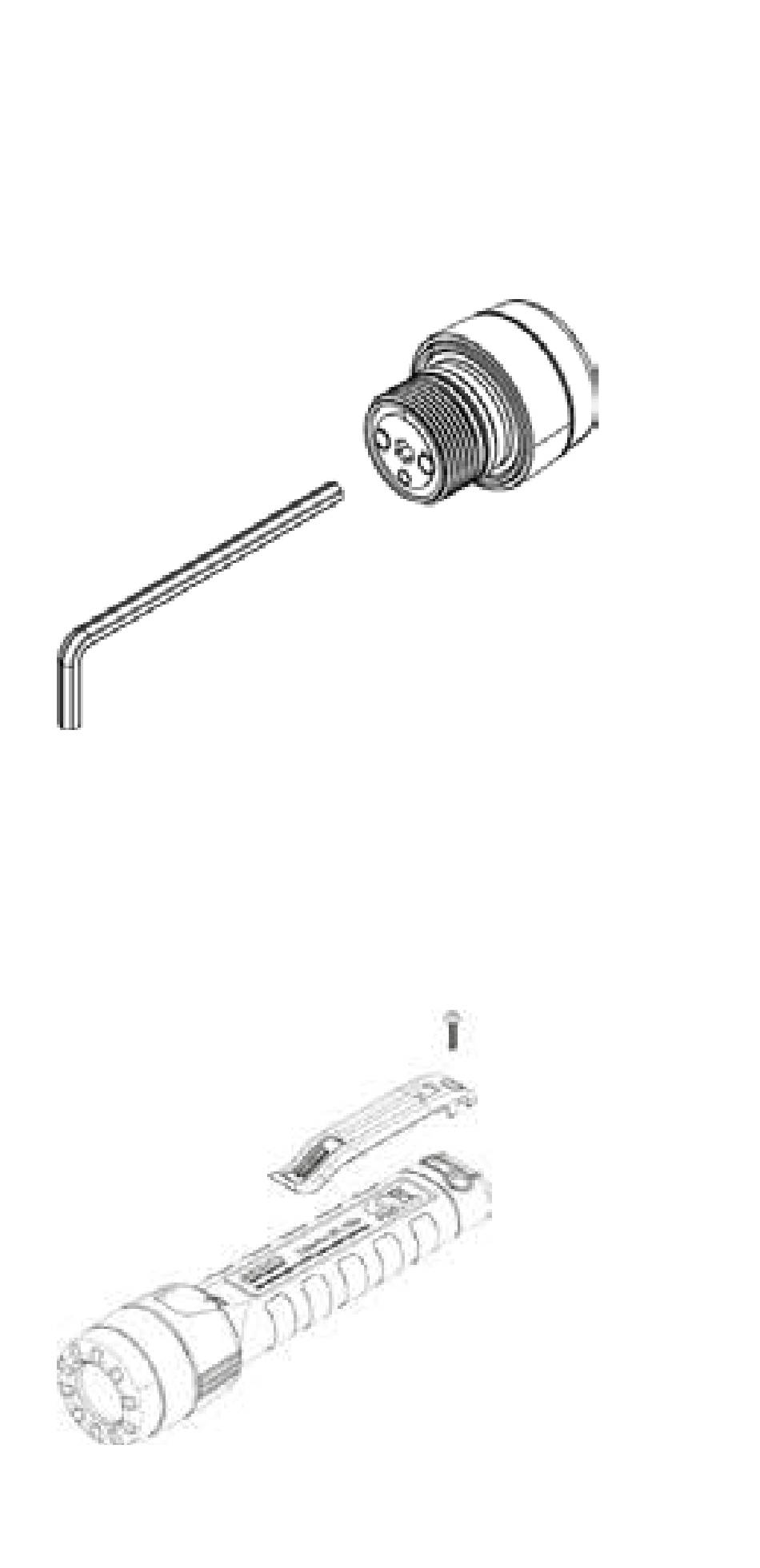

(Fig. 2)

8.7 Assembling the belt clip

Remove the belt clip from the plastic bag and
attach it to the side of the company logo using
the screw provided (see Fig. 3).
(Fig. 3)
