INSTALLAZIONE / INSTALLATION

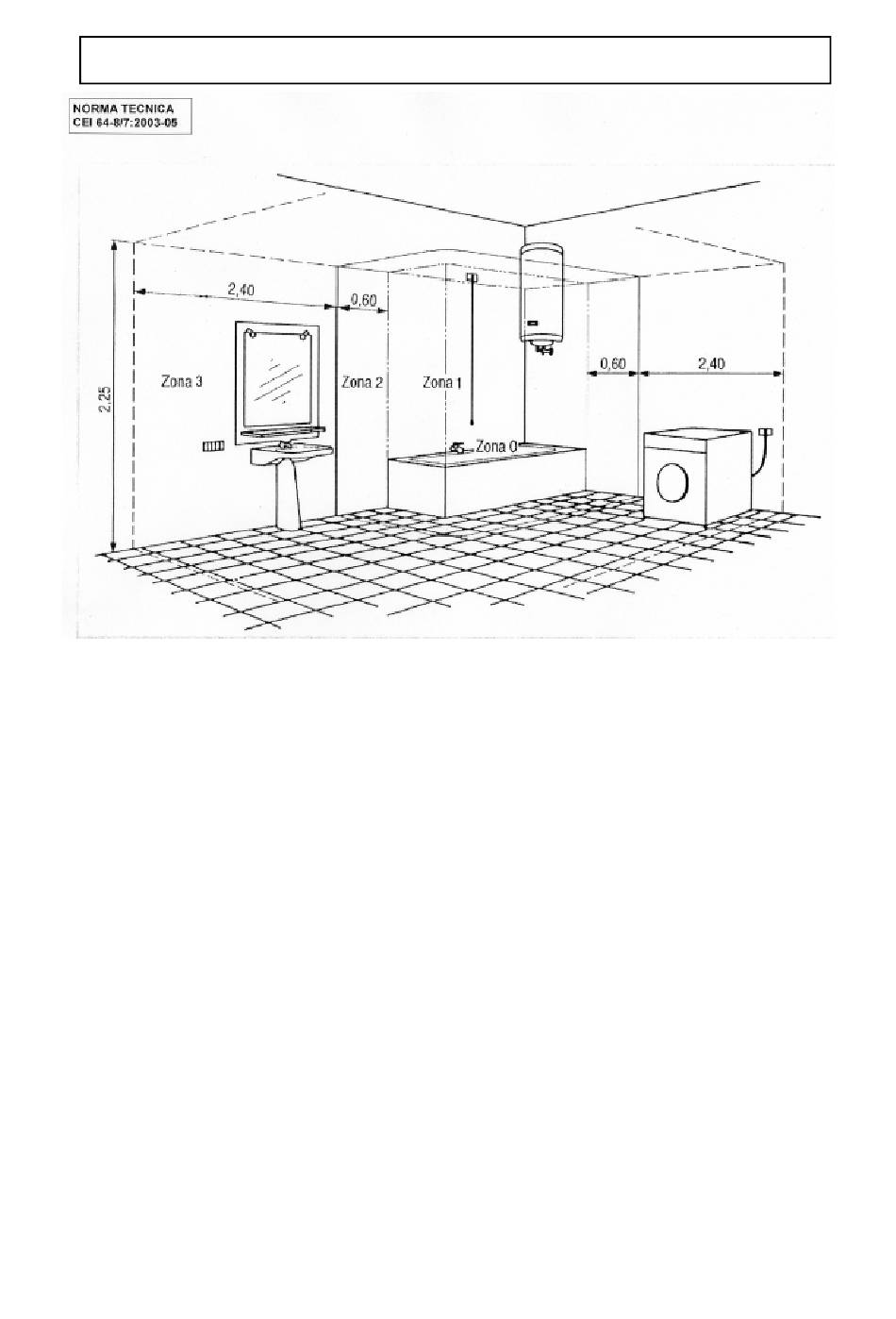

Technical standard
ASSEMBLY INSTRUCTIONS
ALUMINIUM LED SPOTLIGHT FITTED IN THE SHOWER COMPARTMENT
Confidential Document
Spotlight for shower compartment
Power supply 3W
Output 3.2/4 V, 700 mA
Input 230 V, 50 Hz
Dimensions 51x32x18.5 mm
On request and for specific markets, other power supplies with different input voltages (i.e. 110V) can be provided; prices may vary, as these
are products not normally handled at the current time.
Fitting the spotlight.
Use pressure to insert the spotlight in the specific compartment provided in the lower plate.
Insert the cable with double insulation in the conduit of the system and place the power supply in the nearest junction box in compliance with
the standard CEI 64-8.
ASSEMBLY INSTRUCTIONS
Standard versions are provided with 2.5 m of power cable, longer lengths are available on request (to be included in the design phase, if pos-
sible within the range of 10 m). The cable provided is 2x.05 sqmm, with double insulation, as output polarity is present; any failure to switch on
could be caused by reversed polarity on the terminal block (+ and -) of the power supply; in this case perform inversion.
The cable must branch in a specific sealed box containing the power supply (when fitted externally).
REPLACING THE LED
Remove the spotlight from the cylindrical compartment in which it is housed.
The Lumiled LED has a duration of about 100,000 hours, if connected correctly in series it is very unlikely that this duration will decrease. If
this occurs, loosen the cable grommet PG7 and the rear ring nut as shown in the figure, remove the LED plate, desolder it, solder the new one
obtained from the market or from Zucchetti.
At the end of this operation reposition the spotlight as before.
The product is covered by warranty, for parts where any breakage or fault for which, subject to verification, our company is responsible; the
warranty does not cover malfunction occurring after delivery of the product and caused by third parties. Any repairs can be performed within
the company following a written request from the dealer.
It is advisable to keep these instructions
Zucchetti Rubinetteria S.p.A.
