2.0 INSTALLATION

2.1 Termination Cap Framing
IMPORTANT: Termination framing MUST be level so the termination
cap is level upon installation. This is required so precipitation does not
build up inside the termination cap.
Find desired location of exterior heat transfer kit termination. For
horizontal termination cap clearances, see Figure 2.3.
10"
(254mm)
½
13
"
(343mm)

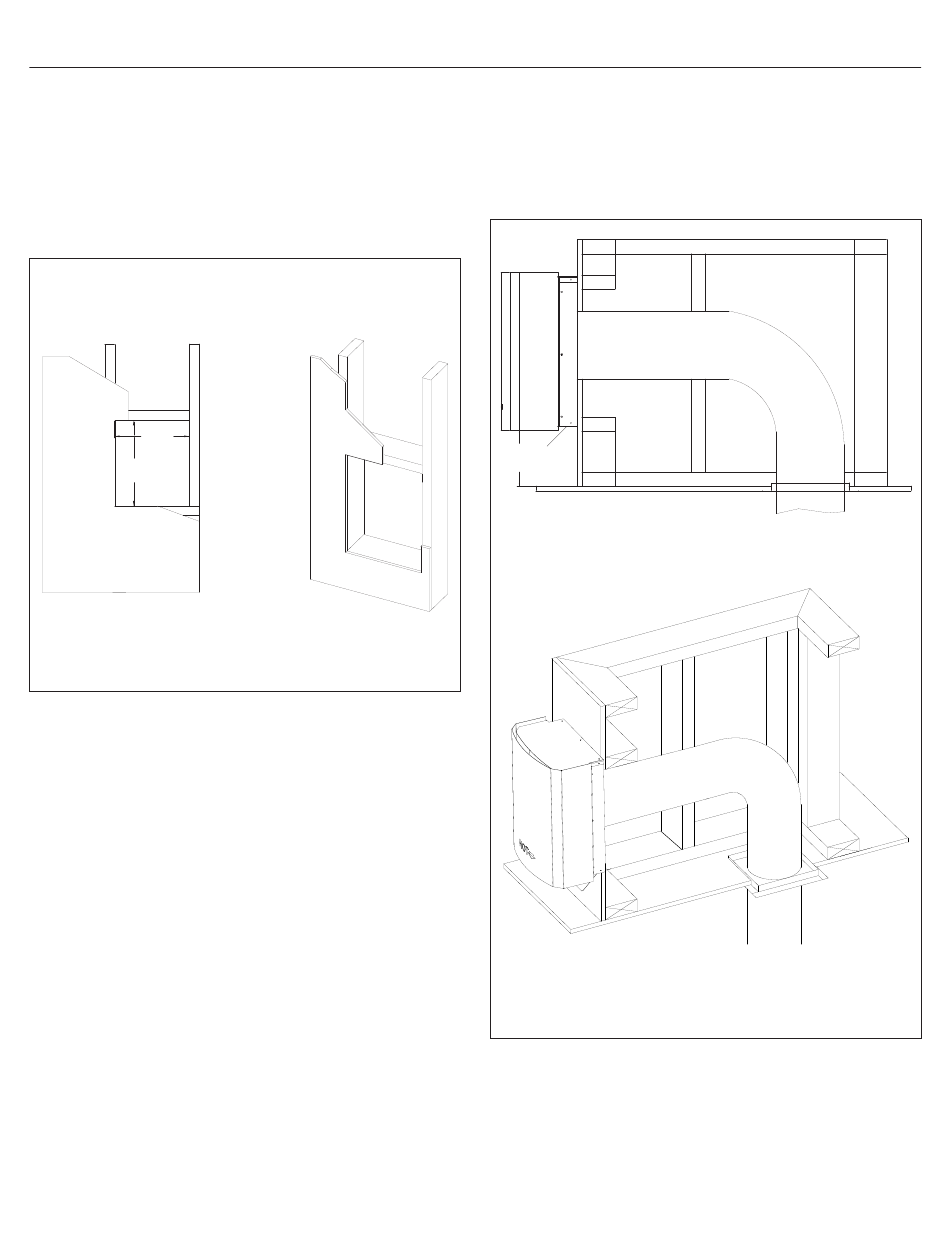

Figure 2.1, Framing Dimensions
Heat Transfer Kit - Exterior #HTK-EXT R.1

2.2 Rooftop Termination

If the #HTK-EXT is going to terminate on a flat roof, an enclosure
similar to the one shown in Figure 2.2 will need to be constructed.
12"
(305mm)
Figure 2.2, Rooftop Enclosure Framing
Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces
