2.0 Installation

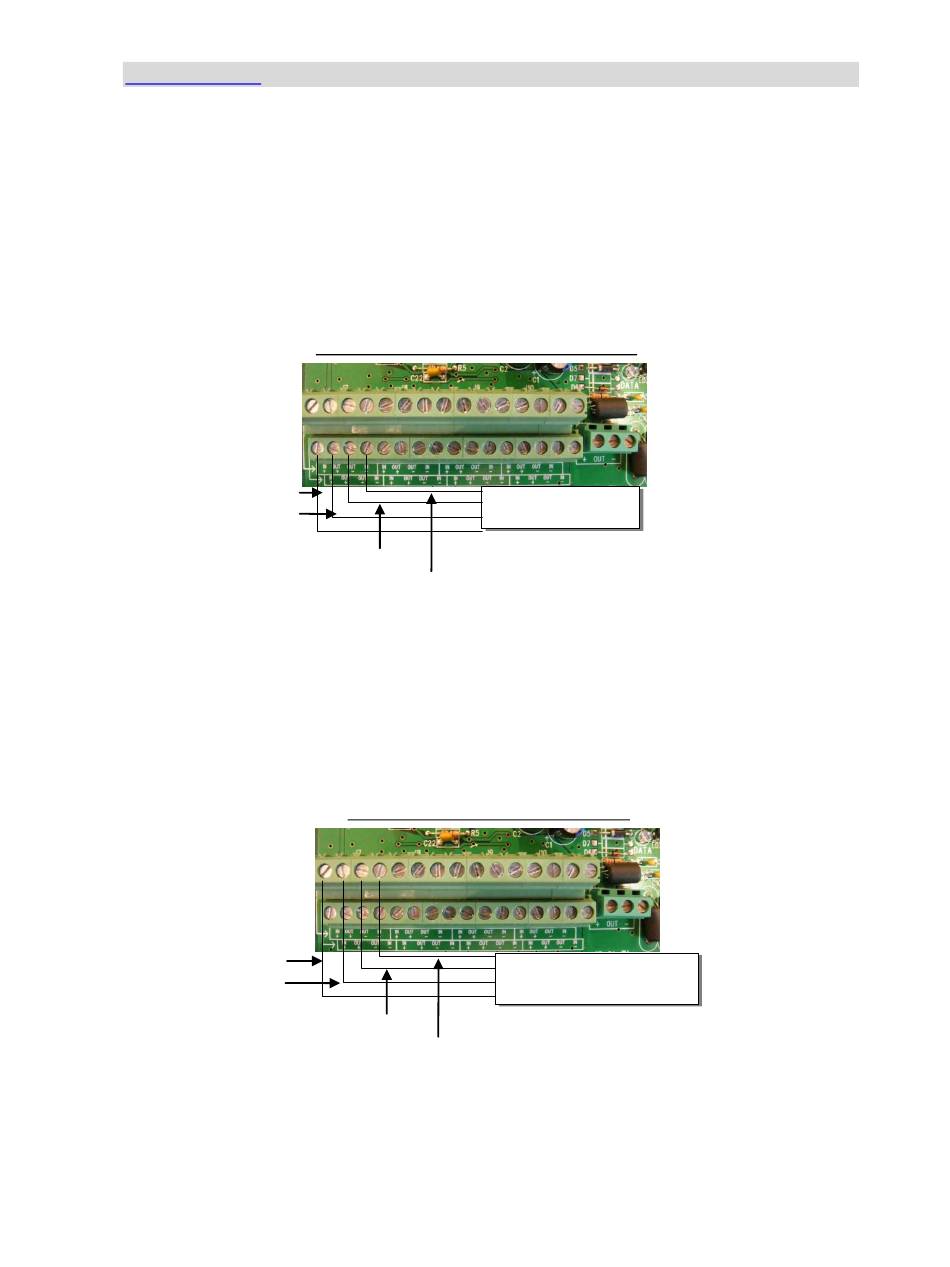

Day Bin Load Cells Wiring

Connect the wires of each of the day-bin load-cells to the A/D Silo Box card. These wires
should be connected to the lower connector (SILO1 connector). Each load-cell is
connected to 4 contacts of this connector: the red wire to an IN+ contact, the green wire
to an OUT+ contact, the white wire to an OUT- contact and the black wire to an IN-
contact. The wiring schematic below shows how to connect the first load cell to the
SILO1 connector. All other day-bin load-cells should be connected similarly to the other
contacts in this connector.
SILO1 Connector
Red wire= In+
Green wire= Out+

Silo Load Cell Wiring

Connect the wires of each of the silo load-cells to the A/D Silo Box card. These wires
should be connected to the upper connector (SILO2 connector). Each load-cell is
connected to 4 contacts of this connector: the red wire to an IN+ contact, the green wire
to an OUT+ contact, the white wire to an OUT- contact and the black wire to an IN-
contact. The wiring schematic below shows how to connect the first load cell to the
SILO2 connector. All other silo load-cells should be connected similarly to the other
contacts in this connector.
SILO2 Connector
Red wire= In+
Green wire= Out+
Roxell Daybin Controller – RDC
Day-Bin Load Cell Wiring Schematic
White wire= Out-
Black wire= In-
Silo Load Cell Wiring Schematic
White wire= Out-
Black wire= In-
Page 5 of 193
Day bin load cell
Main feed bin load cell
