Screen Research T-CLF Manuel D'installation page 20

Manual
1
Insert the cursors in the
2
profiles
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: T-CLF rev2 | 01.01.2018
n° 1 Manual
n° 4 Alluminium profile PLANO
n° 4 Iron corner for alluminium profile
n° 16 Nut M8
n° 16 Screw M6x10
n° 1 Fabric
n° 4 Iron tube for Fabric intallation
n° 25 Allumiium cursor
n° 25 Green elastic for Fabric intallation
n° 2 Wall Mount Brakets
(screws and plugs for wall mount are not included)

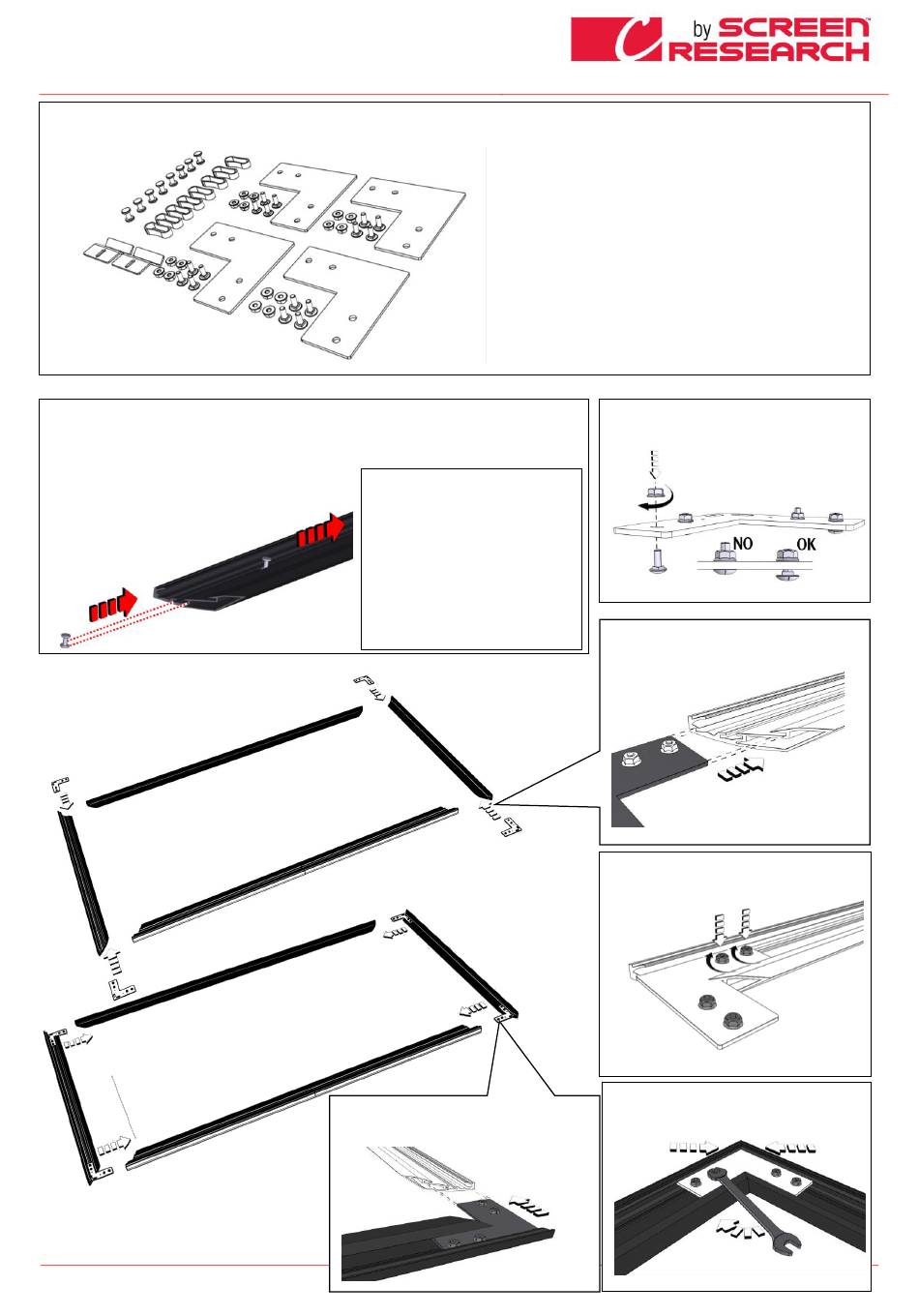

Before assembly the frame
of the screen insert the
cursors in the profiles like in
the image on the left, check
the number to insert in
them checking the point 07
INSTALLATION
INSTRUCTION in the pages
above.
x 4
4e
FRAME ASSEMBLY SCREEN
x 4
3
a X 4
4
b
4
d x 4
4
