7.2 ENGRAVED FOCUS RING REPLACEMENT
Proceed as following to swap the engraved focus ring from feet to meters
(or vice versa) :
- Place the engraved focus ring (or) at the infinity stop
- Trace a line on the focus witness mark ring (19) opposite the infinity line
(Picture 14)
- Unscrew the 3 engraved focus ring screws (22) : to gain access to these 3
screws, turn the engraved focus ring (20 or 21) to make them successively
appear in the window on the focus witness mark ring (19)
- Remove the lens bracket (5) (Picture 15)
- Remove the engraved focus ring (20 or 21) (Picture 16)

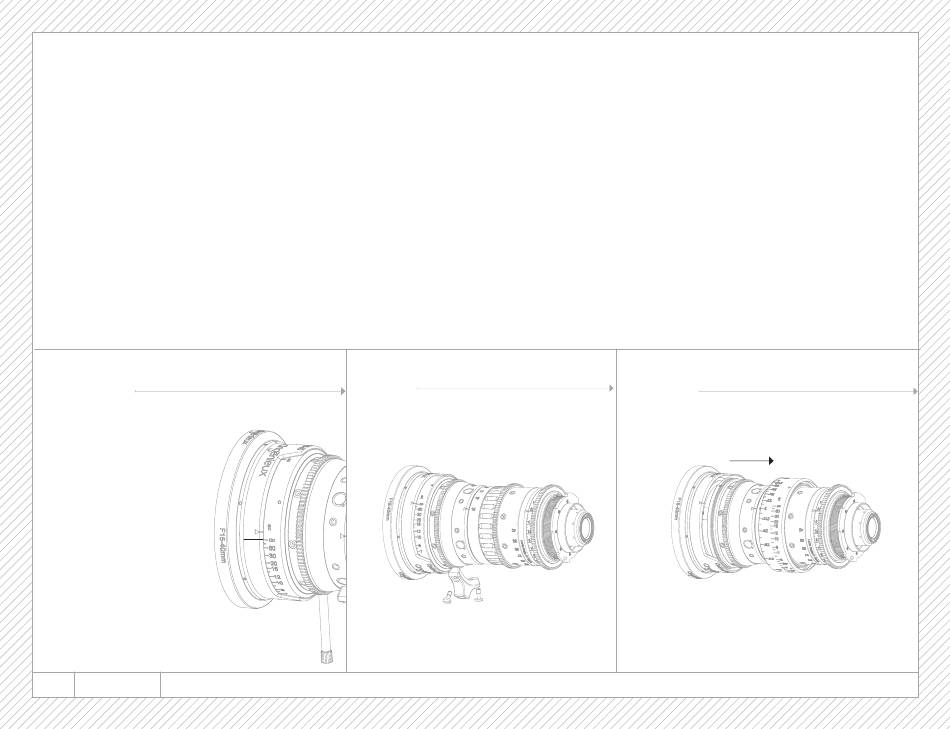

Picture 14
Figure 14
42 OPTIMO 15-40 7 - ENGRAVED FOCUS RING REPLACEMENT I REMPLACEMENT DE LA BAGUE GRAVÉE DE MISE AU POINT
- Install the new engraved focus ring (20 or 21) (Picture 17)
- Turn the engraved focus ring (20 or 21) to align the infinity line with
the line done before on the focus witness mark ring (19) (Picture 18) and
tighten the first visible screw (22)
- Turn the engraved focus ring (20 or 21) to install the 2 other screws (22)
- Check the alignment between the infinity line with the line done before
on the focus witness mark ring (19) and install lens bracket (5)
Picture 15
Figure 15
Picture 16
Figure 16
