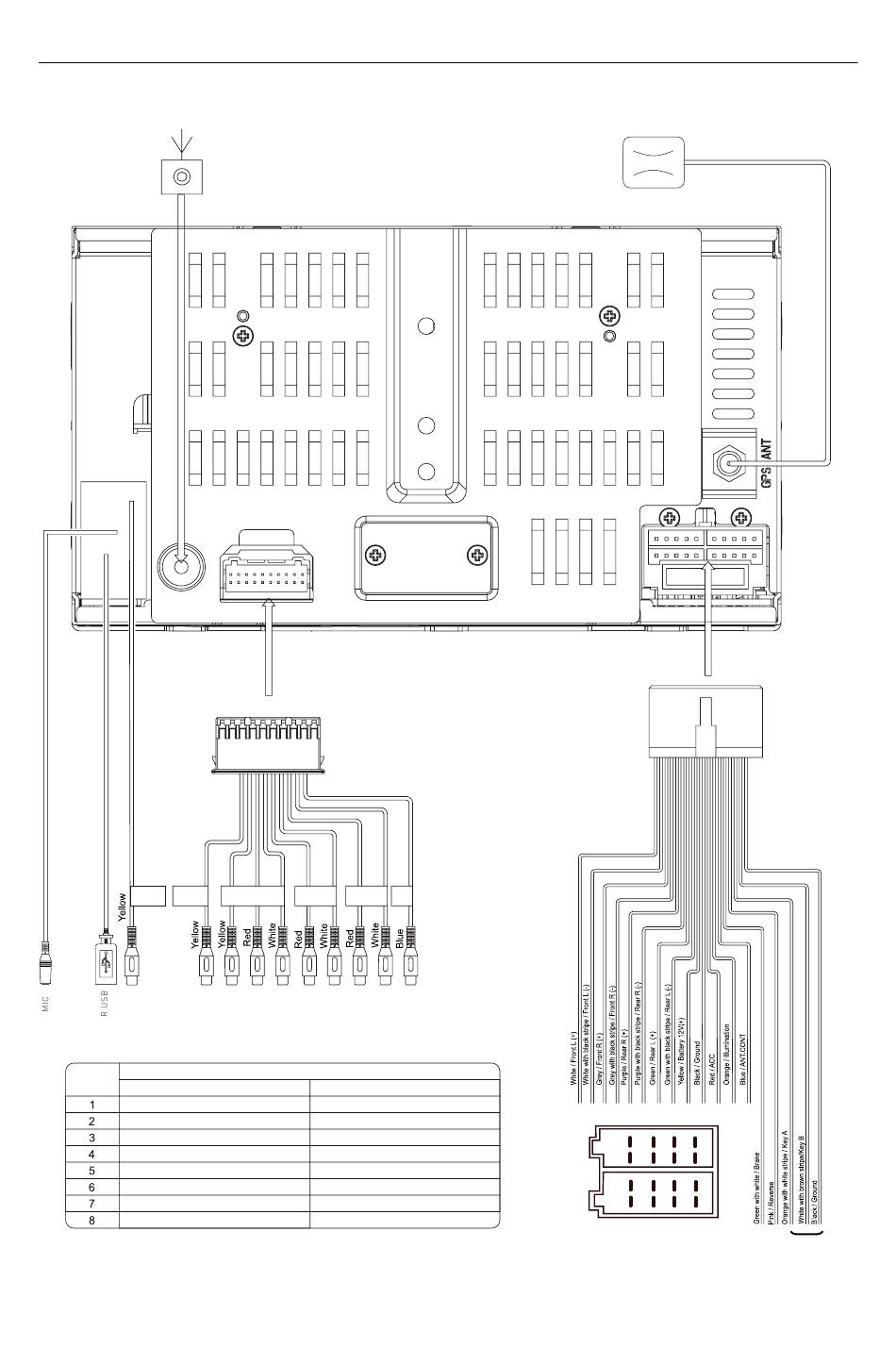

Câbler connexions
VIDEO
VIDEO
CAMERA
OUT
PIN NO.
Connector A
Rear right (+) / Purple
Rear right (-) / Purple with black stripe
Front right / Gray
Front right (-) / Gray with black stripe
Front left (+) / White
Front left (-) / White with black stripe
Rear left (+) / Green
Rear left (-) / Green with black stripe
Radio Antenna
AV Input
REAR
FRONT
Function
Connector B
ACC+ / Red
Antenna-Power Control/ Blue
Illumination / Orange
Battery 12V(+) / Yellow
Ground / Black
SUB
OUT
- 26 -
Antenna GPS
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
Steering Wheel Control
