Vertical cross-section of smoke flue (Drawing C)
C1: Top smoke outlet
1. Steel chimney.
2. Flue gas elbow. Fits into smoke flue socket.
3. Brick-built jamb of flue.
4. Built-in pipe sleeve. Fits smoke flue.
5. Wall rosette. Covers disruption to wall around pipe sleeve.
6. Joint. Sealed with packing material.
7. Smoke outlets of the HWAM stove.
8. Cover plate in the external rear plate – break off if a rear outlet is required.
9. Cover screwed in position: secure it to the top plate with screws if a rear outlet is required.
10. Smoke bushing: to be screwed to the back of the stove if a rear outlet is required.
11. Adjusting damper in smoke pipe.
12. Cleaning hatch.
13. Smoke pipe to rear outlet.
14. Loose cast iron cover: to be placed on the top plate when there is a rear outlet.
Connecting and preparing the HWAM Autopilot IHS
1. Connect the plug
a) to a normal 230V socket
b) to the Air box in the wood section underneath the combustion chamber (lead the plug through
the air slot at the bottom between the side and rear plates - on the left side of the wood-burning
stove when seen from the front. There is a mark on the Air box where the plug should be let in. See
the photo of the power supply on the Air box.

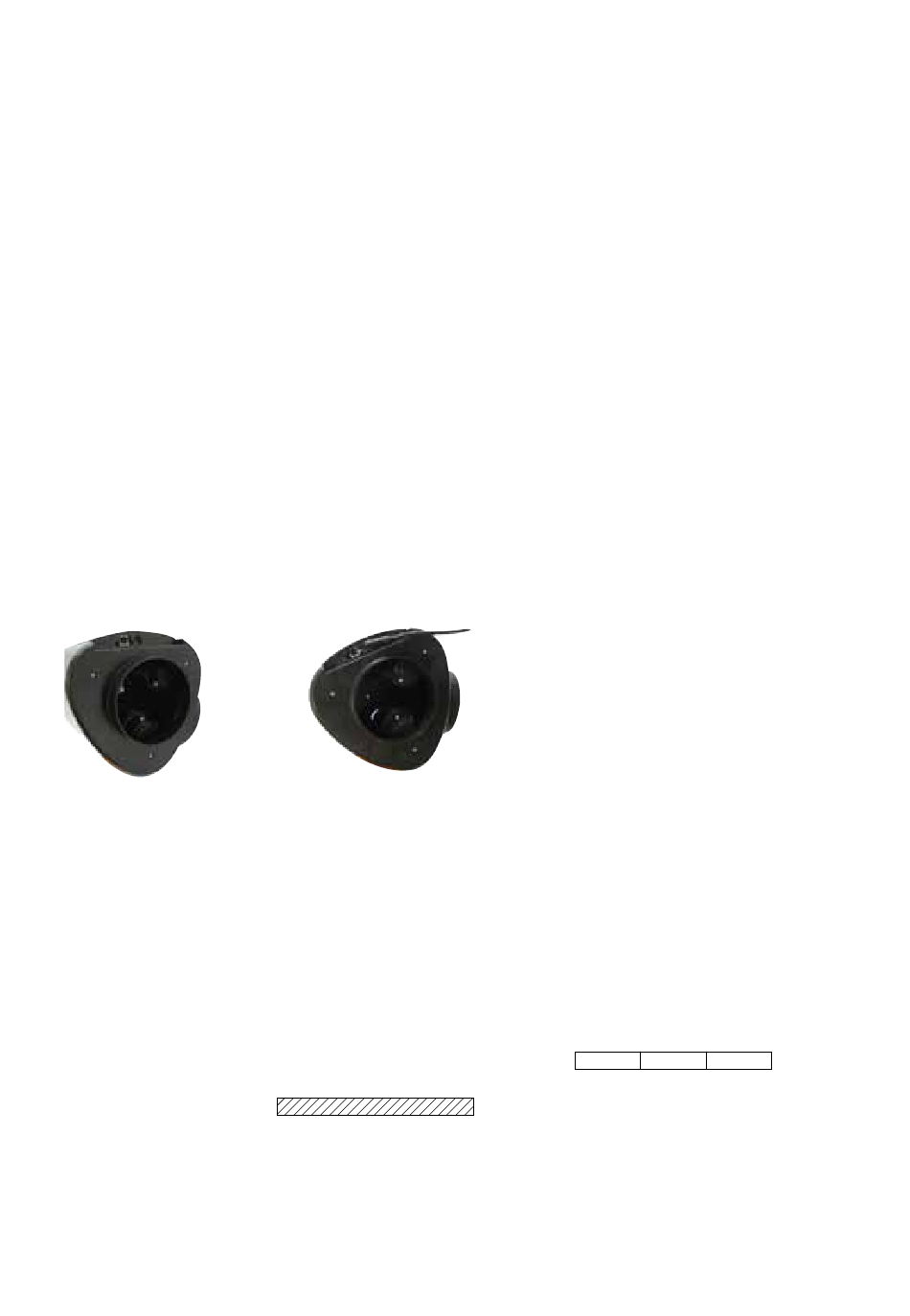

Air box withour power supply.
For the models HWAM 3610 and HWAM 3620 on pedestals, it is necessary to remove the front of
the pedestal in order to connect it to the power supply. To remove the front, follow the instructions
in the drawings D1-D3. Lead the plug through the rear of the pedestal and connect the power supply
to the Air box. Then replace the front of the pedestal.
2. Insert three AA batteries in the remote control. When the IHS logo disappears from the display, the
remote control is ready to use.
3. The remote control and the wood-burning stove must be connected (the factory will see to this).
If the status line at the bottom of the display is clear (empty) (
into three sections, the wood-burning stove and the remote control are connected.
If the status line is dotted (
are not connected. Start with a display in which the light is off, and make the connection by pressing
and holding down the button, so the advanced menu is displayed. Then press the button repeatedly in
short intervals until the text "Link to stove" is highlighted and wait until it enters this menu. Press the
button in short intervals until the text "Connect" is highlighted and wait again. When the text "Please
cycle stove power" appears on the display, disconnect the electricity from the Air box and then recon-
nect. Press the button once more. If the message "Connected to stove" shows up in the display, the
wood-burning stove and the remote control are connected. Press the button once to return to the
C2: Rear smoke outlet
Air box with power supply.
11
TM
), the remote control and the wood-burning stove
)and divided
