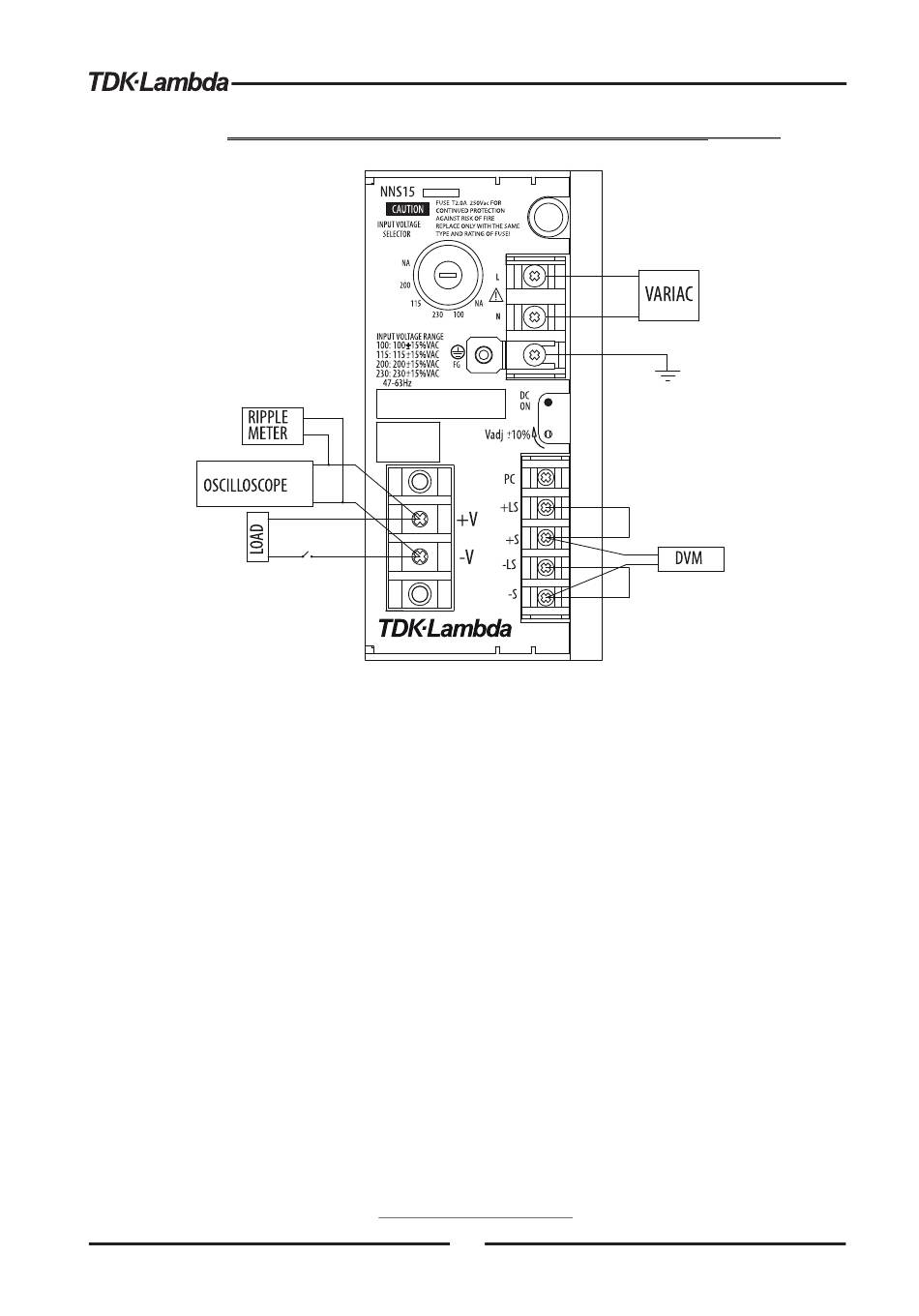

CONNECTIONS FOR PERFORMANCE CHECKS
NOTES:
1. REGULATION AND RIPPLE METERS MUST NOT BE GROUNDED THROUGH THREE-WIRE LINE CORD TO GROUND.
2. PERFORM CHECKS WITH LOCAL SENSING CONNECTIONS ONLY.
SAFETY INSTRUCTIONS - NNS15:
1. FUSES MUST BE CHANGED BY AUTHORIZED SERVICE PERSONNEL ONLY!
F1: T2.0A 250V
F2: 15A 250V
8A 250V
5A 250V
2. POWER SUPPLY MUST BE SECURED TO THE CHASSIS OF THE END USE EQUIPMENT BY 4 SCREWS INSERTED INTO THREADED
OPENINGS IN THE BOTTOM OF THE POWER SUPPL Y ENCLOSURE (REFER TO OUTLINE DRWG.).
3. MAXIMUM LEAKAGE CURRENT OF END-USE EQUIPMENT SHOULD NOT EXCEED 3.5mA.
4. DISCONNECT DEVICE
An appropriate disconnect device for this product shall be provided by the end equipment or as part of the building installation.
Furthermore, the disconnect device must have a contact separation of at least 3mm, and must disconnect both poles of the input supply simultaneously.
In all cases, the main disconnect device of this product must be easily accessible and identiöable. Examples of an appropriate disconnect device are: an isolating
switch with the on and off positions appropriately marked, a circuit breaker inside the building installation, the power supply cord or appliance
coupler, etc.
CE MARK
CE Marking when applied to a product covered by this handbook indicates compliance with the Low Voltage Directive (LVD) of the
European Union in that it complies with EN 62368-1.
CE "Declaration of Conformity" in accordance with the preceding directive and standard has been made and is on file at our
EU representative TDK LAMBDA
: -
UKCA Marking, when applied to a product covered by this handbook, indicates compliance with the Electrical Equipment (safety) Regulations 2016,
Electromagnetic Compatibility Regulations 2016 and Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment
regulation 2012.
UKCA "Declaration of Conformity" in accordance with the preceding directives and standards has been made and is available on a file at our UK
representative TDK-Lambda UK Limited, Kingsley Avenue, Ilfracombe, Devon EX34 8ES.
Declaration s may be accessed via company web site
(NNS15-5).
(NNS15-12, NNS15-15).
(NNS15-24).
Germany GmbH, Karl-Bold-Str. 40, D-77855 Achern.
www. emea .tdk-lambda.com/ manual.
