*CN51, CN52 Connector & Housing & Terminal Pin
Connector build in PSU
B2B-XH-A (CN51)
S12B-PHDSS (CN52)
Hand Crimping Tool: YRS-480(SXH-002T-P0.6) (CN51) (JST) and YRS-620(SPHD-002T-P0.5) (CN52)(JST)
Use maker recommended crimping tool.
3. Connection Method
Please pay attention to the input wiring. If it is connected to wrong terminal, the power supply will be damaged.
• Input must be off when making connections.
• Connect terminal to earth （ f rame ground of the equipment etc. ） b y thick wire for safety and improvement of noise sensitivity.
• The output load line and input line shall be separated to improve noise sensitivity.
• Remote sensing lines shall be twisted or used shielded wires.
• Remote ON/OFF control lines shall be twisted or used shielded wises.
• Output current of each terminal pin of CUS350M Series must be less than 20A.
4． ． ． ． Explanation of Function and Precautions
4-1. Input Voltage Range
Input voltage range is single phase 85-265VAC (47-63Hz). Input voltage, which is out of specification, might lead unit damage, For cases
where conformance to various safety requirements, described as 100-240VAC (50 - 6 0Hz). If input voltage is less than 115VAC under
convection cooling condition or 100VAC under forced air cooling condition, output power need to be derated.

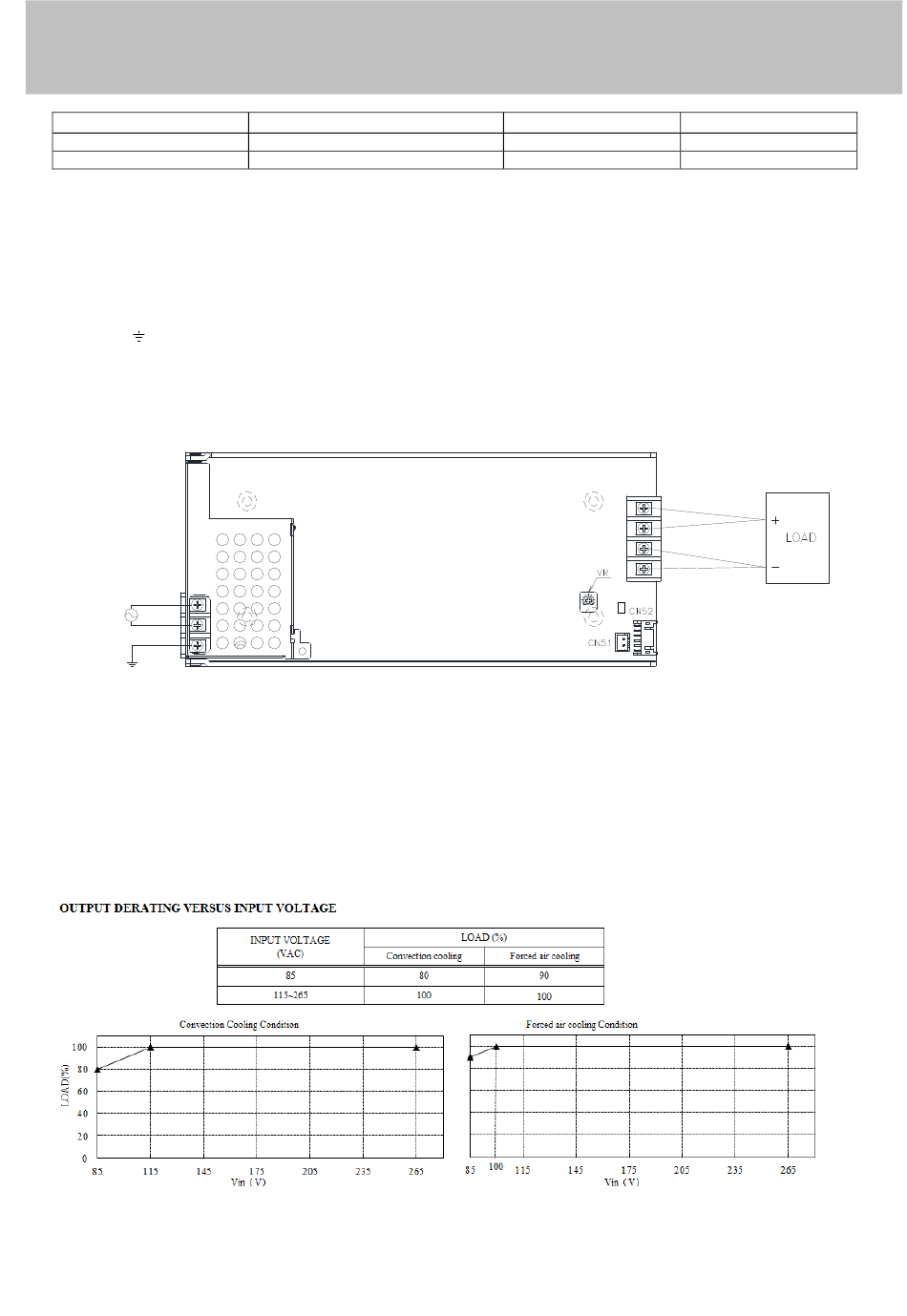

Derating curve of the input voltage
4-2. Output Voltage Range
Output voltage is set at nominal value at shipment. V.adj trimmer (V.adj) can adjust the output voltage within the range. Output voltage range
Mated Housing
XHP-2 (CN51)
PHDR-12VS (CN52)
Recommended torque: M3 screw 0.49N · m （ 5 .0kgf · c m ）
Mated Terminal Pin
SXH-002T-P0.6 (CN51)
SPHD-002T-P0.5 (CN52)
- 2 -
TDK-Lambda
CUS350M
Instruction Manual
Manufacturer
JST
JST
