5-4. Mounting Method

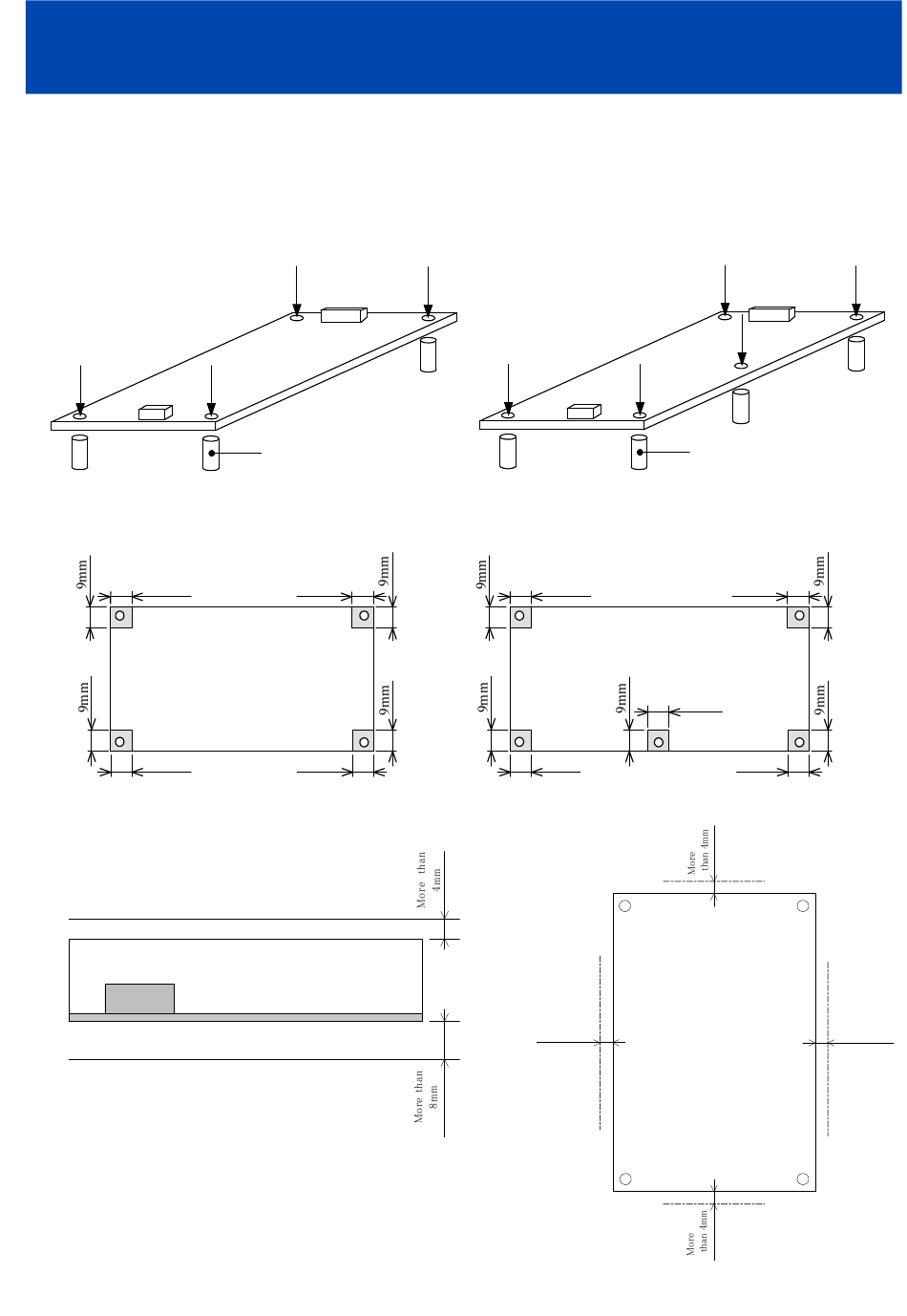

Insert the spacer (Maxφ8) of height more than 8mm to lift the unit. And use all mounting holes A for the unit installation. The vibration spec
is specified under this mounting condition.
Please use mounting hole B as needed. Vibratility-resistant improves
Mounting Holes size
■
ZWS50BAF, ZWS75BAF, ZWS100BAF, ZWS150BAF
4 holes φ3.5mm.
A
A
CN1 (Input)
Allowable area by metal pieces is 9mm from each PCB corners. Refer to figure below.
9mm
9mm
Condition to meet Isolation & Withstand Voltage standard.
■
Keep 4mm space from the surfaces and sides of PCB. Especially,
8mm space is necessary from the solder surface.
If the space is not enough, the specification of isolation and
withstand will not be satisfied.
Take the space in the power supply surroundings and the upper area of
components to keep enough for convection cooling.
A
Height more than
8mm spacer
9mm
9mm
Component side
↑
PCB
ZWS300BAF
5 holes φ3.5mm.
A
A
CN1 (Input)
9mm
9mm
More
than 4mm
-11-
TDK-Lambda
ZWS-BAF Series
Instruction Manual
A
B
A
Height more than
8mm spacer
9mm
9mm
9mm
A
More
than 4mm
