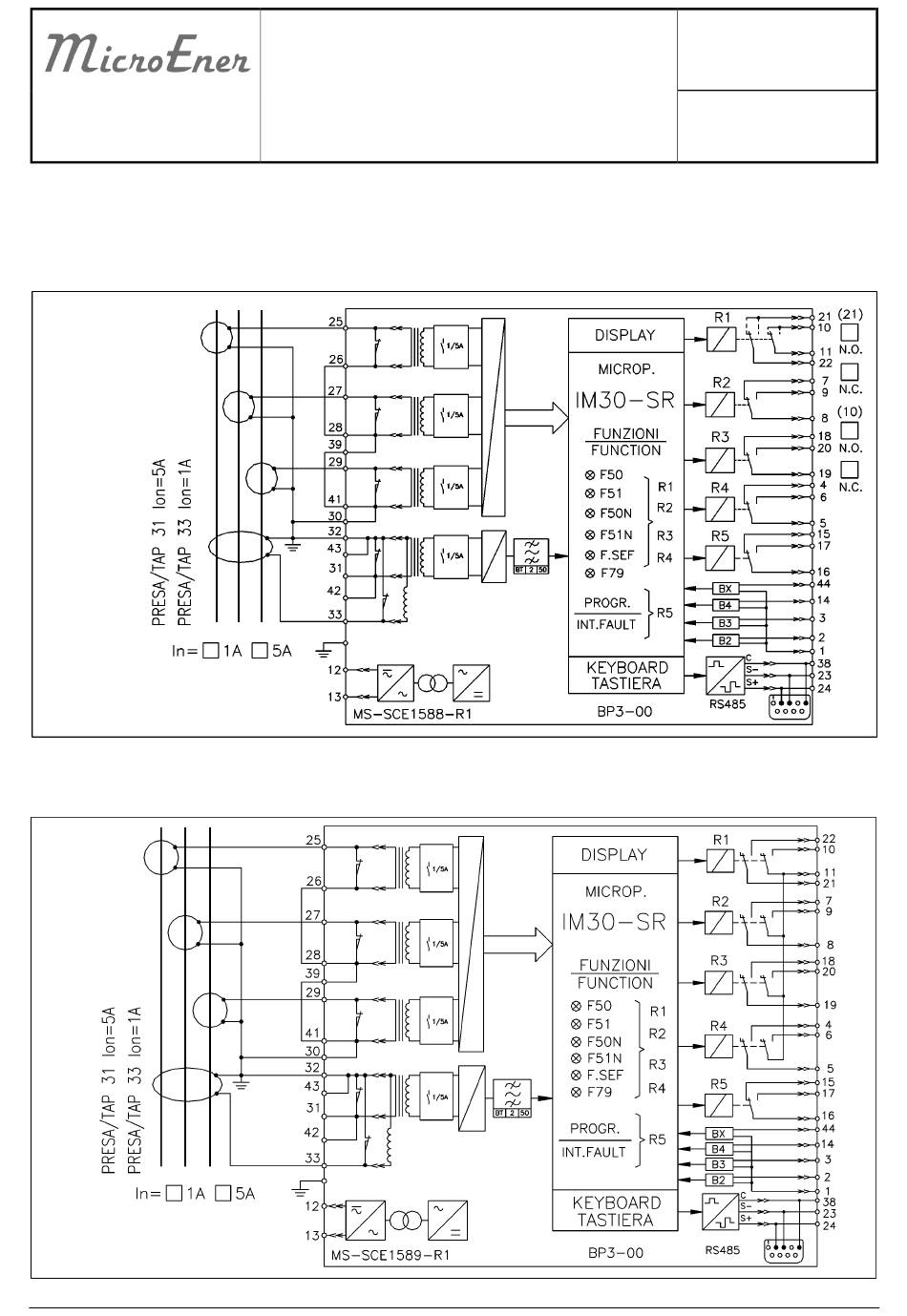

10.1. SORTIES STANDARDS (SCE1588 REV.1)

10.2. SORTIES DOUBLES (SCE1589 REV.1)

Ion = 1A TAP 33
Ion = 5A TAP 31
IM30-SR

10. SCHEMA DE BRANCHEMENT

Doc. N° MU-0094-FR
Rev. 2A
