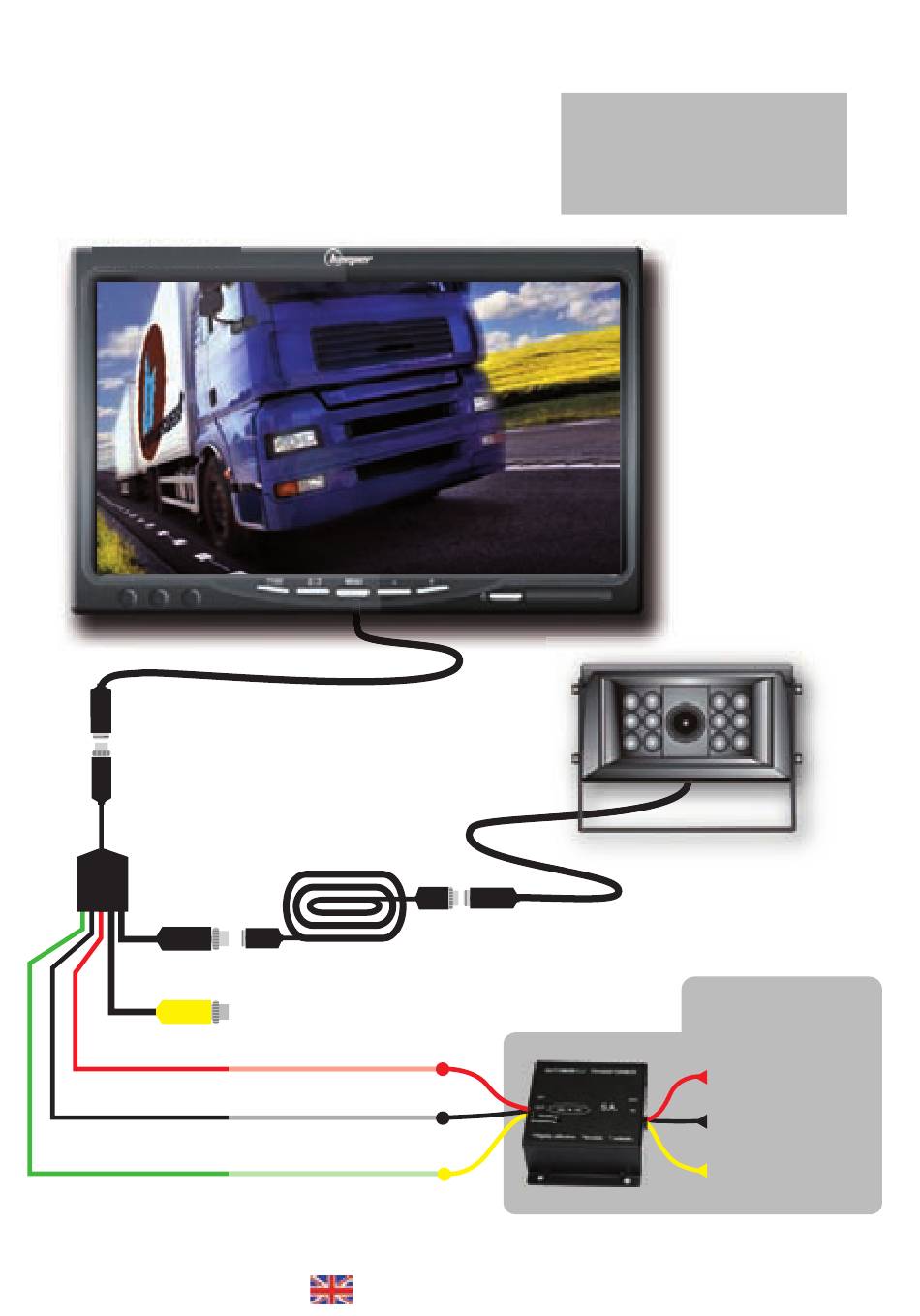

4. • CAMERA & MONITOR CONNECTION
1 • Connect the extension cable of 20 meters between the monitor and the camera
2 • Connect harness (5 wires) on the monitor
3 • Connect the BLACK wire to the ground of the vehicle
4 • Connect the RED wire to ignition +12 V (+15)
5 • Connect the GREEN wire to reversing light source + 12 Volts
Monitor LCD 7"
Extension cable
20 meters
Input VIDEO IN 1
Camera connection (in the set)
Input VIDEO IN 2
Optional camera (not supplied)
RED • + 12 V Ignition
Monitor operation after ignition
BLACK • Ground
Power (-)
GREEN • + 12 Volts Reverse light
Camera comutation when
reverse gear engage
RWEC99X version EN
For a vehicle powered by 24 volts, you must:
- Or choose the package that comes with the
RWEC99X/24 transformer 24 to 12 volts
- Or get the optional transformer 24 volts to 12 volts
reference RX-EC2412.
See transformer connections in Box below
Camera
P.9
OPTION : RX-ECX2412
Transformer 24V -> 12V • 5 amp.
Supplied in set RWEC99X/24
INPUT • +24 Volts
IGNITION
INPUT (-)
GROUND
Input• + 24 Volts
REVERSE LIGHT
