Safety instructions
Dealing with RF radiation
– The measuring device is equipped with a wireless interface.
– The measuring device complies with electromagnetic compatibility regulations and limit values in
accordance with RED Directive 2014/53/EU.
– Umarex GmbH & Co. KG hereby declares that the CenterScanner Plus radio equipment complies with
the essential requirements and other provisions of the European Radio Equipment Directive 2014/53/EU
(RED). The EU Declaration of Conformity can be found in its entirety at the following address:
http://laserliner.com/info?an=cescapl
Transmitter TX
1
2
3
4
5
6
1

Inserting batteries

Transmitter TX and Receiver RECV
Open the battery compartment and insert
batteries according to the symbols. Be
sure to pay attention to polarity.

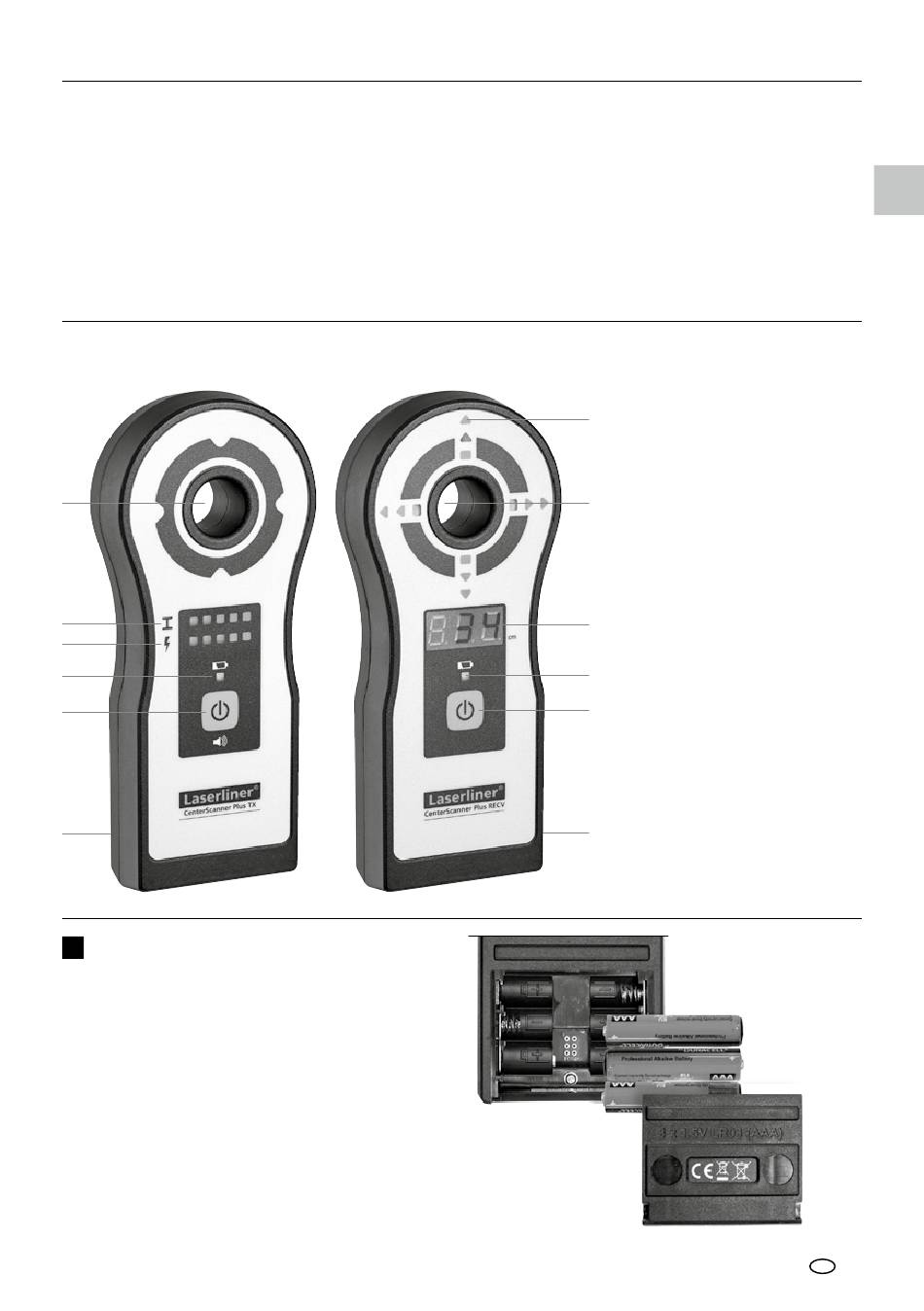

CenterScanner Plus
Receiver RECV Transmitter TX
1 Marking aid aperture
2 LED indicators
7
for metal detection
3 LED indicators
for voltage detection
8
4 LED battery charge indicator
5 Device ON/OFF /
sound ON/OFF
6 Battery compartment (rear)
9
Receiver RECV
7 LED indicators for positioning
10
8 Marking aid aperture
11
9 LC display for drilling depth
10
LED battery charge indicator
11 Device ON/OFF
12 Battery compartment (rear)
12
09
