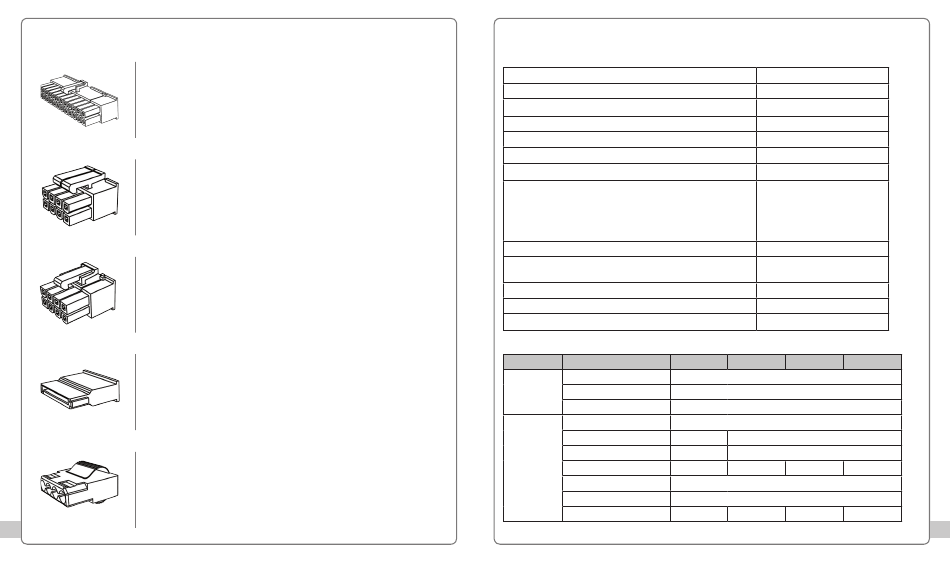

DC Connectors
ATX 24-pin [20+4]
Provides power to the motherboard – can be split into 20-pin and 4-pin connectors, for compat-
ibility with older ATX motherboards.
WARNING: Do not use the 4-pin connector of this cable as a ATX 12V 4-pin connector – they
are incompatible.
ATX12V / EPS12V 8-pin [4+4]
Provides power to modern CPUs – can be split into two 4-pin connectors, for compatibility with
older motherboards and systems with limited power consumption.
NOTE: Some motherboards, typically dual processor systems, may require a secondary 12V
connector – refer to the motherboard manual for details and connector locations.
PCI-E 8-pin [6+2]
Provides power to high-performance graphics cards – can be split into 6-pin and 2-pin connec-
tors for use with graphics cards that require 6-pin connectors, or used together for
graphics cards that require 8-pin connectors.
WARNING: ATX12V and the PCI-E connectors are incompatible and cannot be interchanged –
do not force the connectors.
SATA
Provides power to modern hard drives, optical drives and other devices that require an SATA
power cable.
Peripheral
Provides power to older hard drives, optical drives and other non-SATA devices.
2
Fractal Design Integra M Specification
General Specification
Power supply unit (PSU) specification compliance
Dimensions (mm)
Life expectancy (MTBF) at maximum output load
Power factor correction (PFC)
Fan type
Operating temperature
Operating humidity
Protected against
Efficiency
Standby power consumption
Safety approvals
Electromagnetic compatibility (EMC) standard compliance
Hazardous materials
Power Specification
Voltage
AC Input
Frequency
Current (115V/230V)
3.3V
5V
3.3V and 5V combined
DC Output
12V
-12V
5V Standby (+5Vsb)
Total Power
ATX 2.4
150x86x140
100,000 hours
Active
120mm, sleeve bearing
0-40°C (50°C @80%)
10-90%
Over power
Over voltage
Under voltage
Short circuit
Over current
80 PLUS® Bronze certified
ErP 2013 (<0.5W @230 Vac,
45 mA load on +5Vsb)
UL, cUL, TÜV, GOST
CE, FCC, RCM
WEEE/RoHS compliant
450W
550W
650W
750W
100-240V AC
50-60 Hz
10A/5A
20A
15A
20A
80W
100W
37A
45.5A
54A
62.5A
0.5A
2.5A
450W
550W
650W
750W
3
