USB and audio inputs/outputs
Inputs

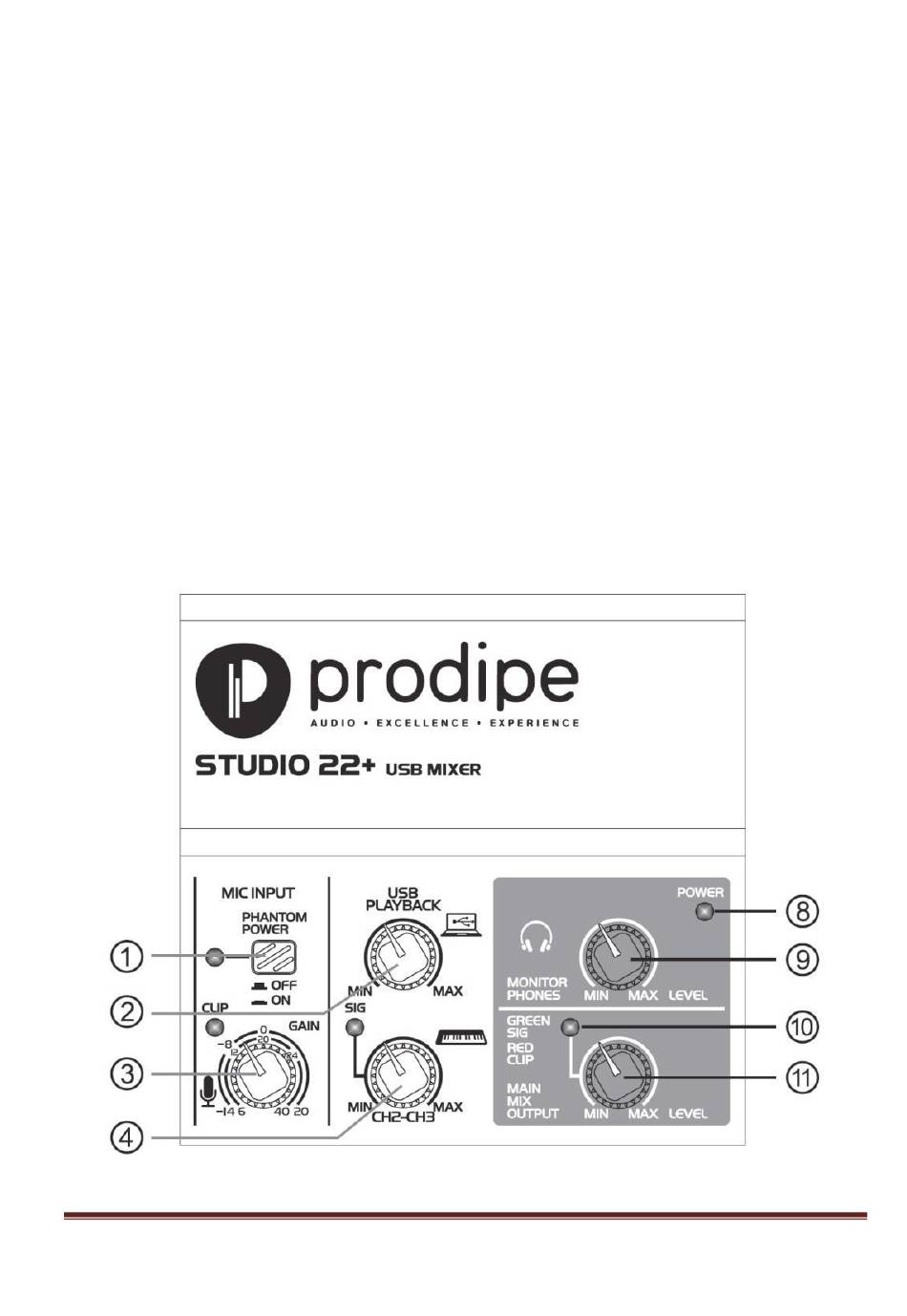

The Studio22+ features a range of inputs for mics, studio mics, mono instruments, stereo
instruments, electronic drums, etc.
One mono input for instrument/mic:
• Balanced XLR combined connector (13) and balanced Jack (14).
• Phantom power with ON/OFF button and LED indicator (1).
• Gain control knob (3).
One stereo line/instrument input:
• Dual 6.35mm Jack socket (balanced/unbalanced) (12).
• Volume knob with LED signal indicator (SIG) (4).
One stereo USB audio port (7):
• Stereo BUS channel (from Mac or PC).
• USB volume knob (2).
