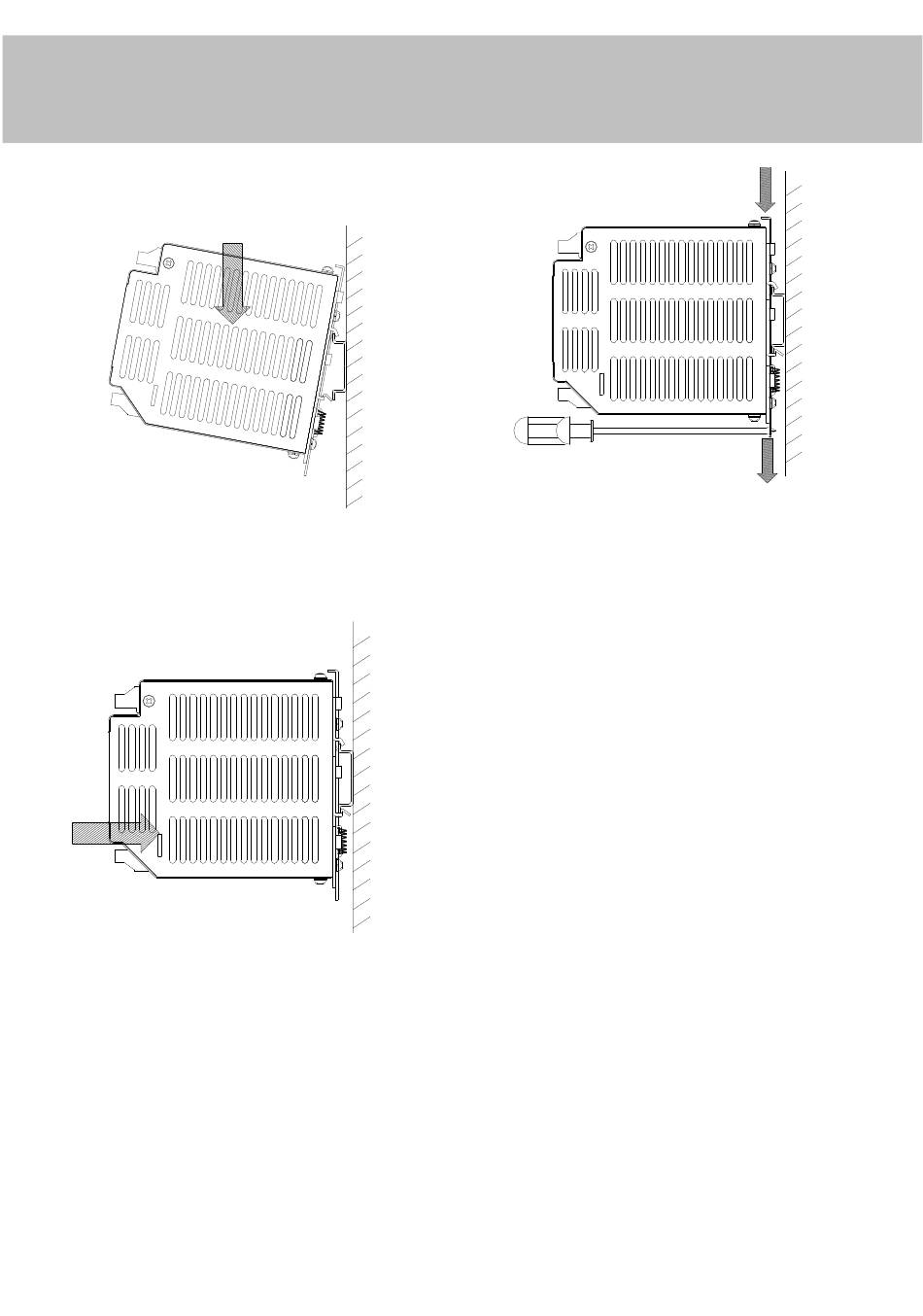

(2) Slide it downward until it hits the stop.
(3) Press against the bottom front side for locking.
Shake the unit slightly to check the locking action.
(4) In order to tighten the unit mounting, the Din rail
stopper attached on both sides of the unit is recom-
mended.
7-2. Power supply removal from DIN RAIL
(1) Switch main power off and disconnect your system from
the supply network. Push the button on the rear upper edge
of the unit or move the removal hole on the rear down
edge downwards by screw driver. Gently lift lower front
edge of the unit (tipping) and remove it.
8.Before concluding that the unit is at fault...
Before concluding that the unit is at fault, make the
following checks.
•
Check if the rated input voltage is connected.
•
Check if the wiring of input and output is correct.
•
Check if the wire material is not too thin.
•
Check if the output voltage control ( V.ADJ ) is properly
adjusted.
•
Check if the output current and output wattage do not
over specification.
•
Audible noise can be heard during Dynamic-Load
operation.
•
Audible noise can be heard when input voltage
waveform is not sinusoidal wave.
9. Notes
1 ) Meet EN50178 over voltage Category III (Primary).
Over voltage Category II (Secondary).
2 ) DLP75/C2E, DLP100/C2E are categorized as class2
output source.
3 )
Radio Interference Suppression Test is not performed.
4 ) When DC input voltage applied, DLP180/E and
DLP240/E keep same reliability level as AC input
application.
10. Repair
In case of damage or repair of this product,
please return to our service center or factory.
TDK-Lambda
DLP/E Series
INSTRUCTION MANUAL
