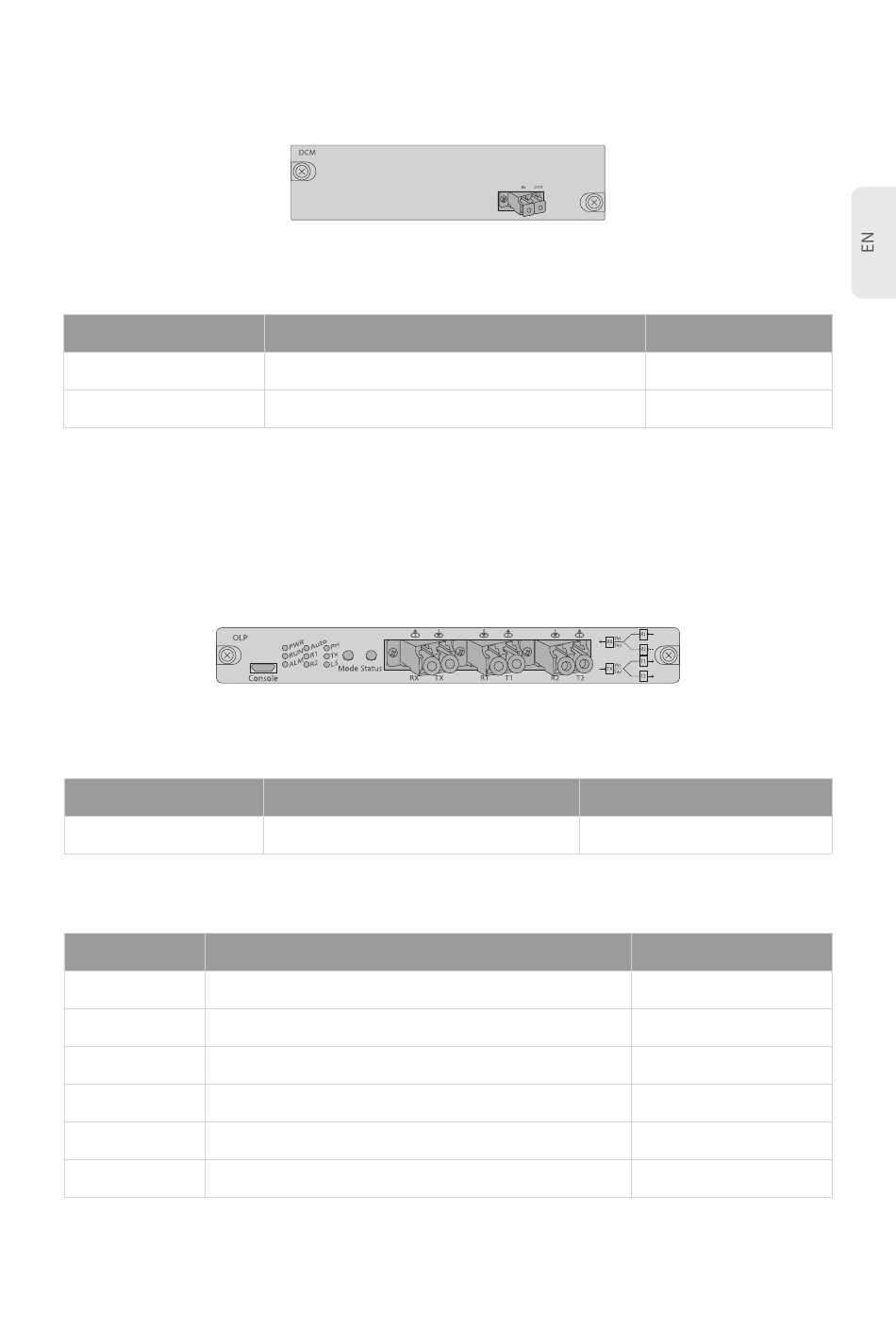

Dispersion Compensation Module (DCM)
Fiber Port
Port Name
In
Out
1+1 Optical Line Protection (OLP)
Communication Port
Port Name
Console
Optical Fiber Port
Indicators
RX
TX
R1
T1
R2
T2
Note
Optical signal input port
Optical signal output port
Note
Debugging & upgrading port
Note
User device signal receiving port
User device signal transmitting port
Main optical signal receiving port
Main optical signal transmitting port
Backup optical signal receiving port
Backup optical signal transmitting port
Port Type
LC/UPC
LC/UPC
Port Type
Micro USB
Connector Type
LC/UPC
LC/UPC
LC/UPC
LC/UPC
LC/UPC
LC/UPC
