1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the DB2! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, don't install or use it and contact your dealer.
2. Use
1. Test the transmission range (max. 100m in open air) prior to mounting the button. Plug-in the receiver and
temporarily mount the button on the doorjamb. Press the button.
2. Mount the button with double-sided tape or screws if the test was satisfactory.
Note : You may wish to change the chime. Follow the instructions below :
Warning : Unplug the receiver from the mains before opening the housing. Reseal the housing and replace the
screw before you plug the receiver in again.
• Move the two jumpers (see 1 in figure below) on the three terminals to select one of three available chimes : ding,
dingdong or "Westminster".
• If another doorbell system on the same channel interferes with the DB2's operation, you should select a new
channel for both the doorbell button and the chime. You can do this by moving the jumpers of both the doorbell
button AND the receiver (see 2 in figure below). Always use the same configuration for the button and the
receiver.
3. Select one of three bell chimes : ding, ding-dong or Westminster.
The information in this manual is subject to change without prior notice.
DB2

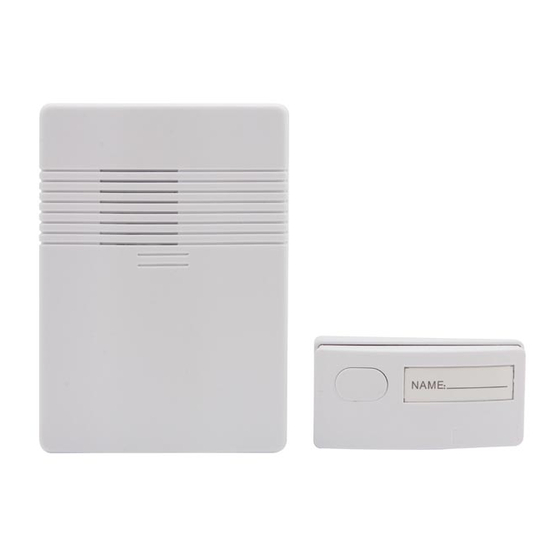

DB2 – WIRELESS PLUG-IN DOORBELL
FIGURE
