Free use transceiver, it is not necessary administrative authorization or licenses for
its use!
This equipment is marked with the symbol of the selective relative classification to the waste of
electric and electronic equipments. This means that this product should be retired mediating for
an European system of selective collection according to the European Directive 2012/19/EU either
with the purpose of being able to be recycled or dismantled to reduce any impact in the
environment. For more information, it can contact with their distributor, salesperson or their local
or regional administration.
The electronic products that have not been object of a selective collection are potentially dangerous for the
environment and the public health due to the possible presence of dangerous substances.

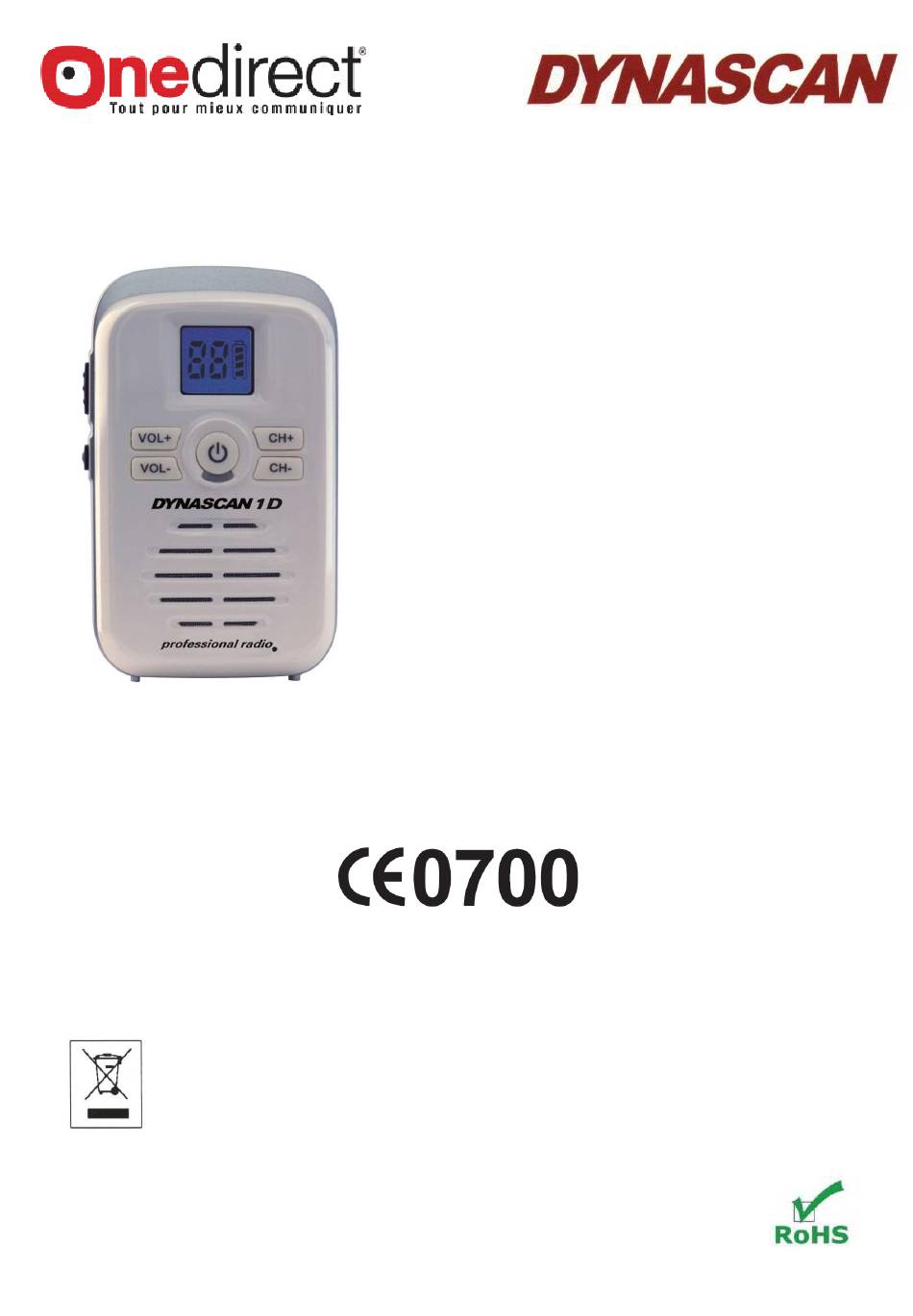

MANUEL
D'UTILISATION

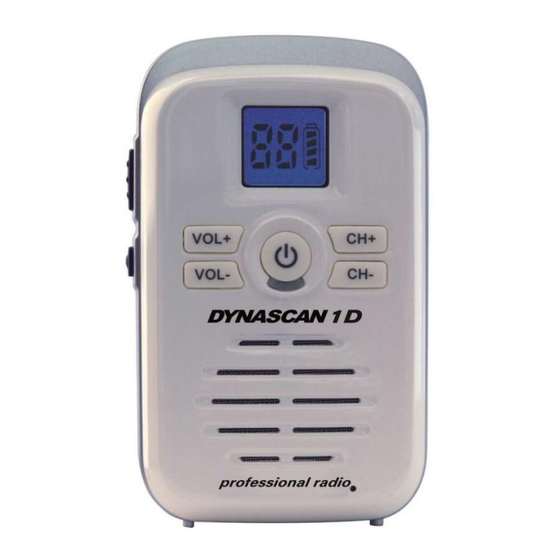

DYNASCAN
1D

Publicité

Table des Matières
loading

Sommaire des Matières pour Dynascan 1D

  • Page 1 MANUEL D’UTILISATION DYNASCAN Free use transceiver, it is not necessary administrative authorization or licenses for its use! This equipment is marked with the symbol of the selective relative classification to the waste of electric and electronic equipments. This means that this product should be retired mediating for...
  • Page 2: Table Des Matières

    INDEX Page no. CONTENU DE LA BOITE ACCESSOIRES OPTIONNELS DEMARRAGE 3.1.- MISE EN PLACE DE LA BATTERIE 3.2.- CHARGEMENT DE LA BATTERIE 3.3.- INSTALLATION D’UN CASQUE (OPTIONNEL) 3.4.- INSTALLATION DU CLIP CEINTURE 3.5.- INSTALLATION DU TOUR DE COU UTILISATION FONCTIONNEMENT DE BASE 5.1.- ALLUMAGE ON/OFF 5.2.- SELECTION DES CANAUX 5.3.- REGLAGE DU VOLUME...
  • Page 3: Contenu De La Boite

    1.- CONTENU DE LA BOITE: Ouvrez la boite avec précaution. Nous vous conseillons de contrôler que vous ayez l’ensemble des articles présentés ci-dessous. Si ce n’est pas le cas, merci de contacter votre conseiller Onedirect. Dynascan D1 Li-Ion battery AC/DC adaptateur...
  • Page 4: Accessoires Optionnels

    2.- ACCESSOIRES OPTIONNELS: Contactez votre conseiller Onedirect et profitez d’une large gamme d’accessoires compatibles avec votre talkie-walkie Dynascan D1. 3.- DEMARRAGE 3.1.- MISE EN PLACE DE LA BATTERIE: Installez la batterie au dos de l’appareil. Pour cela, insérez la batterie par le haut du talkie et appuyer sur le bas afin qu’elle se fixe correctement.
  • Page 5: Utilisation

    4.- UTILISATION: 5.- FONCTIONNEMENT DE BASE: 5.1.- ALLUMAGE: Allumer l’appareil: appuyez sur le bouton [ ] pendant 3 secondes pour allumer l’appareil. Un son retentit et l’écran s’allume. Eteindre l’appareil: appuyez sur le bouton [ ] pendant 3 secondes pour éteindre l’appareil. Un son retentit et l’écran s’éteint.
  • Page 6: Transmission

    5.4.- TRANSMISSION: Appuyez et maintenez enfoncé le bouton [PTT] et parlez en direction du talkie. La LED rouge s’allume. Relachez le bouton [PTT] pour recevoir. 6.- RACCOURCI CLAVIER: Suivez les instructions ci-dessous pour associer le bouton de fonction situé sur le coté du talkie à une fonctionnalité: Note: - Afin de paramétrer la fonction, veillez a bien appuyer 2 fois (comme montré...
  • Page 7: Fonction Scan

    7.2.- FONCTION SCAN: Quand vous définissez la fonction « SCAN », appuyez le bouton de fonction pour commencer à scanner les fréquences et ré appuyez dessus pour arrêter le scan. Utilisez les boutons [CH+] et [CH-] pour changer la direction du scan. La LED clignote lorsque le scan est en cours. 7.3.- SURVEILLANCE DE PIECE:...
  • Page 8: Time Out Alert (Toa)

    7.9.- TIME OUT ALERT (TOA): Fonction qui nécessite le logiciel de programmation vendu séparément. Veuillez contacter votre commercial Onedirect. 7.10.- BLOCAGE DE CANNAL (BCL): Fonction qui nécessite le logiciel de programmation vendu séparément. Veuillez contacter votre commercial Onedirect. 7.11.- INDICATEUR DE NIVEAU DE BATTERIE: Le niveau de batterie est indiqué...
  • Page 9: Table Des Frequences

    8.1.- TABLEAU DES FREQUENCES: Channel (CH) Frequency (MHz) 446.00625 446.01875 446.03125 446.04375 446.05625 446.06875 446.08125 446.09375 www.onedirect.fr...
