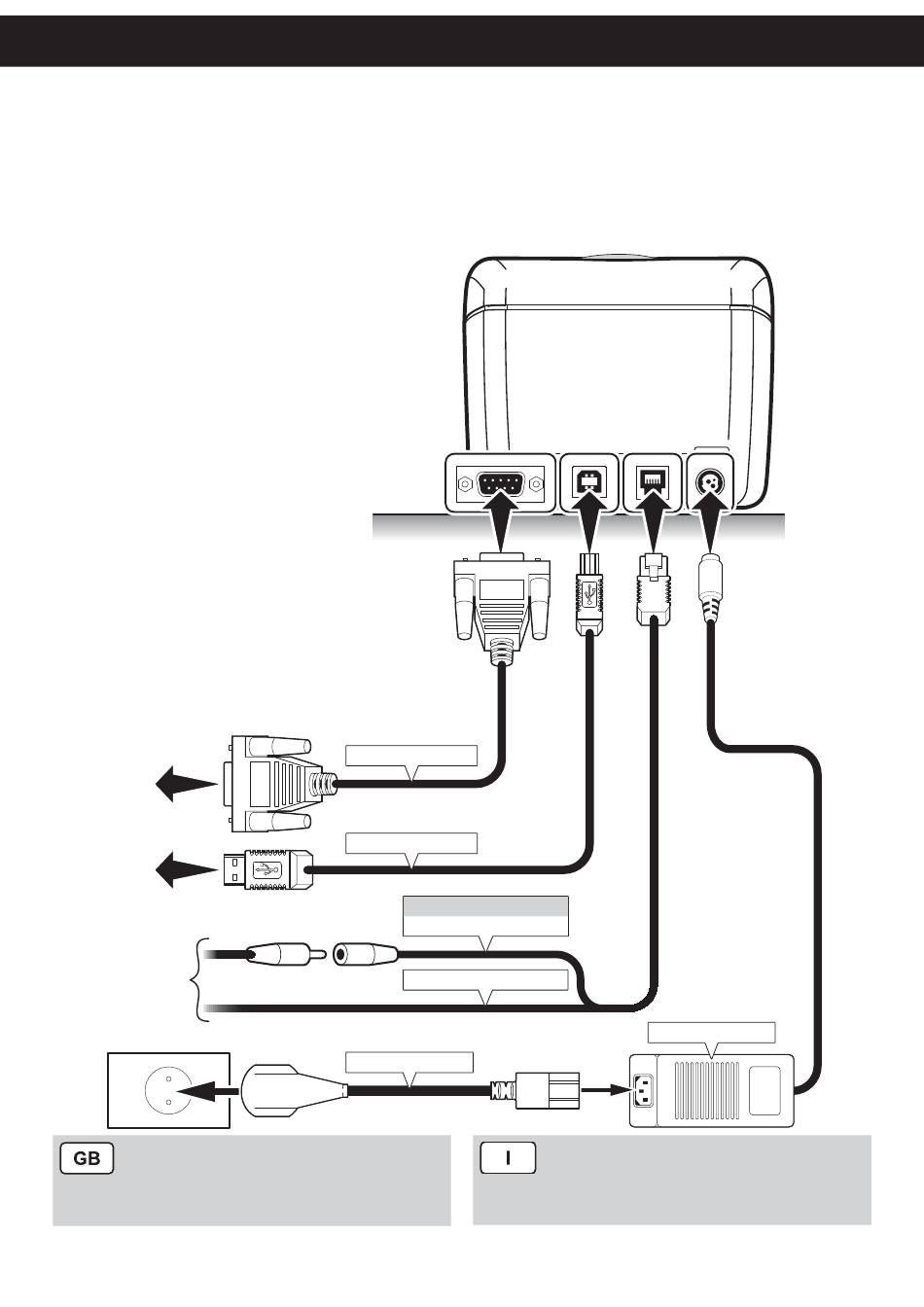

CONNECTIONS
Collegamenti
RS232
USB
CASH
DRAWER
NOTE: If RS232 and USB connectors are inserted, communication
port is USB.
Refer to the service manual for the pinout of the connectors
COM1
Serial standard cable
USB standard cable
CBADAT-RJ11-JACK
Adapter cable for cash drawer
Cable supplied with drawers
Power supply cable
NOTA: Se i connettori RS232 e USB sono inseriti, la porta di comuni-
cazione è la USB.
Per il pinout dei connettori fare riferimento al manuale assistenza
13
INSTALLATION
USB DK
Q3 power supply
