Step

Assemble Cross Bracing

3
1. Gather 4 end rail clamps, 44.5" plain tube, 44.5"
swedged tube , 2 carriage bolts and 2 nuts.
2. Start at one side of the kennel. Attach 2 end rail
clamps to top frame of the kennel. Position end rail
clamps in the center of the panel.
3. Insert 44.5" swedged tube into end rail clamp and
tighten with 1 carriage bolt and 1 nut.
4. Insert 44.5" plain tube over swedged tube.
5. Attach 2 end rail clamps to top frame of the opposite
side of the kennel. Insert plain tube into end rail
clamps and tighten with 1 carriage bolt and 1 nut.
__________________________________________________________________________________________________

Add Tarp and Secure with Ball Bungees

Step
4
1. Gather tarp and 18 ball bungees.
2. Drape short side of tarp over frame.

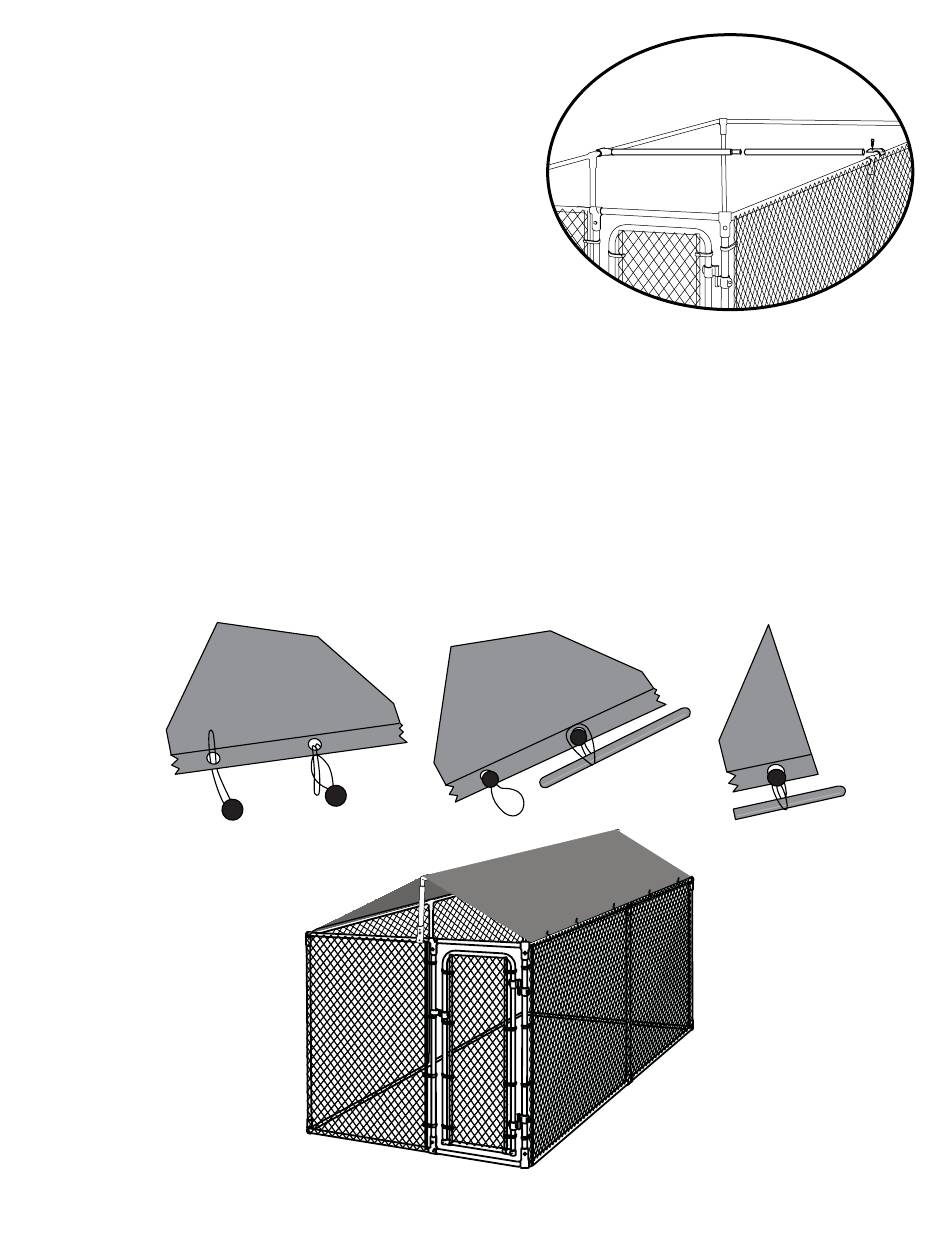

3. Work on one side of the kennel. Pass the cord through the grommet from the bottom up (A). Pass the
cord back through the opening immediately below the ball (B). Pull the end of the cord until the ball is
resting tightly against the grommet (C). The ball bungee is now "permanently" attached to the tarp.
4. Wrap cord around the kennel frame and then stretch over the ball to secure (D). Repeat steps 3 and 4
to attach all bungees to the tarp and kennel frame.
5. Once one side of the tarp is secured to the kennel, repeat steps 3 and 4 on the other side.
Important: Tarp is not designed to withstand the weight of snow. Remove cover in winter.
Anchors are strongly recommended. PetSafe
B
A
® Anchor Kit sold separately.
C
www.petsafe.net
D
