Channel Master CM-7778HD Amplify+ Manuel D'installation

Amplify+ Instruction Sheet
Amplify+ Hoja de Instrucciones
Amplify+ Mode d'emploi

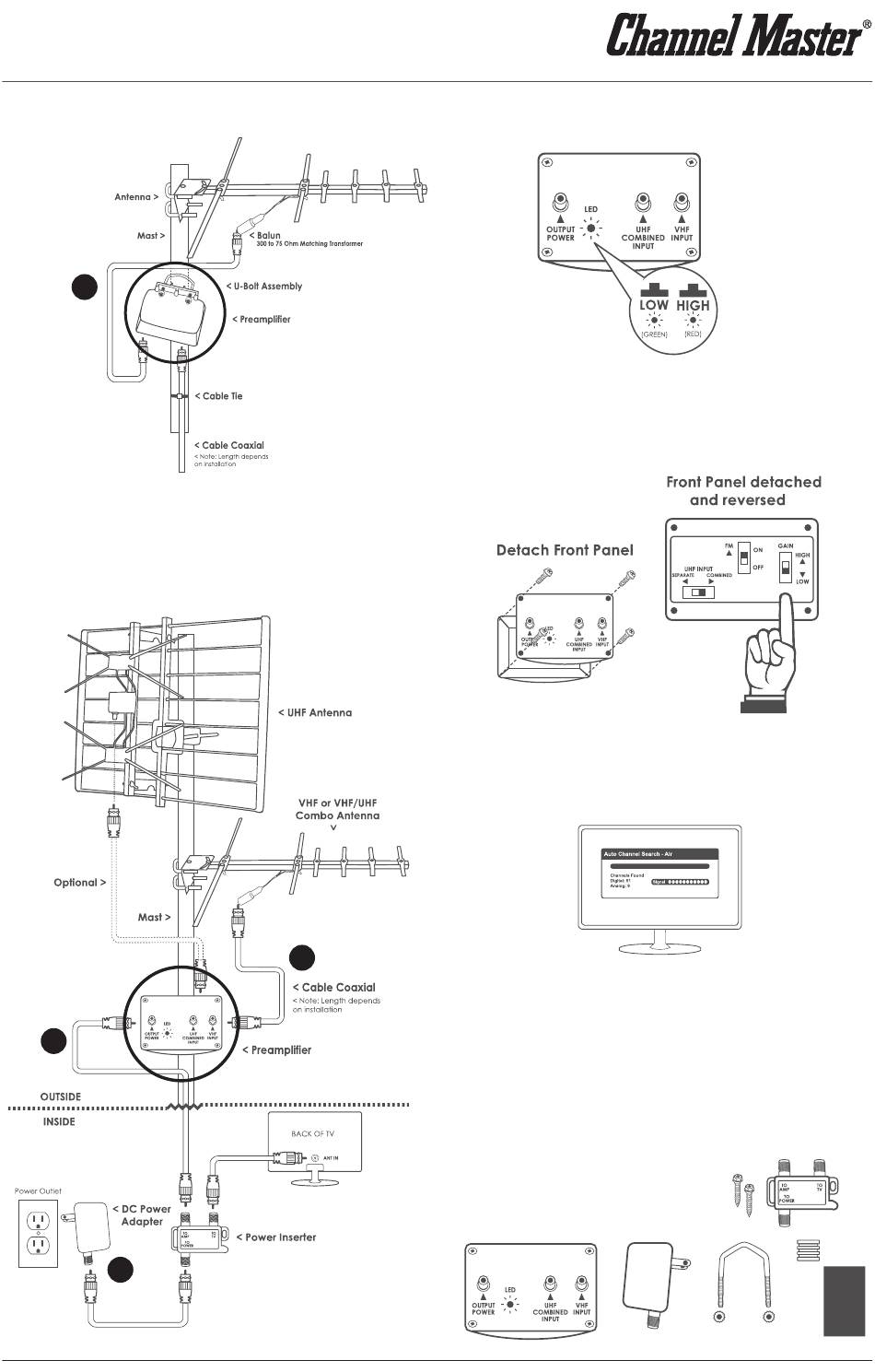

Installation:
1. Use the U-bolt to connect the Amplify+ to the mast pole with the ports facing down.
1
2. Connect a short coaxial cable from your antenna to the coaxial port labeled
"UHF Combined Input" as indicated on the label. If you are installing two separate
antennas, connect the VHF antenna to the "VHF Input" port and the UHF antenna
to the "UHF Combined Input" port.
3. Connect a coaxial cable from the coaxial port labeled "Output/Power" on the
Amplify+ to the coaxial input labeled "To Amp" on your Power Inserter.
4. Plug the DC power adapter into a power source and connect a coaxial cable
between the power plug and the Power Inserter.
3
AMPLIFY+ TO POWER INSERTER
Amplificar a insertor de potencia
Amplifier Power insertion
4
POWER ADAPTER TO
POWER OUTLET
Adaptador de corriente a la
toma de corriente
Adaptateur à la prise de
courant
ChannelMaster.com
| 877.746.7261
OUTDOOR ANTENNA TO AMPLIFY+
Antena al aire libre para amplificar
Antenne extérieur pour amplifier
2
POWER INSERTER TO TV
Insertor de potencia a la TV
Puissance d'insertion à la télévision
POWER INSERTER TO POWER ADAPTER
De inserción de energía al adaptador de corriente
Puissance d'insertion à l'adaptateur
© 2017 Channel Master, LLC. Channel Master is a registered trademark. Specifications subject to change. All rights reserved. © 2017 Channel Master. Channel Master es una marca registrada. Especificaciones sujetas a cambio. Todos los derechos reservados. © Channel
Master, 2017. Channel Master est une marque déposée. Les caractéristiques peuvent être modifiées sans préavis. Tous droits réservés. Pub CM7778HD.IS.201710
5. Ensure the LED is powered on. (You may need to cover in order to see the light). If
the light is on, this means your Amplify+ is now functional. If the green light does
not power on, double check that the power source is securely connected and
that the receptacle has power.
6. Open the front panel and adjust the switch on the inside of Amplify+ to set the
gain adjustment to the desired level. We recommend the default low setting for
most applications. The high setting should only be used in extreme deep fringe
areas. If you are installing two separate antennas, you will also need to adjust
the UHF input switch to "SEPARATE". The FM Trap switch will allow you to block FM
signals when set to "ON" and to pass FM signals when set to "OFF".
7. Ensure your television, set-top box or DVR is set to scan Antenna channels,
NOT CABLE. In your device set-up menu it will typically ask if you want to scan
Antenna/Air/Broadcast or Cable. You will need to choose the option that says
Antenna, Air or Broadcast. Proceed with the Auto Channel Scan.
8. Check to make sure all of the desired channels are being received. If you think
you are missing a channel, try the alternative gain setting and re-scan channels.
Note: The use of Amplify+ will strengthen weaker signals, but does not always
mean that you will get more channels. This depends on the location of your
broadcast towers and the signal frequency that they use.
Contents:
1. CM-7778HD Amplify+
4. Mounting U-Bolt
CM-7778HD Amplify+ Montaje U-Bolt
CM-7778HD Amplify+ Montage U-Bolt
2. DC Power Adapter 5. (2) Mounting Screws
Adaptador de corriente DC (2) Tornillos de montaje
Adaptateur secteur DC (2) Vis de montage
3. Power Inserter 6. (7) Weather Boots
Inserción de energía (7) Weather Boots
Inserteur de puissance (7) Bottes météo
1. 2.
GAIN:
HIGH (RED LIGHT)
LOW (GREEN LIGHT)
GANANCIA:
alta (luz roja)
baja (luz verde)
GAIN:
élevé ( lumière rouge )
faible ( lumière verte )
7. Instruction Sheet
Hoja de Instrucciones
Mode d'emploi
3.
5.
6.
4.
7.
Instruction
Sheet
