Low Frequency Enclosures
Full Range operation

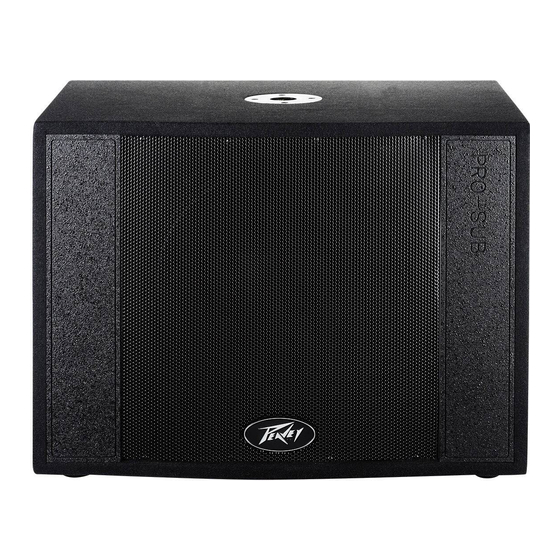

Thank you for choosing Peavey's Messenger Pro™ Sub low frequency speaker enclosure as part of your sound reinforcement system.
We take great pride in the design and manufacture of our units and you can expect top performance and reliability. Your Messenger
Pro™ enclosure has been rigorously tested before packing and despatch to your dealer. A built in crossover is fitted to optimise
performance under variable conditions. The nominal impedance of the Messenger Pro™ Sub is 4 ohms.
Hi output
We have equipped the Pro™ Sub with a high pass output socket. This provides a filtered output signal for operating a satellite enclosure
with a minimum impedance of 4 ohms. Enclosures such as the Pro 12/15 are recommended. The design of the crossover ensures the
total load presented to the power amplifier is never less than a nominal 4ohms.
Operation
The full range signal from the power amplifier is connected to the input of the Messenger Pro™ Sub. A dedicated lead with a 1/4" Jack
plug or Neutrik™ Speakon at each end is required to connect the hi output from the Messenger Pro™ Sub to the input of the satellite. The
satellite must be configured in full range mode. The full range signal from the power amplifier is filtered by the Messenger Pro™ Sub on-
board crossover into a high and a low signal. The low pass signal is supplied to the woofer in the Messenger Pro™ Sub, high pass
signals are supplied to the satellite and filtered again by the satellite's own passive crossover.
Satellite pole facility
We have equipped our Messenger Pro™ Sub enclosures with a satellite pole facility. Suitable satellites for pole mounting are the Pro
12/15. Other larger enclosures may affect the stability of the system. Suitable pole is the PS-B, part number #15900380.
Due to our policy of continuing development, features and specifications are subject to change without notice.
Messenger Pro™ Sub
Low Frequency Enclosures
OPERATING INSTRUCTIONS
Enceintes basses fréquences
GUIDE D'UTILISATION
Tieffrequenz Boxen
BEDIENUNGSANLEITUNG
Cajas de baja frecuencia
INSTRUCCIONES DE USO
CAUTION! DO NOT USE ANY SATELLITE POLE OTHER THAN THE PS-B.
IN CASE OF DIFFICULTY CONSULT YOUR AUTHORISED PEAVEY DEALER
Neutrik is a registered Trademark of NEUTRIK A.G.
