PA620-04-01B
Note: CE MARKING
CE Marking, when applied to a product covered by this handbook indicates compliance with the following:
Low Voltage Directive in that it is complies with EN60950-1.

EMC Directive

Restriction of the use of certain Hazardous Substances Directive
ATEX Directive (applicable products only identified by the ATEX Ex mark)

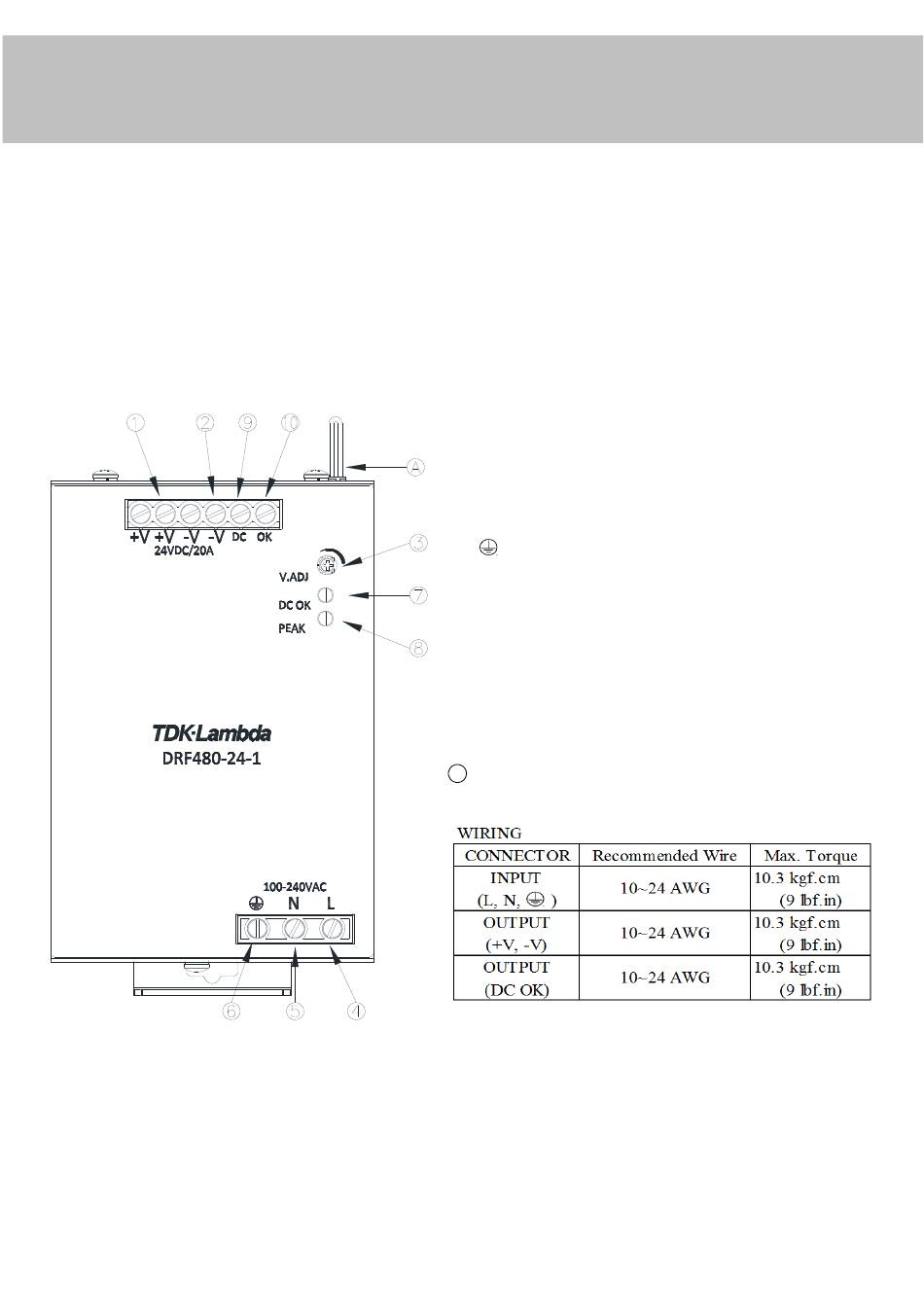

2. Terminal Explanation
2-1. DRF480

+V: +Output terminal

- V: - Output terminal

V.ADJ: Output voltage adjust trimmer
The output voltage rises when trimmer is
turned clockwise.

L: AC Input terminal
Live line (fuse in line)

N: AC Input terminal
Neutral line

: Protective Earth
Connect to safety ground of apparatus
or equipment.

DC OK : Green LED lights when Output
Voltage on and within specification

PEAK : Red LED lights when Output
Current peaks

DC OK: Relay contact

DC OK : Relay contact
A
Signal Connector – see section 12
Note: According to EN/UL60950-1 multi-
strand flexible cables connected to the input
require ferrule.
