Part 4. Functions and operation:

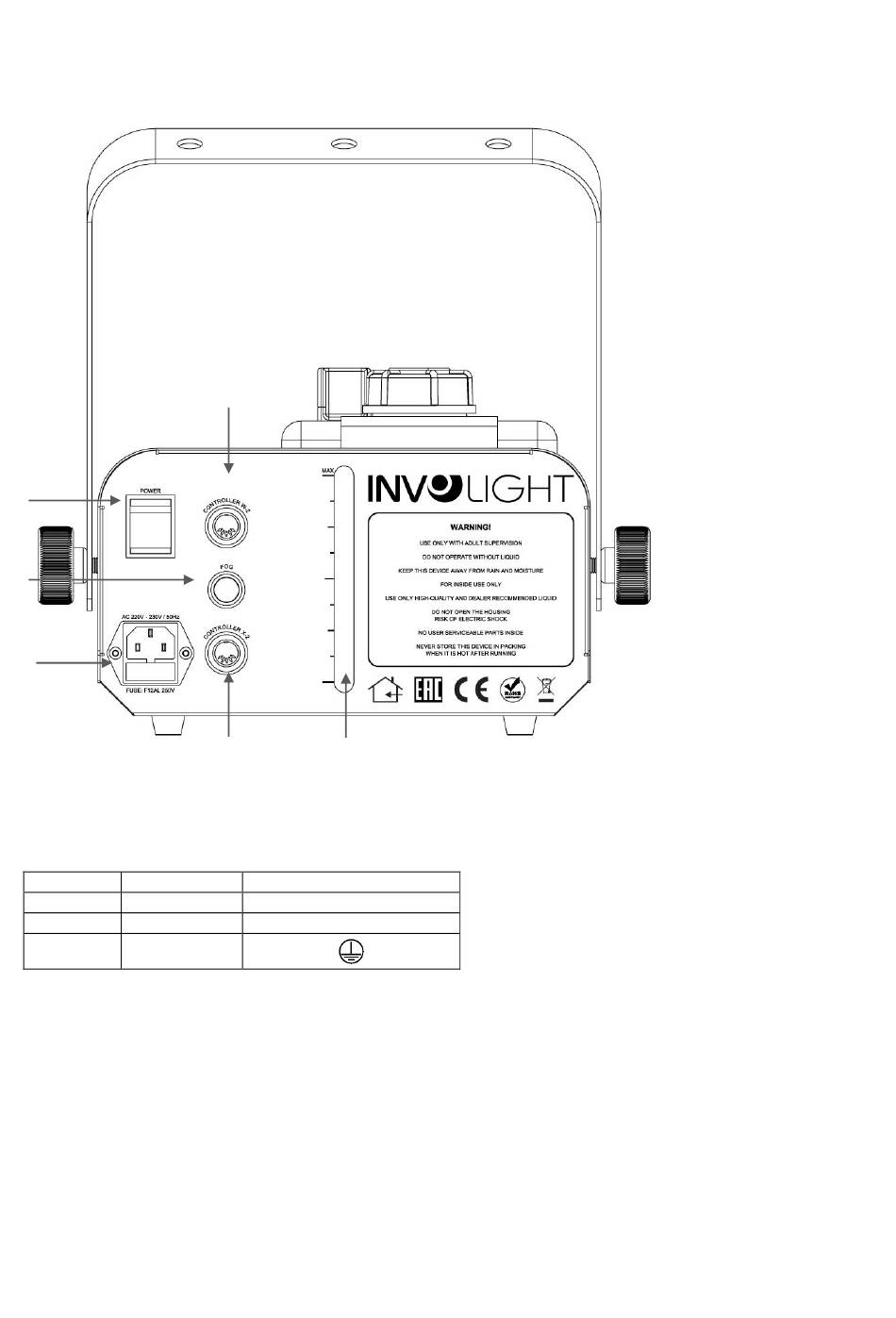

4.1 Housing Back:

3.
2.
1.
1. POWER IN:
IEC current input socket with fuse holder for F12AL250V fuse.
The assignment of the connection leads is as follows:
Leitung Pin
Braun Außenleiter
Blau Neutralleiter
Gelb/Grün Schutzleiter
The protective conductor must be connected!
IMPORTANT: Replace the fuse only with a fuse of the same type and with the same values (printed on the unit). If
the fuse is triggered repeatedly, please contact an authorized service center.
2. Hand release button:
3. Power switch:
switch switches off unipolar, so the power plug must be unplugged before opening the housing to avoid electric
shock.
4. Input wireless remote control (W-2):
5. Input cable remote control (X-2):
6. Tank level indicator:
would destroy the pump. Such a case is not covered by the warranty!
4.
5. 6.
International
L
N
Used for manual triggering of the fog.
ON: Indicates that the power is on. OFF: Indicates that the unit is switched off. The power
Here you can see the filling status of the tank. Never let the machine run dry! This
This input is used to connect the radio remote control (W-2).
This input is used to connect the cable remote control (X-2).
