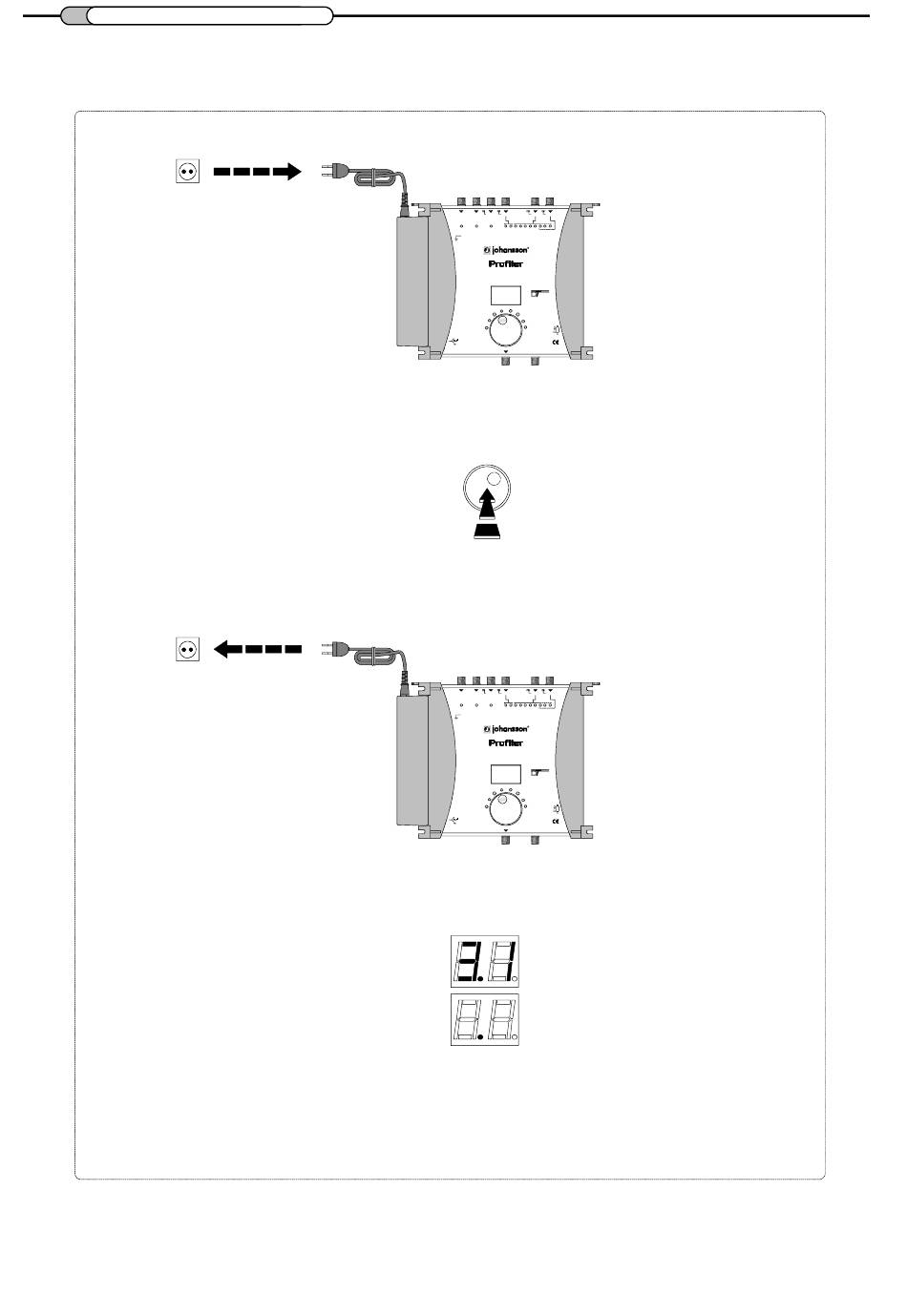

GENERAL RESET

This function can reset all clusters and attenuators to zero.
Note : security code is not reset.
- Disconnect the mains power.
- Keep on pressing the button,
- until the mains is connected again.
- Release the button.
B I-II B III VHF-UHF UHF1 UHF2 UHF3
24V 24V 24V 24V
I-II III VHF-UHF 1 2 3 4 5 6 7 8 9 10
UHF Clusters
GND
R
MULTI CHANNEL
PROGRAMMABLE FILTER-AMPLIFIER
Digital
Terrestrial
Ref.: 6600
Stop Channel Manual Level
Start Channel Auto Level
Select Filter Data Import
Split UHF Exit
15V IN
Output Test
(-30 dB)
B I-II B III VHF-UHF UHF1 UHF2 UHF3
24V 24V 24V 24V
I-II III VHF-UHF 1 2 3 4 5 6 7 8 9 10
UHF Clusters
GND
R
MULTI CHANNEL
PROGRAMMABLE FILTER-AMPLIFIER
Digital
Terrestrial
Ref.: 6600
Stop Channel Manual Level
Start Channel Auto Level
Select Filter Data Import
Split UHF Exit
15V IN
Output Test
(-30 dB)
The software version is now displayed
followed by a dot.
