a) Connection through the cinch inputs

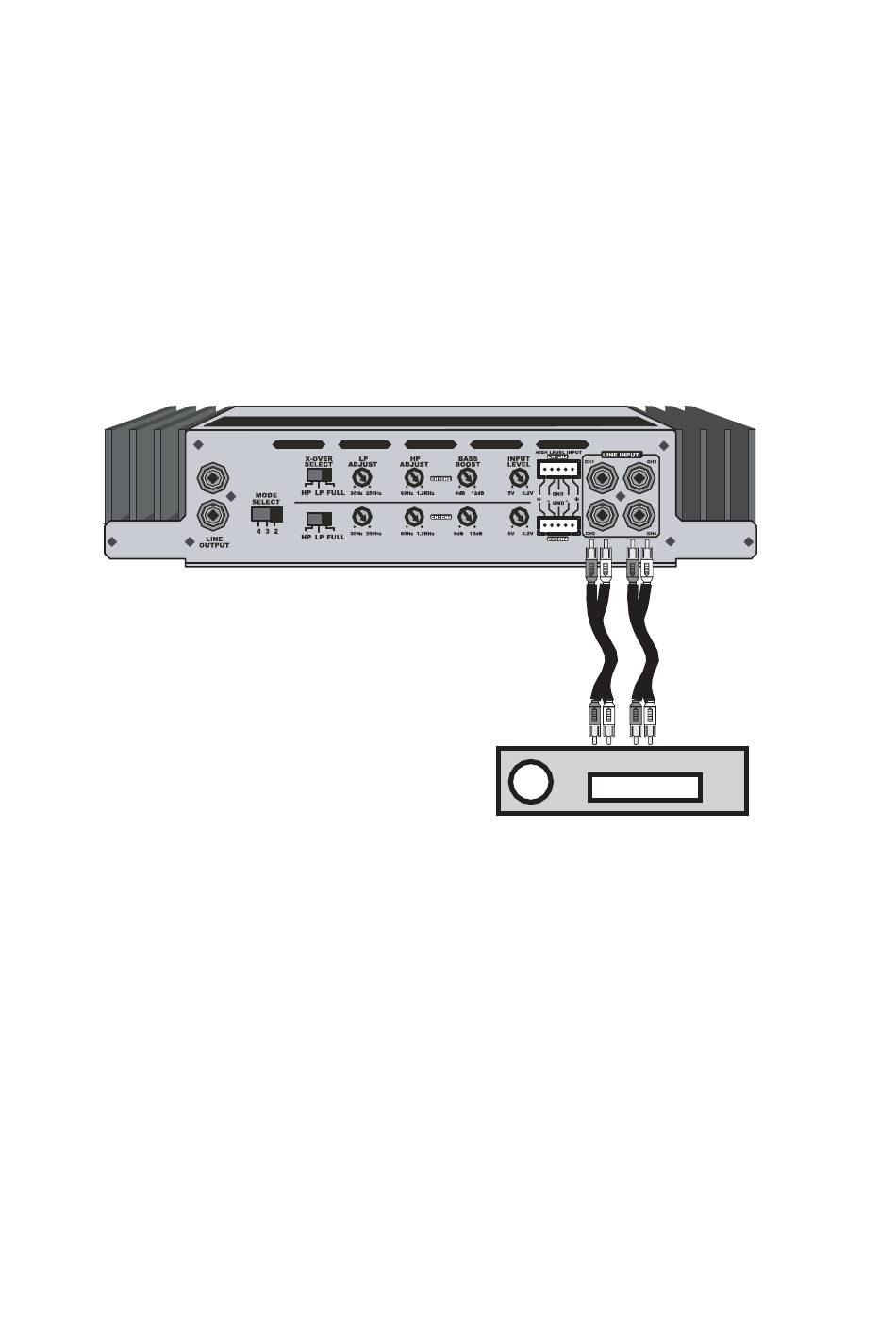

• Connect the cinch outputs of you car radio to the cinch inputs of the amplifier.
Posterior outputs > connection LINE INPUT CH3/CH4 (9)
CH3 = left input
CH4 = right input
Anterior outputs > connection LINE INPUT CH1/CH2 (9)
CH1 = left input
CH2 = right input
• If your car radio does not have 4 cinch outputs, please use the Y-adapter.
b) Connection through the loudspeaker inputs
• Plug the supplied loudspeaker connecting cables into the connections HIGH LEVEL INPUT (8) of the amplifier.
• Connect the front loudspeaker outputs of your car radio to the ends of the cables of the adapter for CH1/CH2 and
the rear loudspeaker outputs to the end of the cables of the adapter for CH3/CH4.
grey > left positive loudspeaker output
brown> left negative loudspeaker output
white > right negative loudspeaker output
green > right positive loudspeaker output
black > connect to earth
