1

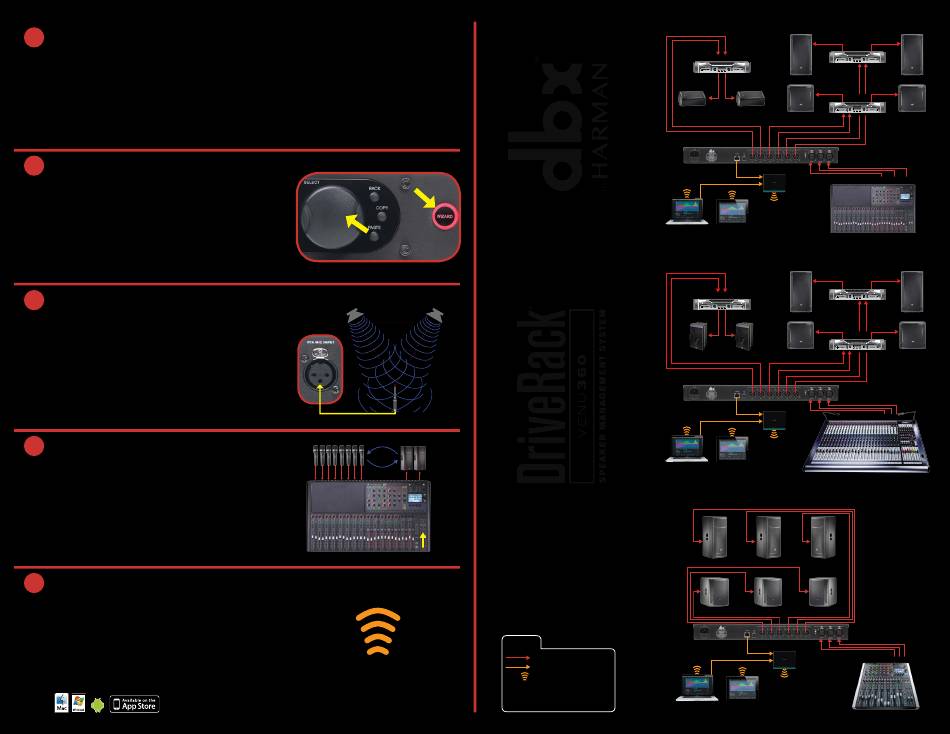

GETTING STARTED
Before making any audio connections, perform the following:
•
Ensure power to your mixer, DriveRack, and amplifier(s) are turned off.
•
Turn the attenuators on all power amplifiers or powered speakers all the way down.
•
Make connections per your application using the system diagrams to the right for reference.
•
Power up the mixer, then the DriveRack, then your amplifiers or powered speakers.
2
RUN THE SETUP WIZARD
•
Press the WIZARD button.
•
Select the "RUN ALL WIZARDS" option using the DATA WHEEL.
•
Follow the on-screen instructions and make the desired configuration
selections.
3
CALIBRATE THE SYSTEM
•
When you reach the Level Assist/AutoEQ™ Wizard, connect the optional
dbx RTA-M measurement microphone to the RTA MIC INPUT and place
it in a mic stand. If you don't have the RTA-M mic, skip Level Assist/
AutoEQ and go to step 4.
•
Place the RTA-M microphone as shown in the illustration to the right –
the placement of the microphone should form an equilateral triangle with
the Front of House loudspeakers. If performing AutoEQ on monitors,
follow the DriveRack's on-screen instructions.
4
RING OUT THE SYSTEM FOR FEEDBACK
When you reach the AFS™ (Advanced Feedback Suppression) Wizard,
ensure all performance microphones are connected and follow the on-
screen instructions to ring out the system for potential feedback. All mics
should be active, but there should be no signal present at the microphones
during this procedure.
5 CONNECT TO YOUR NETWORK
Connect the DriveRack's Ethernet port to your computer, network switch,
or wireless router for network setup and control using the free VENU360
control app for compatible Mac ® , Windows ® , Android ®
Visit www.dbxpro.com for further details.
NOTE: The VENU360's network address can be configured
manually or dynamically using a DHCP enabled switch or router.
By default, DHCP is enabled. Network settings can be changed in
the Utility menu.
© 2015 Harman. dbx Professional Products is a registered trademark of Harman. All rights reserved. All features and specifications
are subject to change. Macintosh, iPad, iTunes, and App Store are trademarks of Apple Inc., registered in the U.S. and other countries.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Windows is a registered
trademark of Microsoft Corporation in the United States and other countries. Android is a trademark of Google Inc..
PRESS
TURN & PRESS
TO SELECT
Left Speaker
, and iOS ® devices.
Right Speaker
RTA-M Mic
Placement
LEGEND
Analog Audio Connection
Ethernet Connection
Wi-Fi Signal
L Left Signal
C Center Signal
R Right Signal
MONO 2-WAY FOH + 2 STAGE MONITORS
L
1 2 High Amp
Stage Monitor Amp
Left Main Speaker
1 2
L Low Amp
Stage Monitor 1 Stage Monitor 2
Left Sub Speaker
R
Wireless Router
or
or
Windows or Mac iOS or Android
® ® ® ®
Computer Tablet
STEREO 2-WAY FOH W/AUX-FED SUB + 2 ZONES OR DELAYS
L
1 2 High Amp
Zone or Delay Fill Amp
Left Main Speaker
1 2
L Low Amp
Zone or Delay Fill 1 Zone or Delay Fill 2 Left Sub Speaker
R
Wireless Router
or
or
Windows ® or Mac ® iOS ® or Android ®
Computer Tablet
LCR 2-WAY FOH
L C R
Left Powered Speaker Center Powered Speaker Right Powered Speaker
L C R
Left Powered Sub Center Powered Sub Right Powered Sub
Wireless Router
or
or
Windows ® or Mac ® iOS ® or Android ®
Computer Tablet
R
R L
Right Main Speaker
R
Right Sub Speaker
L
Mixer Aux 2 Aux 1 Mono
R
R L
Right Main Speaker
R
Right Sub Speaker
L
Mixer Aux R L
Mixer R C L
