IMPORTANT!

The Voltage Control Module (VCM) in this kit is designed to be self switching at a pre-set voltage input.
With the engine started, the switched output (e.g. caravan fridge or alternative), pin 10, will switch on
at a preset figure of 13,2 volts.
When the engine is switched off, the switched output will remain live until the vehicle battery voltage
drops to a preset figure of approx 12,7 volts.
NOTE: The cut-off voltage depends on the condition of the vehicle battery, power consumption of the
fridge etc. In all cases, the cut-off figure is preset so the vehicle engine can be started at any time.
For vehicles equipped with smart alternators and battery monitoring devices, the general operating
voltage may not be high enough to switch on the relay.
Therefore, we recommend turning on the headlights when towing.
11

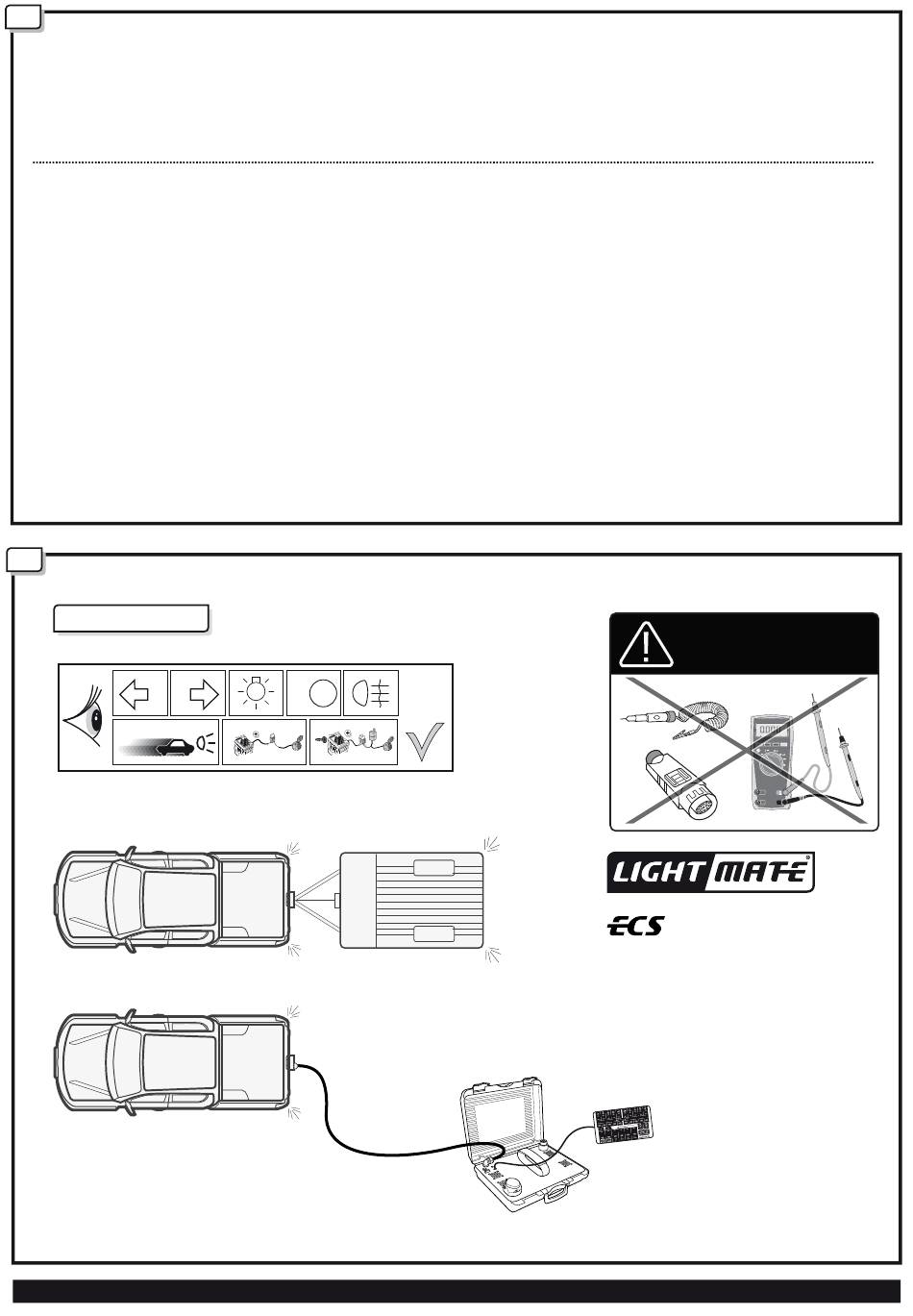

Functional test

L R
Reverse
© ECS Electronics B.V.
54
STOP
30+ 15+
WARNING
0 Manual Range 6
+
HOLD MINMAX RANGE
mV
Hz V
V
Hz
OFF
400
mA V
10A COM
part no.
LIGHTMATE II
LIGHTMATE III
Page 8 IS-017-ZZ / 070721NN
