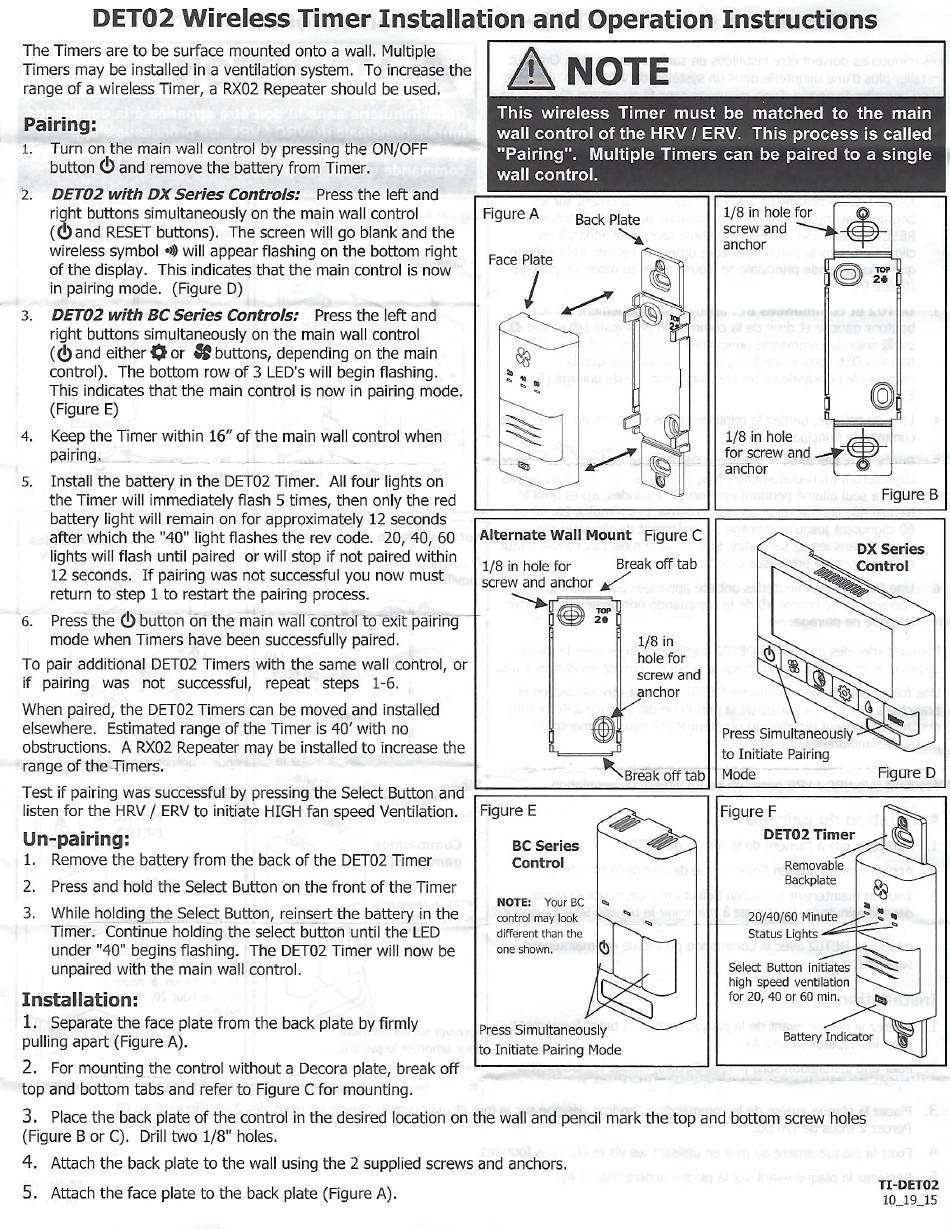

DET02 Wireless
The Timers are to be surface mounted onto a wall. Multiple
Timers may be installed in a ventilation system. To increase the
range of a wireless Timer, a RX02 Repeater should be used.
Pairing:
Turn on the main wall control by pressing the ON/OFF
1.
buttond) andremove thebattery fromTimer.
DET02 with DXSeries
2.
right buttons simultaneously
(d) andRESET b uttons). Thescreenwill go blankandthe
wireless symbol •j will appear flashing on the bottom right
of the display. This indicates that the main control is now
in pairing mode. (Figure D)
DET02 with BC Series
3.
right buttons simultaneously on the main wall control
(Oand either Oor $ buttons, dependingon the main
control). The bottom row of 3 LED's will begin flashing.
This indicates that the main control is now in pairing mode.
(Figure E)
Keep the Timer within 16" of the main wall control when
4.
pairing,
Install the battery in the DET02 Timer.
5.
the Timer will immediately flash 5 times, then only the red
battery light will remain on for approximately
after which the "40" light flashes the rev code. 20, 40, 60
lights will flash until paired or will stop if not paired within
12 seconds. If pairing was not successful you now must
return to step 1 to restart the pairing process.
s Pres the d) buttonon the mainwalltdhtro[to exit pairing
6.
mode when Timers have been successfully paired.
To pair additional DET02 Timers with the same wall control,
if pairing was not successful,
When paired, the DET02 Timers can be moved and installed
elsewhere. Estimated range of the Timer is 40' with no
obstructions. A Repeater may be installed to increase the
range of theÄimers.
Test if pairing was successful by pressing the Select Button and
listen for the HRV / ERVto initiate HIGH fan speed Ventilation.
Un-pairing:
1. Remove the battery from the back of the DET02 Timer
2. Press and hold the Select
3. While holding the Select Button, reinsert the battery in the
Timer. Continue holding the select button until the LED
under "40" begins flashing. The DET02 Timer will now be
unpaired with the main wall control.
Installation:
1. Separatethe face platefrom the back plate by firmly
pulling apart (Figure A).
2. For mountingthe control without a Decoraplate, breakoff
top and bottom tabs and refer to Figure C for mounting.
3. Plac e the backplateof the controlinthe desired locationon the wallandpencilmarkthe top andbottomscrewholes
(Figure B or C). Drill two 1/8" holes.
4. Attach the back plate to the wall using the 2 supplied screws and anchors.
5. Attach the face plate to the back plate (Figure A).
Timer Installation
Controls: Press the left and
on the main wall control
Controls: Press the left and
All four lights on
12 seconds
repeat steps 1-6.
Button on the front of the Timer
and Operation
A NOTE
This wireless Timer
wall control of the HRV I ERV. This process is called
"Pairing". Multiple
wall control.
Figure A
Back Plate
Face Plate
Alternate Wall Mount
Break
1/8 in hole for
screw and anchor
20
or
Break
Figure E
BC Series
Control
NOTE: Your BC
control may look
different than the
one shown.
Press Simultaneously
to Initiate Pairing Mode
Instructions
must be matched
Timers can be paired
1/8 in hole for
screw and
anchor
1/8 in hole
for screw and
anchor
Figure C
off tab
1/8 in
hole for
screw and
anchor
Press Simultaneously
to Initiate Pairing
Modé
off tab
Figure F
DET02 Timer
Removable
Backplate
20/40/60 Minute
Status Lights
Select Button initiates
high speed ventilation
for 20, 40 or 60 min.
Battery Indicator
to the main
to a single
O
Figure B
DX Series
Control
Figure D
Tl-DET02
