Abus SG1660 Instructions D'installation page 7

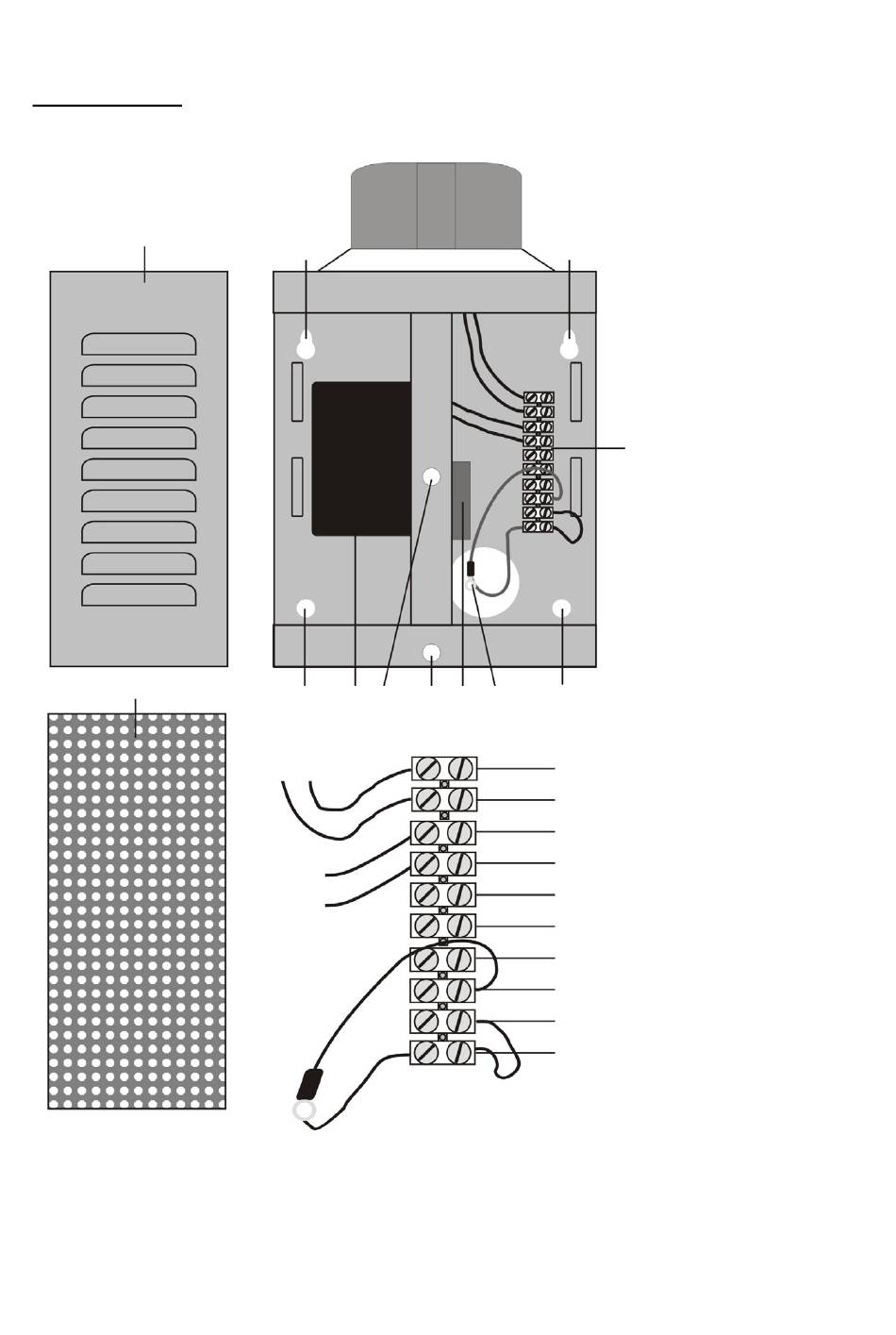

Description
1
9
2
2 3 4 5 6 7
7
2
1 Housing cover
2 Mounting screw
holes
3 Sounder
4 Fastening
Protective cover
5 Fastening
8
Housing cover
6 Cover contact
7 Fastening
Removal contact
8 Screw terminal
block
9 Protective cover
2
Ground contact – flash (SG1660)
12V contact – flash (SG1660)
Ground contact – sounder
12V contact – sounder
Not used
Cover contact – NC
Cover contact – NC
Removal contact (internal)
Removal contact (internal)
Removal contact (internal)
