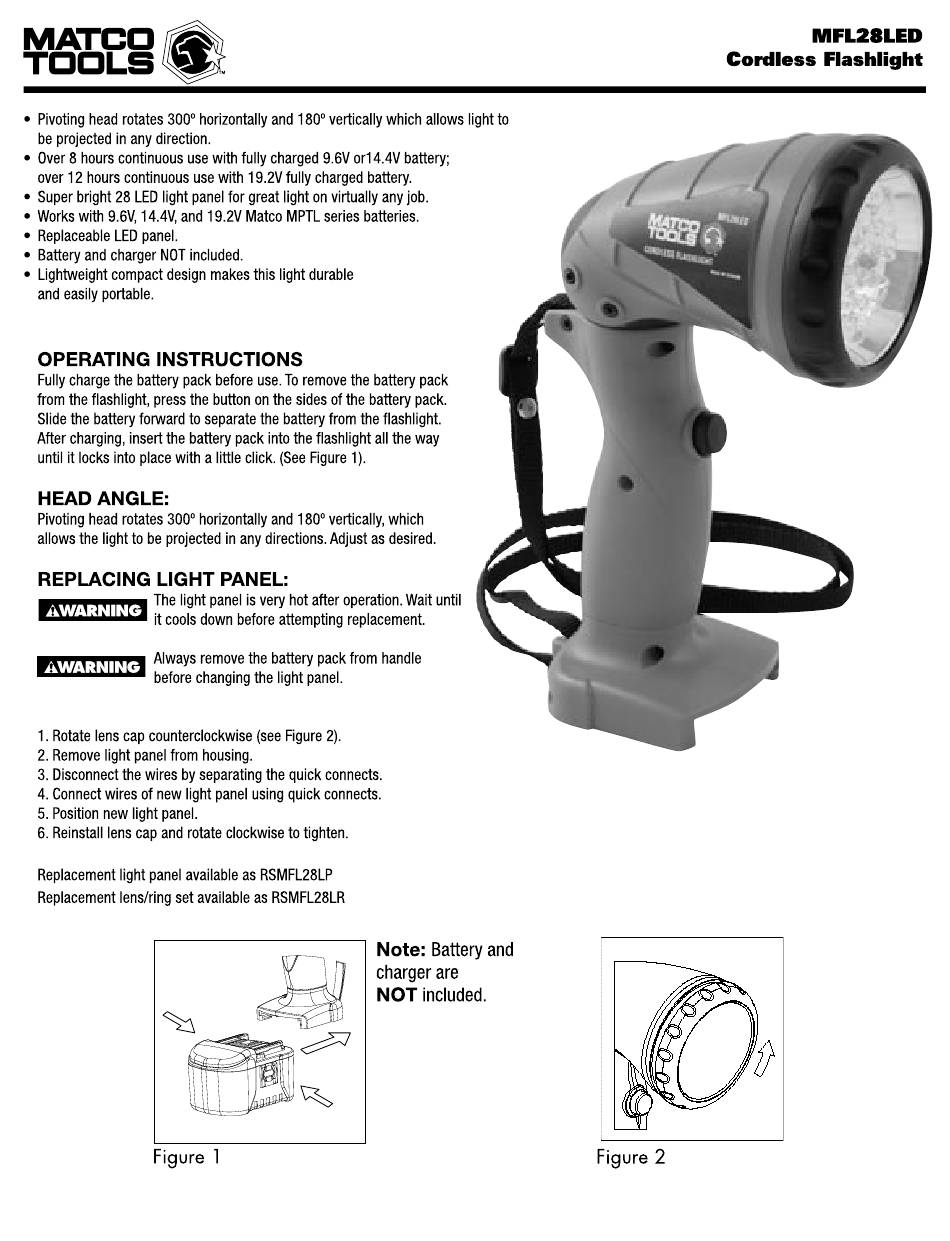

Matco Tools MFL28LED Mode D'emploi

MATCO
TOO'S
• Pivoting headrotates 3000horizontallyand 1800vertically which allows light to
be projectedin anydirection.
• Over8 hourscontinuous usewith fully charged9.6V orl 4.4Vbattery;
over 12 hourscontinuous usewith 19.2Vfully chargedbattery.
• Superbright 28 LEDlight panel for great light on virtually anyjob.
• Works with 9.6V, 14.4V, and 19.2V Matco MPTL series batteries.
• ReplaceableLEDpanel.
• Battery and charger NOTincluded.
• Lightweight compactdesign makesthis light durable
and easilyportable.
OPERATING INSTRUCTIONS
Fully charge the battery pack beforeuse.To removethe battery pack
from the flashlight, pressthe button on the sides of the battery pack.
Slidethe battery forward to separatethe battery from the flashlight.
After charging,insert the battery pack into the flashlight all the way
until it locks into placewith a little click. (SeeFigure1).
HEAD ANGLE:
Pivoting head rotates 3000 horizontally and 1800 vertically, which
allows the light to be projected in any directions. Adjust as desired.
REPLACING LIGHT
The light panel is very hot after operation.Wait until
AWARNING
it cools down beforeattempting replacement.
Always remove the battery pack from handle
AWARNING
beforechangingthe light panel
1. Rotatelens cap counterclockwise(seeFigure2).
2. Removelight panelfrom housing.
3. Disconnectthe wires by separatingthe quick connects.
4. Connectwires of new light panel usingquick connects.
5. Positionnew light panel.
6. Reinstalllens cap and rotateclockwiseto tighten.
Replacementlight panel availableas RSMFL28LP
Replacementlens/ring set availableas RSMFL28LR
Figure 1
MFL28LED
MFL28LED
PANEL:
Note: Battery and
charger are
NOT included.
Figure 2
MFL28LED
Cordless Flashlight
Rev. 12/13/05
Rev. 12/13/05
